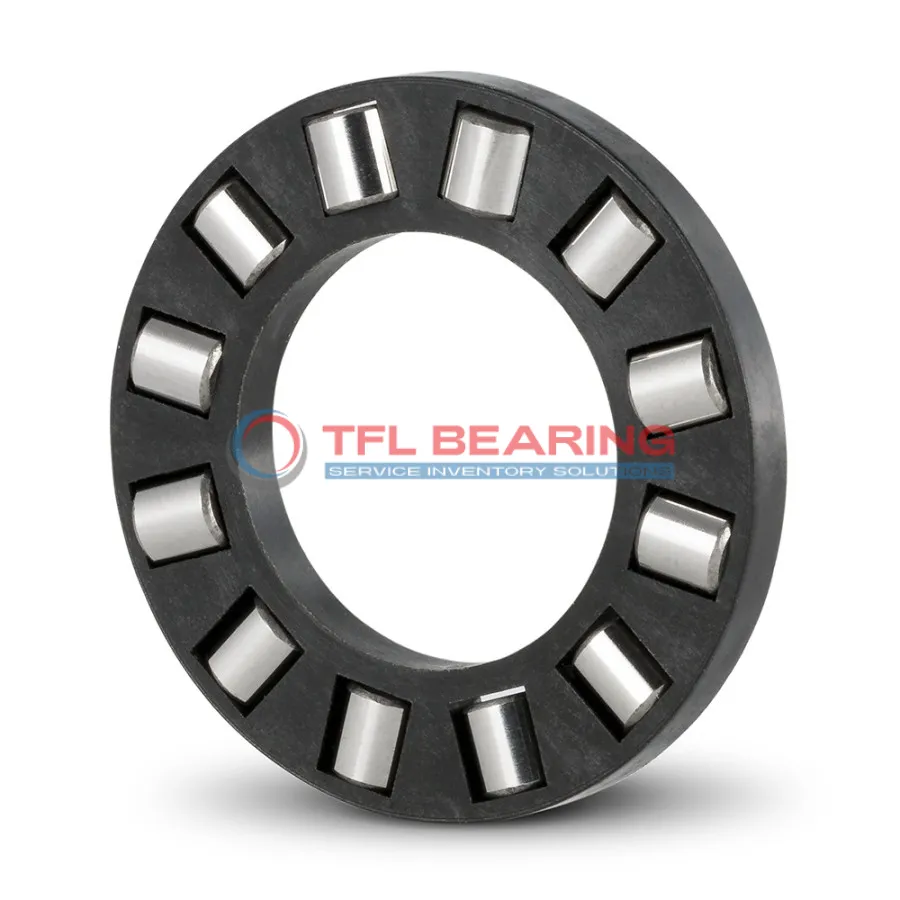

Single Row Cylindrical Roller Thrust Bearings assembly K 81134 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81134 TN

The K 81134 TN is a single-row cylindrical roller thrust bearing, measuring 170mm by 215mm with a 14mm thickness. Made from durable chrome steel, it handles heavy thrust loads up to 64125 lbf and spins smoothly at speeds up to 1600 RPM.

Its glass fibre reinforced PA66 cage ensures quiet operation and long service life, even under high stress. The bearing works reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery, industrial gearboxes, or applications requiring high thrust capacity.

Weighing 0.66kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81134 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 170 mm
  • Bore Dia Tolerance +0.085mm to +0.335mm
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.74mm to -1.46mm
  • Diameter Roller 14 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 176 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 209 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 64125 lbf
  • Static Radial Load 301500 lbf
  • Max Speed 1600 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.66 kg
  • Shaft Washer WS 81134
  • Housing Washer GS 81134

Features

Performance Features of K 81134 TN Bearing

K 81134 TN Bearing is designed with chrome steel rollers, offering high resistance to thrust loads.
Its dynamic radial load capacity reaches 64125 lbf, making it suitable for heavy-duty applications.

The glass fibre reinforced PA66 cage ensures smooth operation and reduces wear.
With a maximum speed of 1600 rpm, it maintains efficiency under demanding conditions.

K 81134 TN Bearing operates in temperatures from -30° to 110°C, ensuring versatility.
Its precise dimensions (170 mm x 215 mm x 14 mm) allow for easy integration into various systems.

Application

Industrial Uses of K 81134 TN Bearing
K 81134 TN Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its cylindrical roller design handles high thrust loads efficiently. The glass fibre reinforced cage ensures durability even in demanding industrial environments.

Where Is K 81134 TN Bearing Used?
You’ll often find K 81134 TN Bearing in wind turbines and mining equipment, where its robust construction supports axial loads under extreme conditions. Its metric sizing makes it a versatile choice for global machinery standards.

Built for Heavy-Duty Use: K 81134 TN Bearing
K 81134 TN Bearing excels in applications like steel mills and construction equipment, thanks to its high static and dynamic load ratings. The chrome steel rollers provide reliable performance over long periods.

Automotive vs Aerospace: Applications of K 81134 TN Bearing
In automotive systems, K 81134 TN Bearing is used in heavy-duty transmissions, while in aerospace, it supports landing gear mechanisms. Its temperature range and load capacity make it suitable for both industries.

Perfect Fit for Automation: K 81134 TN Bearing
K 81134 TN Bearing is ideal for automated production lines, where precision and reliability are key. The PA66 cage material reduces friction, ensuring smooth operation in high-speed scenarios.
