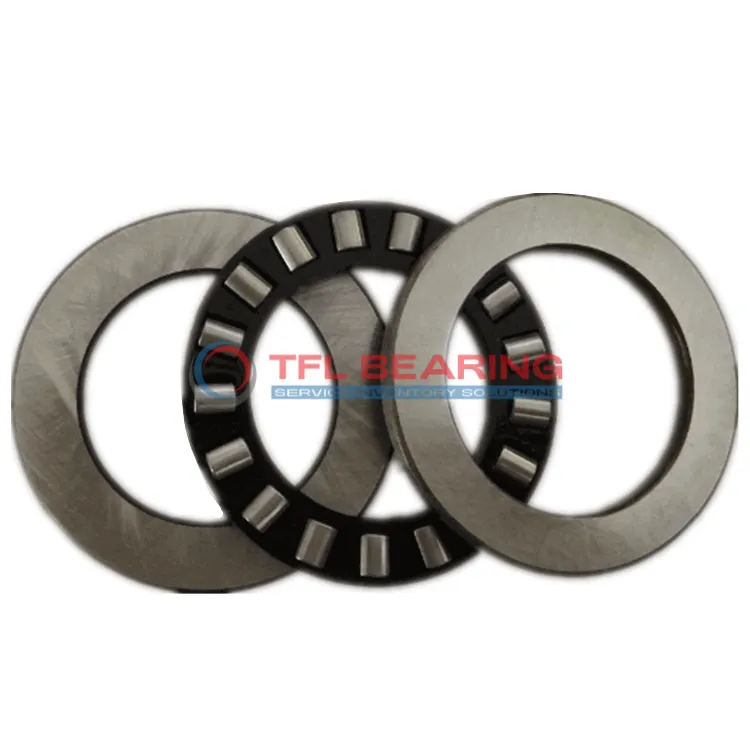

Single Row Cylindrical Roller Thrust Bearings 81214 TN

Single Row Cylindrical Roller Thrust Bearings 81214 TN

The 81214 TN is a single-row cylindrical roller thrust bearing measuring 70mm x 105mm x 27mm, crafted from sturdy chrome steel. It handles heavy thrust loads up to 32850 lbf and operates smoothly at speeds up to 2600 RPM.

Its glass fibre reinforced PA66 cage ensures durability and reduces friction, while the precise tolerances guarantee reliable performance. The bearing works efficiently in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or construction equipment where high thrust loads are common.

Weighing 0.77kg, it offers a robust yet manageable solution for demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81214 TN
  • size 70 mm x 105 mm x 27 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 105 mm
  • Outer Dia Tolerance -0.022mm to 0
  • Width 27 mm
  • Height Tolerance -0.30mm to +0.02mm
  • Outside Diameter Shaft Washer 105 mm
  • Bore Diameter Housing Washer 72 mm
  • Height Shaft Washer 8 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 1 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 32850 lbf
  • Static Radial Load 119250 lbf
  • Max Speed 2600 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.77 kg
  • Roller And Cage Thrust Assembly K 81214 TN
  • Shaft Washer WS 81214
  • Housing Washer GS 81214
Single Row Cylindrical Roller Thrust Bearings 81214 TN dimension drawing
Download DWG Download PDF

Features

Performance Features of 81214 TN Bearing

81214 TN Bearing is crafted with chrome steel washers and rollers, offering robust resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 32,850 lbf, making it suitable for demanding industrial applications.

The glass fibre reinforced PA66 cage ensures smooth operation and reduces friction during high-speed rotations.
With a maximum speed of 2,600 rpm, it delivers reliable performance without compromising durability.

Designed for a temperature range of -30° to 110°C, 81214 TN Bearing performs well in varied environments.
Its precise dimensions and tolerances ensure easy installation and consistent operation.

Application

Industrial Uses of 81214 TN Bearing
81214 TN Bearing is commonly used in heavy machinery like hydraulic presses and industrial gearboxes, where its cylindrical roller design handles high thrust loads efficiently. The glass fibre reinforced cage adds durability in demanding environments.

What Makes 81214 TN Bearing a Preferred Choice?
In automotive applications, 81214 TN Bearing works well in clutch release mechanisms and steering systems due to its precise load distribution. Its metric sizing ensures compatibility with various vehicle designs.

Built for Heavy-Duty Use: 81214 TN Bearing
For automation equipment, 81214 TN Bearing supports robotic arms and conveyor systems, offering reliable performance under continuous operation. The chrome steel construction ensures long service life even in high-speed scenarios.

Light-Duty vs Heavy-Duty: Best Uses for 81214 TN Bearing
In consumer appliances like washing machines, 81214 TN Bearing provides smooth operation for rotating components. Its temperature range makes it suitable for both household and industrial settings.
