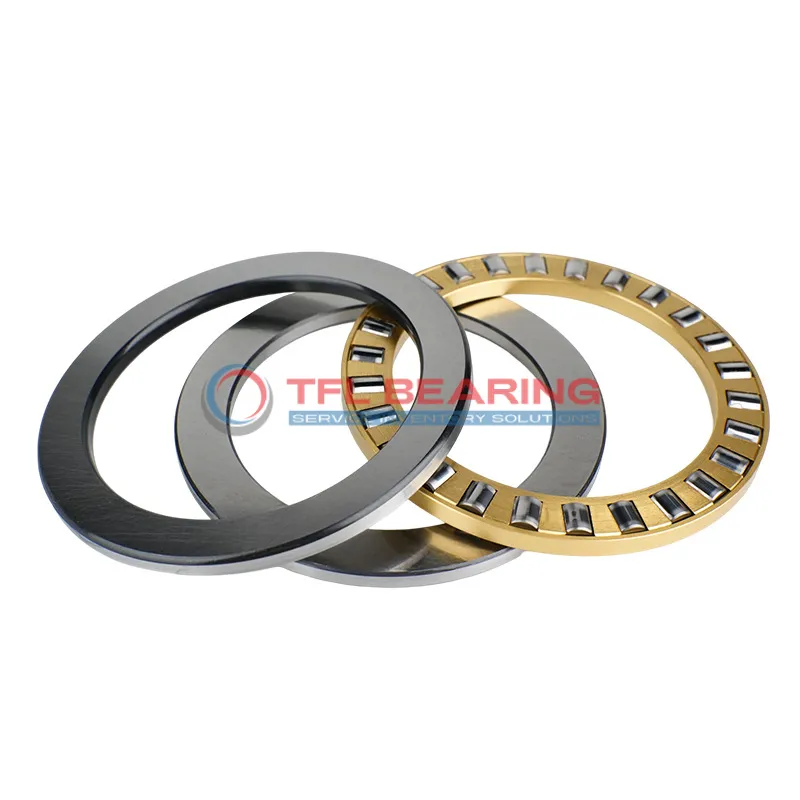

Single Row Cylindrical Roller Thrust Bearings 812/710 M

Single Row Cylindrical Roller Thrust Bearings 812/710 M

The 812/710 M is a single-row cylindrical roller thrust bearing with a large 710mm bore and 950mm outer diameter, built to handle heavy loads. It’s made from durable chrome steel, with a machined brass cage for smooth operation.

This bearing can handle dynamic radial loads up to 1,316,250 lbf and static loads up to 7,200,000 lbf, making it suitable for demanding applications. It operates well at speeds up to 300 RPM and in temperatures from -30°C to 110°C.

The brass cage design reduces friction and wear, while the precise tolerances ensure reliable performance. Its large size (710mm x 950mm x 190mm) makes it ideal for heavy machinery and industrial equipment.

Weighing 413kg, this robust bearing is interchangeable with SKF models. It’s RoHS and REACH compliant, meeting international safety standards for industrial use. Perfect for applications like large presses or mining equipment where high thrust loads are common.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 812/710 M
  • size 710 mm x 950 mm x 190 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 710 mm
  • Bore Dia Tolerance -0.075mm to 0
  • Outer Dia 950 mm
  • Outer Dia Tolerance -0.100mm to 0
  • Width 190 mm
  • Height Tolerance -0.75mm to +0.07mm
  • Outside Diameter Shaft Washer 945 mm
  • Bore Diameter Housing Washer 715 mm
  • Height Shaft Washer 57.5 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 6 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 1316250 lbf
  • Static Radial Load 7200000 lbf
  • Max Speed 300 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 413 kg
  • Shaft Washer IW-812/710
  • Housing Washer OW-812/710
Single Row Cylindrical Roller Thrust Bearings 812/710 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 812/710 M Bearing

812/710 M Bearing is built with chrome steel washers and rollers, offering robust resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 1,316,250 lbf, making it suitable for demanding industrial applications.

The machined brass cage ensures precise roller alignment, reducing friction and enhancing durability.
With a maximum speed of 300 rpm, it delivers reliable performance under high-stress conditions.

812/710 M Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its large dimensions (710 mm x 950 mm x 190 mm) are designed for heavy-duty machinery, ensuring stability and longevity.

Application

Industrial Uses of 812/710 M Bearing
812/710 M Bearing is commonly used in heavy machinery, such as large presses and rolling mills, where its cylindrical roller design efficiently handles high thrust loads. The machined brass cage ensures smooth operation even under demanding conditions.

Where Is 812/710 M Bearing Used?
You’ll often find 812/710 M Bearing in wind turbine gearboxes, where its robust construction supports the high axial loads generated by rotor blades. Its chrome steel rollers provide durability in these high-stress environments.

Built for Heavy-Duty Use: 812/710 M Bearing
812/710 M Bearing excels in mining equipment, such as crushers and conveyors, thanks to its ability to withstand extreme loads. The precise metric sizing ensures compatibility with a range of industrial machinery.

Automotive vs Aerospace: Applications of 812/710 M Bearing
In automotive applications, 812/710 M Bearing is used in large truck transmissions, while in aerospace, it supports landing gear mechanisms. Its high static load capacity makes it reliable in both sectors.

Key Fields for 812/710 M Bearing
812/710 M Bearing is ideal for marine propulsion systems, where its resistance to corrosion and high load capacity are crucial. The brass cage adds an extra layer of reliability in saltwater environments.
