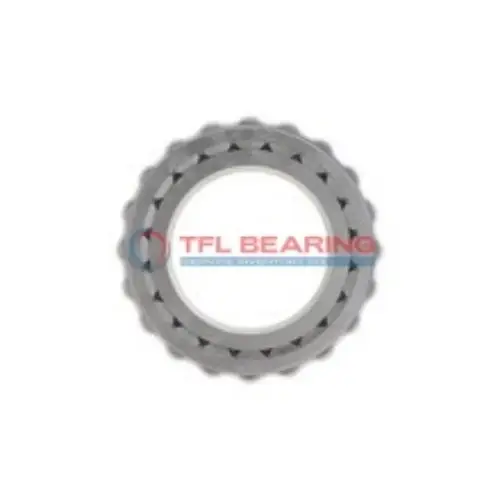

14137AS Single Cones (Imperial)

14137AS Single Cones (Imperial)

The 14137AS is a single-row tapered roller bearing with a 1.375-inch bore, made from sturdy chrome steel for durability. It handles combined loads, with a dynamic radial load capacity of 12300 lbf and static radial load of 13900 lbf.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for applications like automotive or industrial machinery where combined loads are common.

Compliant with RoHS and REACH standards, it offers a balance of strength and reliability. The standard radial clearance can also be adjusted to C3, C4, or C5 for specific needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 14137AS
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 14137AS-14272 , 14137AS-14273 , 14137AS-14274 , 14137AS-14274A , 14137AS-14276 , 14137AS-14277 , 14137AS-14282 , 14137AS-14283 , 14137AS-14284 , 14137AS-14299
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 14000
  • Bore Dia 1.375"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.771"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.02"
  • Cone Frontface Backing Diameter 1.56"
  • Cone Backface Backing Diameter 1.57"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.17"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 12300 lbf
  • Static Radial Load 13900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3180 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 21400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2080 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 5540 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is 14137AS Bearing Engineered for Reliability?

14137AS Bearing is made from chrome steel, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 12,300 lbf, ensuring dependable performance in tough conditions.

The steel cage maintains roller alignment, reducing friction and wear.
With a temperature range of -30° to 110°C, it performs well in various environments.

14137AS Bearing meets ABEC-1 standards, providing consistent precision.
Its standard radial clearance options allow for flexibility in different applications.

Application

Industrial Uses of 14137AS Bearing
14137AS Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 14137AS Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it a preferred choice for American and British vehicle models.

For industrial conveyor systems, 14137AS Bearing’s open design allows for easy lubrication and maintenance, reducing downtime. The steel cage adds strength, making it suitable for high-load scenarios.

Where Is 14137AS Bearing Used?
14137AS Bearing finds its place in mining equipment, where its robust design withstands harsh conditions. The tapered rollers distribute loads evenly, extending the bearing’s lifespan.

In railway applications, 14137AS Bearing supports axle boxes, ensuring smooth operation under heavy loads. Its standard radial clearance options make it adaptable to different precision requirements.
