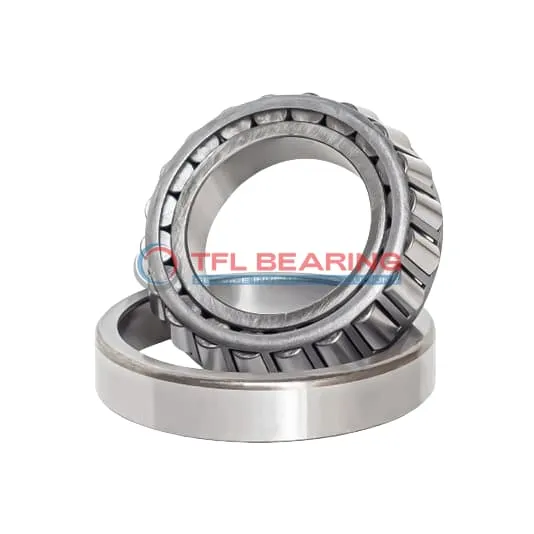

TS (Single Row Tapered Roller Bearings) (Imperial) 567X-563A

TS (Single Row Tapered Roller Bearings) (Imperial) 567X-563A

The 567X-563A is a single-row tapered roller bearing with a 2.875″ bore and 4.875″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf in thrust, making it a versatile choice.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty applications like gearboxes or construction equipment where combined loads are common.

Weighing 3.7 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 567X-563A
  • Brand TFL
  • Interchangeable Timken
  • Size 2.875" x 4.875" x 1.4376"
  • Bore Dia 2.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4376"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.190"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.87"
  • Cone Backface Backing Diameter 3.54"
  • Cup Frontface Backing Diameter 4.72"
  • Cup Backface Backing Diameter 4.37"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 567X
  • Cup Part Number 563A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.7 lb

Features

Why Choose 567X-563A Bearing for Combined Loads?

567X-563A Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 44,100 lbf, making it reliable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

How Is 567X-563A Bearing Engineered for Reliability?

567X-563A Bearing features a tapered roller design, optimised for handling combined loads efficiently.
The chrome steel construction provides durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 7,130 lbf makes it suitable for demanding industrial applications.
The open design allows for easy lubrication, maintaining performance over time.

Built for Durability: 567X-563A Bearing

567X-563A Bearing’s single-row construction ensures stability and strength under heavy loads.
The chrome steel rollers and rings enhance wear resistance, prolonging the bearing’s service life.
With a static radial load capacity of 58,900 lbf, it excels in high-stress environments.
The standard ABEC-1 rating guarantees consistent performance in various applications.

Application

Industrial Uses of 567X-563A Bearing
567X-563A Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is 567X-563A Bearing Used?
You’ll often find 567X-563A Bearing in automotive applications, particularly in wheel hubs and differential systems. Its precise imperial sizing makes it a reliable choice for older or custom vehicle designs.

Built for Heavy-Duty Use: 567X-563A Bearing
567X-563A Bearing excels in industrial gearboxes, where its high dynamic radial load capacity keeps operations smooth. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 567X-563A Bearing
In automotive settings, 567X-563A Bearing supports heavy axles and transmissions, while its precision also suits aerospace landing gear components. The steel cage adds stability under varying temperatures.

Key Fields for 567X-563A Bearing
567X-563A Bearing is ideal for agricultural machinery, such as tractors and harvesters, thanks to its robust construction. The standard radial clearance ensures consistent performance in dusty conditions.
