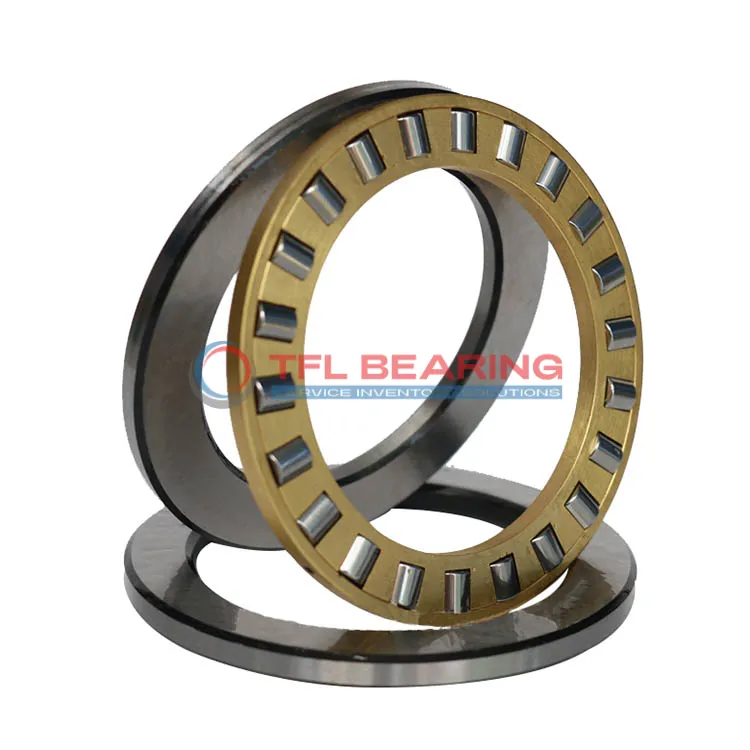

Single Row Cylindrical Roller Thrust Bearings 812/1060 M

Single Row Cylindrical Roller Thrust Bearings 812/1060 M

The 812/1060 M is a large single-row cylindrical roller thrust bearing, measuring 1060mm in bore diameter and 1400mm in outer diameter, with a width of 265mm. Made from durable chrome steel, it handles heavy thrust loads up to 2700000 lbf and operates smoothly at speeds up to 200 RPM.

Its machined brass cage ensures reliable performance, while the robust construction withstands temperatures from -30°C to 110°C. The bearing is interchangeable with SKF models, making it a practical choice for replacements.

Designed for heavy-duty applications, this bearing is ideal for industrial machinery like presses or large gearboxes where high thrust loads are common. Weighing 1150kg, it’s built for stability and long-term use. Compliant with RoHS and REACH standards for safe operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 812/1060 M
  • size 1060 mm x 1400 mm x 265 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 1060 mm
  • Bore Dia Tolerance -0.125mm to 0
  • Outer Dia 1400 mm
  • Outer Dia Tolerance -0.160mm to 0
  • Width 265 mm
  • Height Tolerance -1.40mm to +0.10mm
  • Outside Diameter Shaft Washer 1395 mm
  • Bore Diameter Housing Washer 1063 mm
  • Height Shaft Washer 77.5 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 9.5 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 2700000 lbf
  • Static Radial Load 15975000 lbf
  • Max Speed 200 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 1150 kg
  • Shaft Washer IW-812/1060
  • Housing Washer OW-812/1060
Single Row Cylindrical Roller Thrust Bearings 812/1060 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 812/1060 M Bearing

812/1060 M Bearing is built with chrome steel washers and rollers, offering robust resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 2,700,000 lbf, ensuring dependable operation in high-demand scenarios.

The machined brass cage maintains roller alignment, enhancing durability and reducing wear.
With a maximum speed of 200 rpm, it delivers a balance of strength and efficiency.

812/1060 M Bearing performs reliably in temperatures ranging from -30° to 110°C.
Its precision design ensures smooth operation even under extreme conditions.

The large bore diameter of 1060 mm makes it suitable for heavy industrial applications.
Its chrome steel construction provides excellent resistance to wear and corrosion.

812/1060 M Bearing’s design simplifies installation, reducing downtime and maintenance costs.
The cage structure ensures uniform load distribution, prolonging service life.

Application

Industrial Uses of 812/1060 M Bearing
The 812/1060 M Bearing is commonly used in heavy machinery like hydraulic presses and large gearboxes, where its cylindrical roller design handles substantial thrust loads with ease. Its machined brass cage ensures smooth operation even under high stress.

Where Is 812/1060 M Bearing Used?
You’ll often find the 812/1060 M Bearing in wind turbine systems, supporting the main shaft where durability and load capacity are critical. Its chrome steel construction makes it reliable for long-term use in harsh environments.

Built for Heavy-Duty Use: 812/1060 M Bearing
The 812/1060 M Bearing excels in mining equipment, such as crushers and conveyors, thanks to its robust design and high static load capacity. The large bore diameter (1060 mm) makes it ideal for heavy industrial applications.

Automotive vs Aerospace: Applications of 812/1060 M Bearing
In automotive testing rigs, the 812/1060 M Bearing handles extreme loads during durability tests, while in aerospace, it’s used in landing gear systems for its precision and strength. The metric sizing ensures compatibility with global standards.

Perfect Fit for Automation: 812/1060 M Bearing
The 812/1060 M Bearing is a go-to choice for automated steel mills, where its high dynamic load rating (2,700,000 lbf) ensures consistent performance. The temperature range (-30° to 110°C) suits both hot and cold working conditions.
