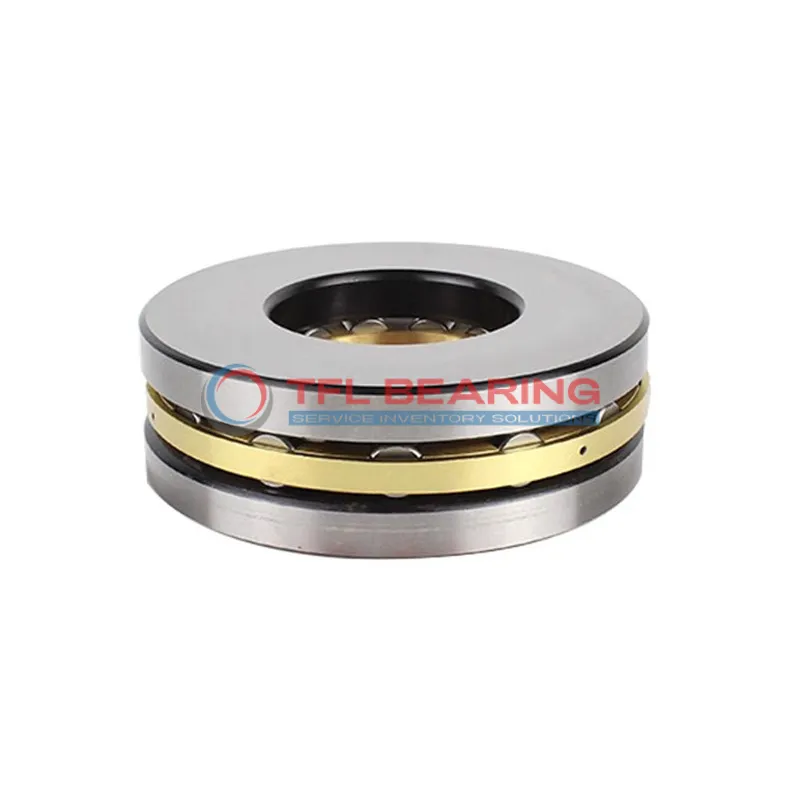

Single Row Cylindrical Roller Thrust Bearings 81196 M

Single Row Cylindrical Roller Thrust Bearings 81196 M

The 81196 M is a single-row cylindrical roller thrust bearing with a large 480mm bore and 580mm outer diameter, built from sturdy chrome steel. It handles heavy thrust loads up to 328500 lbf and operates smoothly at speeds up to 600 RPM.

Its machined brass cage ensures durability, while the precise tolerances provide reliable performance under stress. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial presses or large machinery where high thrust loads are common.

Weighing 43kg, it’s designed for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81196 M
  • size 480 mm x 580 mm x 80 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 480 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 580 mm
  • Outer Dia Tolerance -0.050mm to 0
  • Width 80 mm
  • Height Tolerance -0.50mm to +0.05mm
  • Outside Diameter Shaft Washer 576 mm
  • Bore Diameter Housing Washer 484 mm
  • Height Shaft Washer 24 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 2.1 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 328500 lbf
  • Static Radial Load 1912500 lbf
  • Max Speed 600 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 43 kg
  • Shaft Washer IW-81196
  • Housing Washer OW-81196

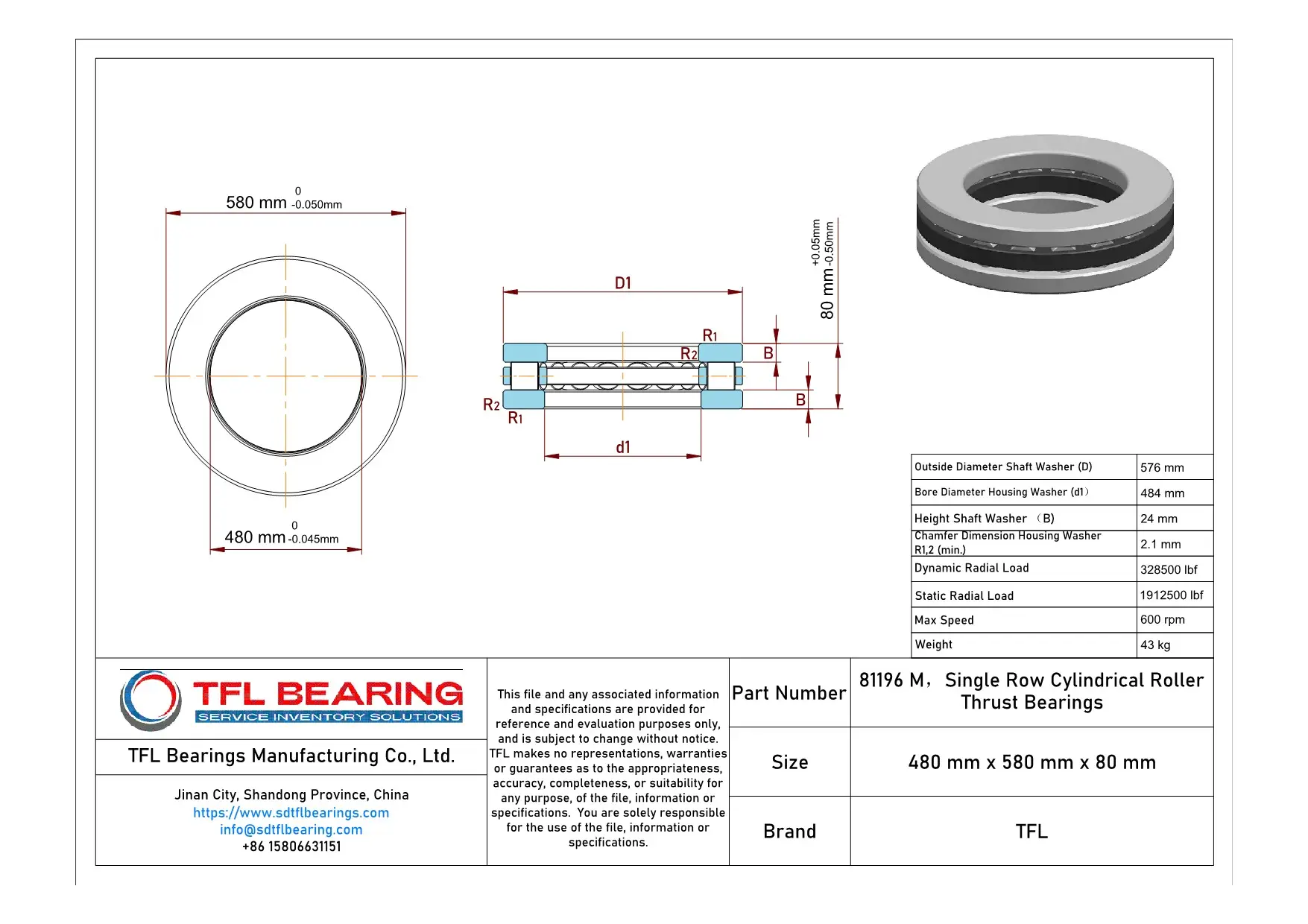

Single Row Cylindrical Roller Thrust Bearings 81196 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 81196 M Bearing

81196 M Bearing is built with chrome steel washers and rollers, offering robust resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 328,500 lbf, making it suitable for demanding industrial applications.

The machined brass cage ensures precise roller alignment, enhancing durability and reducing friction.
With a maximum speed of 600 rpm, it delivers reliable performance under high-stress conditions.

81196 M Bearing operates efficiently in temperatures ranging from -30° to 110°C, ensuring versatility.
Its large bore diameter of 480 mm accommodates heavy-duty shafts, providing stability and strength.

The open design simplifies maintenance, while the chrome steel construction resists wear over time.
This bearing is interchangeable with SKF models, offering flexibility for replacements and upgrades.

Application

Industrial Uses of 81196 M Bearing
81196 M Bearing is commonly used in heavy machinery like hydraulic presses and large gearboxes, where its cylindrical roller design handles significant thrust loads efficiently. The machined brass cage ensures smooth operation even under high stress.

Where Is 81196 M Bearing Used?
You’ll often find 81196 M Bearing in industrial applications such as mining equipment and wind turbines, where its robust construction and large size make it ideal for demanding environments. Its chrome steel rollers provide durability and long service life.

Built for Heavy-Duty Use: 81196 M Bearing
81196 M Bearing excels in applications like steel mills and ship propulsion systems, where its high static and dynamic load ratings are essential. The precise metric dimensions ensure compatibility with a wide range of heavy-duty equipment.

Automotive vs Aerospace: Applications of 81196 M Bearing
In automotive settings, 81196 M Bearing supports large drivetrain components, while in aerospace, it’s used in landing gear systems. Its temperature range and load capacity make it versatile across industries.

Key Fields for 81196 M Bearing
81196 M Bearing is a reliable choice for construction equipment like cranes and bulldozers, where its ability to handle axial loads is critical. The brass cage reduces friction, enhancing performance in tough conditions.
