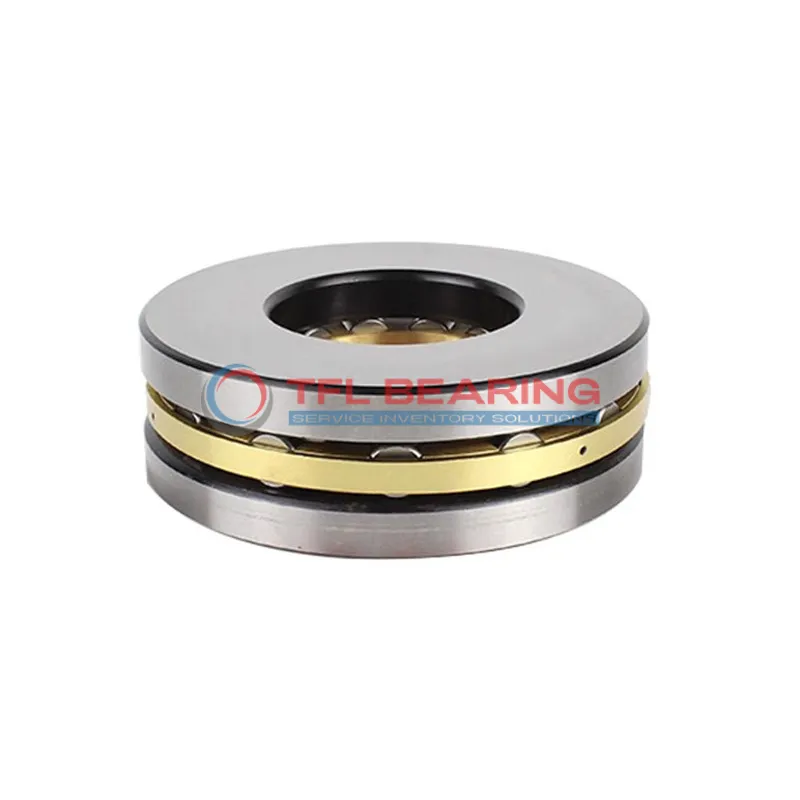

Single Row Cylindrical Roller Thrust Bearings 811/500 M

Single Row Cylindrical Roller Thrust Bearings 811/500 M

The 811/500 M is a single-row cylindrical roller thrust bearing with a 500mm bore and 600mm outer diameter, built to handle heavy loads. Made from chrome steel, it offers strong performance with a dynamic load capacity of 351000 lbf.

Its machined brass cage ensures smooth operation, even at speeds up to 600 RPM. The bearing works reliably in temperatures ranging from -30°C to 110°C.

With a sturdy design and precise tolerances, it’s suitable for heavy machinery or industrial equipment where thrust loads are common. Weighing 46kg, it’s built for durability in demanding conditions.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 811/500 M
  • size 500 mm x 600 mm x 80 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 500 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 600 mm
  • Outer Dia Tolerance -0.050mm to 0
  • Width 80 mm
  • Height Tolerance -0.50mm to +0.05mm
  • Outside Diameter Shaft Washer 595 mm
  • Bore Diameter Housing Washer 505 mm
  • Height Shaft Washer 24 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 2.1 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 351000 lbf
  • Static Radial Load 2092500 lbf
  • Max Speed 600 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 46 kg
  • Shaft Washer IW-811/500
  • Housing Washer OW-811/500
Single Row Cylindrical Roller Thrust Bearings 811/500 M dimension drawing
Download DWG Download PDF

Features

Why Choose 811/500 M Bearing for Precision Tasks?

811/500 M Bearing features a machined brass cage, ensuring precise alignment of cylindrical rollers for smooth thrust load handling.
Its chrome steel construction provides durability, even under high static radial loads of 2092500 lbf.

The bearing’s design allows it to operate efficiently at speeds up to 600 rpm, suitable for heavy-duty applications.
With a temperature range of -30° to 110°C, it performs reliably in varying environmental conditions.

811/500 M Bearing’s tight tolerances ensure minimal play, enhancing precision in demanding industrial settings.
Its interchangeable design with SKF bearings offers flexibility and ease of replacement.

Application

Industrial Uses of 811/500 M Bearing
811/500 M Bearing is commonly used in heavy industrial machinery, such as large presses and rolling mills, where its cylindrical roller design efficiently handles high thrust loads. The machined brass cage ensures smooth operation even under demanding conditions.

What Makes 811/500 M Bearing a Preferred Choice?
In wind turbine applications, 811/500 M Bearing’s robust construction and high load capacity make it ideal for supporting the main shaft. Its chrome steel rollers provide durability, while the precise tolerances ensure reliable performance in harsh environments.

Built for Heavy-Duty Use: 811/500 M Bearing
For mining equipment, 811/500 M Bearing excels in conveyor systems and crushers, where its ability to withstand extreme loads is crucial. The large bore diameter and metric sizing make it compatible with a variety of heavy machinery.

Automotive vs Aerospace: Applications of 811/500 M Bearing
In automotive testing rigs, 811/500 M Bearing handles the high thrust loads generated during durability tests. While in aerospace, its precision and reliability make it suitable for ground support equipment, though its size limits in-flight use.

Where Is 811/500 M Bearing Used?
You’ll often find 811/500 M Bearing in hydraulic systems and large pumps, where its thrust capacity and stability are key. The temperature range of -30° to 110°C ensures it performs well in various climates.
