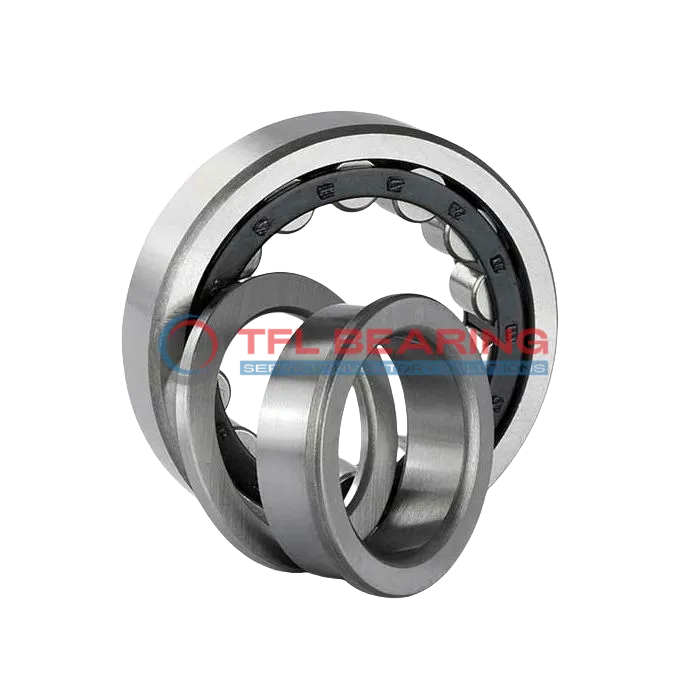

Single Row Cylindrical Roller Bearings With Inner Ring NUP 2308 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NUP 2308 ECP

The NUP 2308 ECP is a single row cylindrical roller bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 29025 lbf and reaches speeds of 10000 RPM.

Its PA66 cage keeps rollers centred for smooth operation, while the open design allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for machinery like pumps or gearboxes where radial and axial loads are present.

Weighing 0.98kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NUP 2308 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 33 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 57.5 mm
  • Chamfer Dimension r1,2(min.) 1.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 29025 lbf
  • Static Radial Load 27000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.98 kg
  • Shoulder Dia Of Outer Ring 75.18 mm
  • Raceway Diameter Of Inner Ring 52 mm
  • Chamfer Dimension Of Loose Flange Ring(r3,4)(min.) 1.5 mm
Single Row Cylindrical Roller Bearings With Inner Ring NUP 2308 ECP dimension drawing
Download DWG Download PDF

Features

Performance Features of NUP 2308 ECP Bearing

NUP 2308 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 29025 lbf, ensuring reliable performance in demanding conditions.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 10,000 rpm, it balances durability and efficiency for various applications.

NUP 2308 ECP Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

Application

Essential Roles of NUP 2308 ECP Bearing
NUP 2308 ECP Bearing is commonly used in industrial machinery, especially in gearboxes and conveyor systems where combined loads are present. Its chrome steel construction ensures durability and smooth operation even under heavy radial and axial forces.

In automotive applications, NUP 2308 ECP Bearing supports components like transmissions and differentials, providing reliable performance. The PA66 cage design helps reduce friction, making it suitable for high-speed operations.

For automation and robotics, NUP 2308 ECP Bearing is a solid choice for robotic arms and precision equipment. Its open design allows for easy lubrication, ensuring long service life in demanding environments.

In medical devices, NUP 2308 ECP Bearing’s precise engineering makes it ideal for imaging equipment and lab instruments. The temperature range of -30° to 110°C ensures consistent performance in various conditions.

Around the home, NUP 2308 ECP Bearing can be found in appliances like washing machines and power tools. Its robust design handles everyday wear and tear with ease.
