TS (Single Row Tapered Roller Bearings) (Imperial) 370A-362X

TS (Single Row Tapered Roller Bearings) (Imperial) 370A-362X

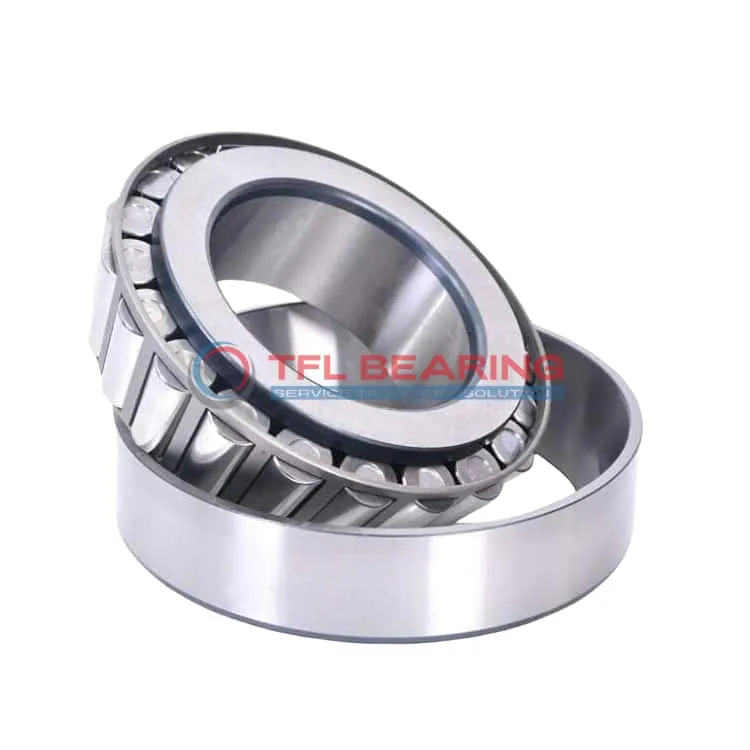

The 370A-362X is a single-row tapered roller bearing with a 2″ bore and 3.5433″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22900 lbf radially and 3250 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 1.3 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 370A-362X
  • Brand TFL
  • Interchangeable Timken
  • Size 2" x 3.5433" x 0.9843"
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5433"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7874"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9843"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.2"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.56"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.15"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 370A
  • Cup Part Number 362X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.3 lb

Features

Performance Features of 370A-362X Bearing

370A-362X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,900 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing wear and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 370A-362X Bearing Engineered for Reliability?

370A-362X Bearing features precise cone and cup dimensions, ensuring smooth operation under heavy loads.
The tapered roller design distributes stress evenly, enhancing durability and reducing friction.
Its standard radial clearance allows for flexibility in different applications.
Chrome steel construction provides excellent resistance to wear and corrosion.

Designed for Durability: 370A-362X Bearing

370A-362X Bearing’s single-row construction simplifies installation while maintaining high load capacity.
The open seal design allows for easy lubrication, ensuring consistent performance.
With a static radial load of 21,500 lbf, it handles demanding industrial applications.
Its ABEC-1 rating ensures reliable precision for various mechanical systems.

Steel vs Ceramic Bearings: Strengths of 370A-362X Bearing

370A-362X Bearing’s chrome steel rollers and rings provide superior strength for heavy-duty use.
The tapered roller design ensures efficient load distribution, reducing stress on components.
Its dynamic thrust rating of 3,250 lbf makes it suitable for combined load applications.
The steel cage offers durability and stability, even in high-speed conditions.

Application

Industrial Uses of 370A-362X Bearing
The 370A-362X Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 370A-362X Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The inch sizing makes it compatible with many North American vehicle models.

For industrial conveyor systems, 370A-362X Bearing’s open design allows for easy lubrication, extending its service life. The steel cage adds strength, making it suitable for high-load scenarios.

Where Is 370A-362X Bearing Used?
You’ll often find 370A-362X Bearing in agricultural machinery, where its tapered rollers manage both radial and thrust loads efficiently. The standard radial clearance ensures smooth operation even under heavy use.

In mining equipment, 370A-362X Bearing’s robust design withstands harsh conditions, while its ABEC-1 rating balances precision and cost-effectiveness. The chrome steel rollers enhance wear resistance.

Built for Heavy-Duty Use: 370A-362X Bearing
370A-362X Bearing excels in gearbox applications, where its single-row tapered rollers distribute loads evenly. The steel cage provides stability, reducing friction during high-speed operations.

For pump systems, 370A-362X Bearing’s inch measurements ensure easy integration, while its temperature range suits both hot and cold environments. Lubrication is straightforward, thanks to its open design.

Automotive vs Industrial: Applications of 370A-362X Bearing
In trucks, 370A-362X Bearing supports axles and transmissions, handling combined loads with ease. Its dynamic radial load capacity makes it a dependable choice for long-haul vehicles.

For factory machinery, 370A-362X Bearing’s tapered rollers reduce vibration, improving operational smoothness. The standard radial clearance adapts well to varying thermal conditions.
