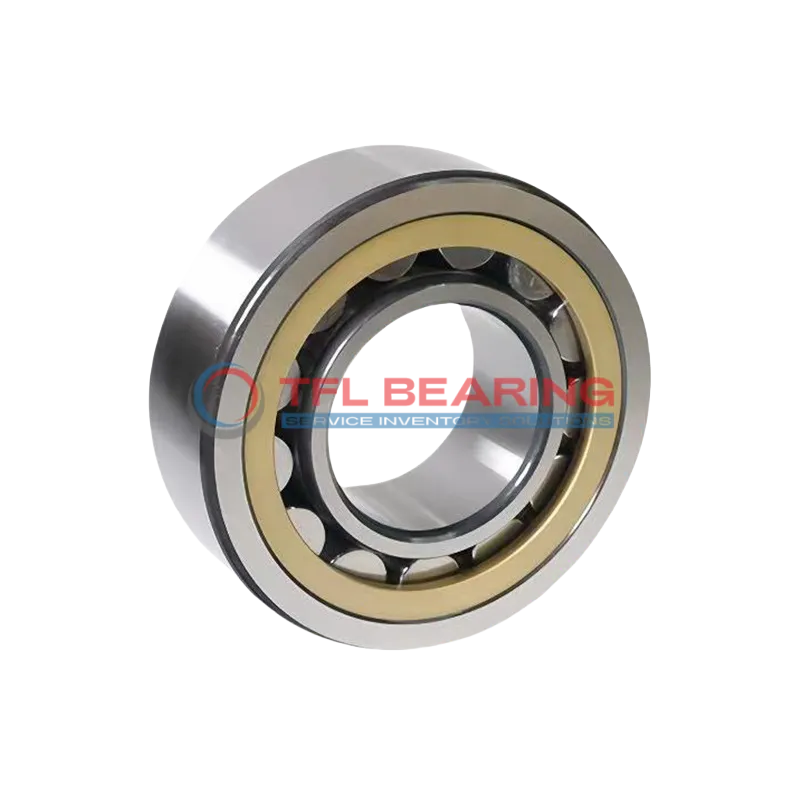

Single Row Cylindrical Roller Bearings With Inner Ring NU 2324 ECML

Brand: TFL Bearing Interchangeable: SKF NU 2324 ECML 120 mm × 260 mm × 86 mm Metric Open
Part number: NU 2324 ECML
Single Row Cylindrical Roller Bearings With Inner Ring NU 2324 ECML
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia120 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia260 mm
Outer Dia Tolerance-0.035mm to 0
Width86 mm
Width Tolerance-0.20mm to 0
Chamfer Dimension r1,2(min.)3 mm
Chamfer Dimension r3,4(min.)3 mm
Shoulder Dia Of Outer Ring218.7 mm
Raceway Diameter Of Inner Ring154 mm
Performance
Dynamic Radial Load205,875 lbf
Static Radial Load234,000 lbf
Temperature Range-30° to 110 °C
Max Speed5,000 rpm
Characteristics
Permissible Axial Displacement(max.)7.2 mm
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined
ConstructionSingle Row
Inner Ring TypeWith Inner Ring
Seal TypeOpen
LubricationGrease, Oil
Weight22.4 kg
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialBrass cage, inner or outer ring centred
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The NU 2324 ECML is a single-row cylindrical roller bearing with a 120mm bore and 260mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 205875 lbf and runs smoothly at speeds up to 5000 RPM.

Its brass cage design ensures durability, while the open structure allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

With a width of 86mm and chamfered edges, it fits securely in tight spaces. Ideal for heavy machinery or industrial equipment where high radial loads are common.

Weighing 22.4kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF bearings.

Features

Performance Features of NU 2324 ECML Bearing

NU 2324 ECML Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 205875 lbf, ensuring robust performance in heavy-duty applications.

The brass cage design keeps the rollers aligned, reducing friction and enhancing durability.
With a maximum speed of 5000 rpm, it delivers reliable efficiency under demanding conditions.

NU 2324 ECML Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, minimising maintenance needs.

The precise chamfer dimensions of 3 mm ensure easy installation and optimal fit.
This bearing is interchangeable with SKF models, providing flexibility for various applications.

Application

Industrial Uses of NU 2324 ECML Bearing
NU 2324 ECML Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at high speeds.

Where Is NU 2324 ECML Bearing Used?
In automotive applications, NU 2324 ECML Bearing fits well in truck transmissions and axle systems, thanks to its robust construction and combined load capacity. Its metric sizing makes it a versatile choice for various vehicle designs.

Built for Heavy-Duty Use: NU 2324 ECML Bearing
NU 2324 ECML Bearing excels in mining equipment, where its chrome steel rollers withstand harsh conditions. The open seal design allows for easy lubrication, extending its service life in demanding environments.

Automotive vs Aerospace: Applications of NU 2324 ECML Bearing
NU 2324 ECML Bearing is a reliable option for automotive drivetrains, while its precision also suits aerospace components like landing gear systems. The high dynamic load rating ensures performance in both sectors.

Essential Roles of NU 2324 ECML Bearing
NU 2324 ECML Bearing supports large pumps and compressors in industrial settings, where its single-row design simplifies maintenance. The temperature range of -30° to 110°C makes it adaptable to various climates.
