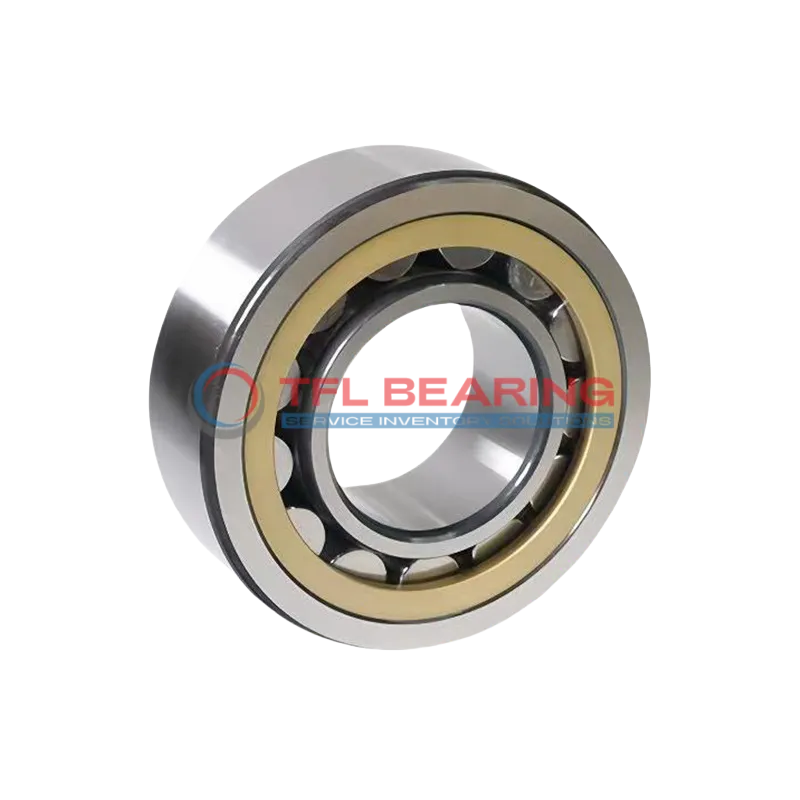

Single Row Cylindrical Roller Bearings With Inner Ring NU 2324 ECM

Brand: TFL Bearing Interchangeable: SKF NU 2324 ECM 120 mm × 260 mm × 86 mm Metric Open
Part number: NU 2324 ECM
Single Row Cylindrical Roller Bearings With Inner Ring NU 2324 ECM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia120 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia260 mm
Outer Dia Tolerance-0.035mm to 0
Width86 mm
Width Tolerance-0.20mm to 0
Chamfer Dimension r1,2(min.)3 mm
Chamfer Dimension r3,4(min.)3 mm
Shoulder Dia Of Outer Ring217.8 mm
Raceway Diameter Of Inner Ring154 mm
Performance
Dynamic Radial Load205,875 lbf
Static Radial Load234,000 lbf
Temperature Range-30° to 110 °C
Max Speed3,000 rpm
Characteristics
Permissible Axial Displacement(max.)7.2 mm
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined
ConstructionSingle Row
Inner Ring TypeWith Inner Ring
Seal TypeOpen
LubricationGrease, Oil
Weight23.3 kg
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialBrass cage, roller centred
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The NU 2324 ECM is a single-row cylindrical roller bearing with a 120mm bore and 260mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 205875 lbf and runs smoothly at speeds up to 3000 RPM.

Its brass cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

With a width of 86mm and chamfered edges, it fits snugly in tight spaces. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for heavy machinery or industrial equipment where high radial loads are common. Compliant with RoHS and REACH standards, it’s a reliable option for various applications. Weighing 23.3kg, it’s built for durability.

Features

Performance Features of NU 2324 ECM Bearing

NU 2324 ECM Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 205875 lbf, ensuring robust performance in heavy-duty applications.

The brass cage keeps the rollers centred, reducing friction and enhancing durability.
With a maximum speed of 3000 rpm, it delivers reliable operation under various conditions.

NU 2324 ECM Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, simplifying maintenance.

Application

Industrial Uses of NU 2324 ECM Bearing
NU 2324 ECM Bearing is commonly used in heavy machinery like industrial gearboxes and large pumps, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at speeds up to 3000 rpm.

Where Is NU 2324 ECM Bearing Used?
In automotive applications, NU 2324 ECM Bearing supports components such as drivetrains and wheel hubs, thanks to its robust chrome steel construction. Its metric sizing makes it a reliable choice for European and Asian vehicle models.

Built for Heavy-Duty Use: NU 2324 ECM Bearing
NU 2324 ECM Bearing excels in construction equipment like cranes and excavators, where its high static radial load capacity ensures durability. The open design allows for easy lubrication, extending its service life in tough conditions.

Automotive vs Aerospace: Applications of NU 2324 ECM Bearing
NU 2324 ECM Bearing is versatile enough for both automotive drivetrains and aerospace landing gear systems. Its combined load handling makes it suitable for scenarios requiring both radial and axial support.

Perfect Fit for Automation: NU 2324 ECM Bearing
In automated production lines, NU 2324 ECM Bearing ensures precise movement in robotic arms and conveyor systems. The brass cage reduces friction, making it ideal for high-speed operations.
