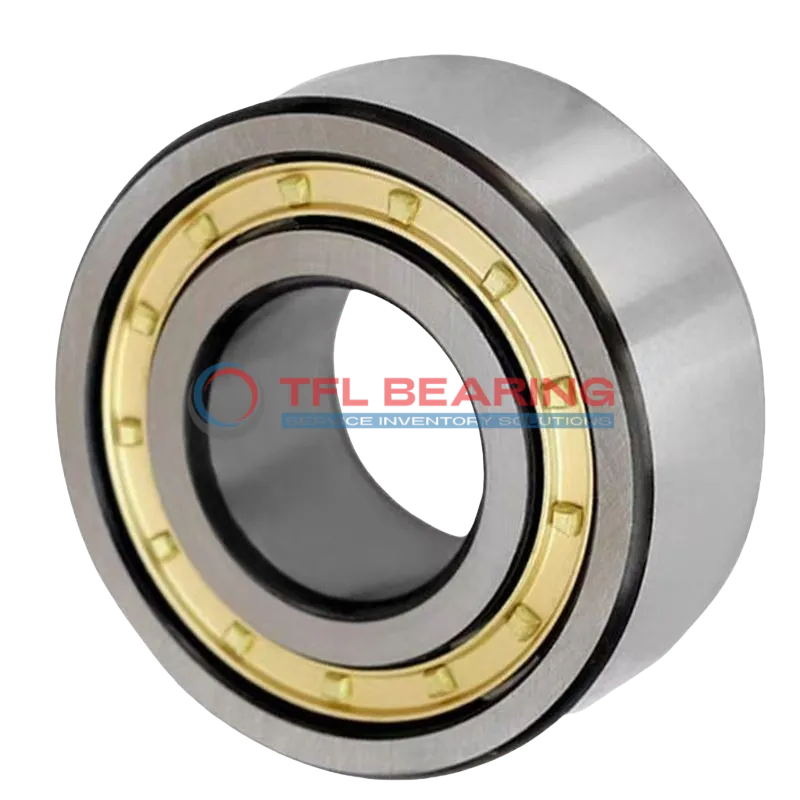

Single Row Cylindrical Roller Bearings With Inner Ring NU 214 ECM

Single Row Cylindrical Roller Bearings With Inner Ring NU 214 ECM

The NU 214 ECM is a single-row cylindrical roller bearing with a 70mm bore and 125mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 30825 lbf and operates smoothly at speeds up to 6000 RPM.

Its brass cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for machinery like pumps or gearboxes where radial and axial loads are present.

Weighing 1.32kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 214 ECM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.15mm to 0
  • Chamfer Dimension r1,2(min.) 1.5 mm
  • Chamfer Dimension r3,4(min.) 1.5 mm
  • Permissible Axial Displacement(max.) 1.2 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 30825 lbf
  • Static Radial Load 30825 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 1.32 kg
  • Shoulder Dia Of Outer Ring 108.3 mm
  • Raceway Diameter Of Inner Ring 83.5 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 214 ECM dimension drawing
Download DWG Download PDF

Features

Performance Features of NU 214 ECM Bearing

NU 214 ECM Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 30825 lbf, ensuring dependable performance in various applications.

The brass cage keeps the rollers centred, reducing friction and enhancing longevity.
With a maximum speed of 6000 rpm, it delivers a balance of durability and efficiency.

NU 214 ECM Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, minimising maintenance needs.

Application

Industrial Uses of NU 214 ECM Bearing
NU 214 ECM Bearing is commonly used in industrial machinery like gearboxes and pumps, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at speeds up to 6000 rpm.

Where Is NU 214 ECM Bearing Used?
In automotive applications, NU 214 ECM Bearing supports components such as transmissions and differentials, thanks to its robust chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: NU 214 ECM Bearing
NU 214 ECM Bearing excels in heavy machinery like conveyor systems, where its high dynamic radial load capacity ensures reliable performance. The open seal design allows for easy lubrication and maintenance.

Automotive vs Industrial: Applications of NU 214 ECM Bearing
NU 214 ECM Bearing is ideal for both automotive and industrial settings, offering durability in gearboxes and conveyor systems alike. Its combined load handling makes it adaptable to diverse operational demands.

Perfect Fit for Automation: NU 214 ECM Bearing
NU 214 ECM Bearing is a reliable choice for automated systems like robotic arms, where precision and high-speed performance are key. The brass cage reduces friction, enhancing longevity in continuous use.
