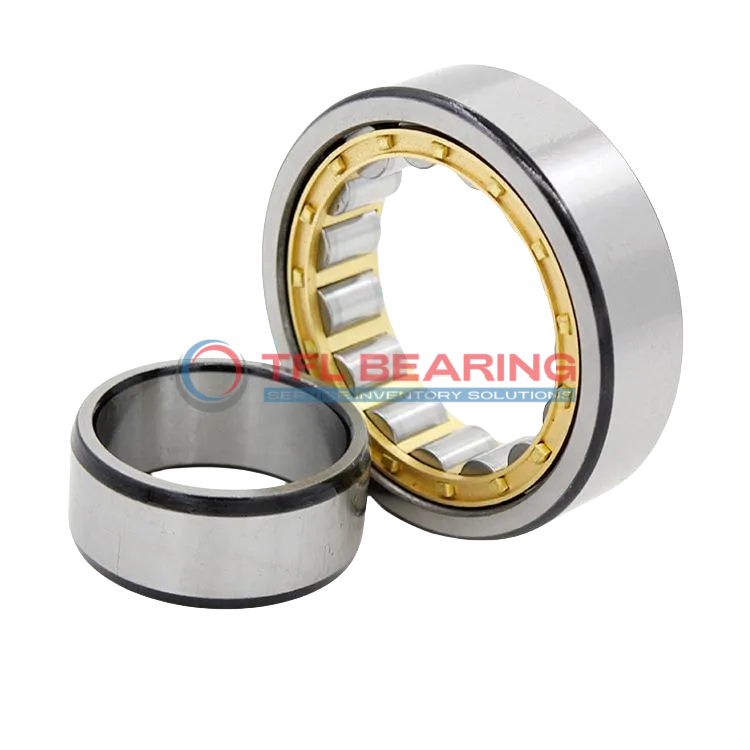

Single Row Cylindrical Roller Bearings With Inner Ring NU 206 ECML

Single Row Cylindrical Roller Bearings With Inner Ring NU 206 ECML

The NU 206 ECML is a single row cylindrical roller bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 9900 lbf and spins smoothly at speeds up to 22000 RPM.

Its brass cage design ensures stability, while the open construction allows for easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a reliable choice for replacements. Ideal for applications like electric motors or gearboxes where high radial loads are common.

Weighing just 0.23kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 206 ECML
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Dimension r1,2(min.) 1 mm
  • Chamfer Dimension r3,4(min.) 0.6 mm
  • Permissible Axial Displacement(max.) 1.3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, inner or outer ring centred
  • Dynamic Radial Load 9900 lbf
  • Static Radial Load 8212 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 22000 rpm
  • Weight 0.23 kg
  • Shoulder Dia Of Outer Ring 52.45 mm
  • Raceway Diameter Of Inner Ring 37.5 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 206 ECML dimension drawing
Download DWG Download PDF

Features

Performance Features of NU 206 ECML Bearing

NU 206 ECML Bearing is crafted with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 9900 lbf, ensuring reliable performance in various applications.

The brass cage design keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 22,000 rpm, it balances durability and efficiency for high-speed operations.

NU 206 ECML Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

Application

Industrial Uses of NU 206 ECML Bearing
NU 206 ECML Bearing is commonly used in industrial machinery, such as gearboxes and pumps, where its cylindrical roller design handles combined loads efficiently. The brass cage ensures smooth operation even at high speeds up to 22000 rpm.

Where Is NU 206 ECML Bearing Used?
In automotive applications, NU 206 ECML Bearing supports components like transmissions and differentials, thanks to its robust chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: NU 206 ECML Bearing
For automation systems, NU 206 ECML Bearing excels in robotic arms and conveyor belts, where precision and durability are key. The open design allows for easy lubrication, extending its service life in demanding environments.

Medical vs Industrial: Where NU 206 ECML Bearing Excels
NU 206 ECML Bearing is ideal for medical imaging devices, offering reliable performance under consistent loads. In industrial settings, it’s equally effective in machinery requiring high radial load capacity.

Essential Roles of NU 206 ECML Bearing
In consumer electronics, NU 206 ECML Bearing can be found in high-performance printers and electric tools. Its temperature range of -30° to 110°C ensures stability in various operating conditions.
