TS (Single Row Tapered Roller Bearings) (Imperial) EE470078X-470130

TS (Single Row Tapered Roller Bearings) (Imperial) EE470078X-470130

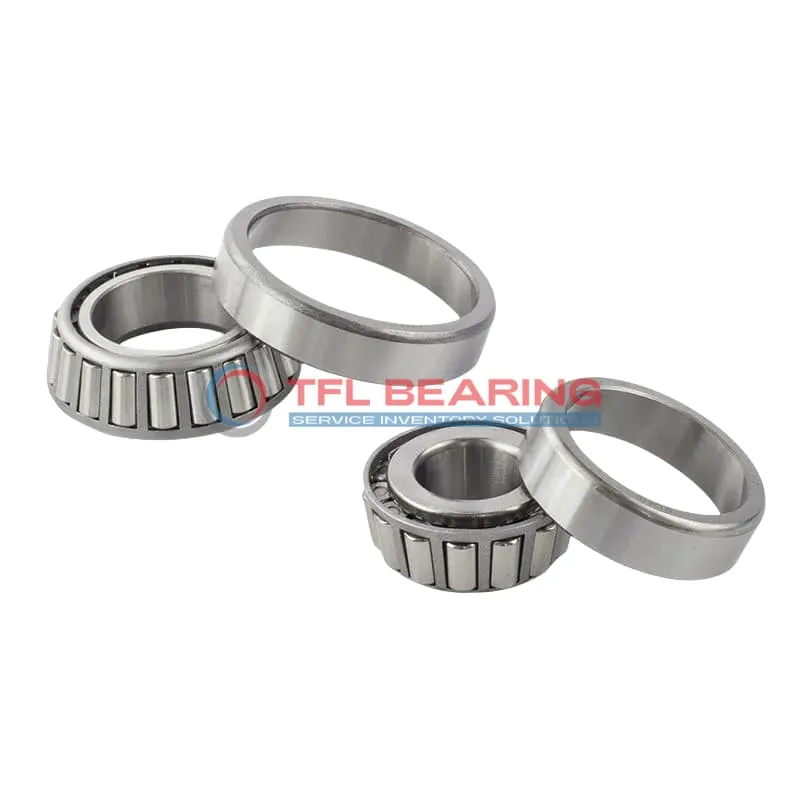

The EE470078X-470130 is a single-row tapered roller bearing with a 7″ bore and 13″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 229,000 lbf radially and 37,100 lbf thrust, making it a robust choice for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where combined loads are common.

Weighing 69.4 lb, it’s built to last and complies with RoHS and REACH standards for safe use. The standard radial clearance ensures versatile performance across various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE470078X-470130
  • Brand TFL
  • Interchangeable Timken
  • Size 7" x 13" x 3.5625"
  • Bore Dia 7"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 13"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.5"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.5625"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.380"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 8.93"
  • Cone Backface Backing Diameter 8.54"
  • Cup Frontface Backing Diameter 12.08"
  • Cup Backface Backing Diameter 11.61"
  • Cage Cone Frontface Clearance 0.01"
  • Cage Cone Backface Clearance 0.51"
  • Effective Center Location -0.86"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number EE470078X
  • Cup Part Number 470130
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 470000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 229000 lbf
  • Static Radial Load 354000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 59200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 37100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 69.400 lb

Features

Performance Features of EE470078X-470130 Bearing

EE470078X-470130 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 229,000 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

EE470078X-470130 Bearing’s standard radial clearance allows for smooth operation under different conditions.
Its ABEC-1 rating ensures consistent performance for industrial applications.

Application

Industrial Uses of EE470078X-470130 Bearing
EE470078X-470130 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is EE470078X-470130 Bearing Used?
In automotive applications, EE470078X-470130 Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under heavy radial and thrust loads. Its imperial sizing makes it a preferred choice for North American vehicle manufacturers.

Built for Heavy-Duty Use: EE470078X-470130 Bearing
EE470078X-470130 Bearing excels in industrial gearboxes and large conveyor systems, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of EE470078X-470130 Bearing
While EE470078X-470130 Bearing is popular in truck axles and heavy-duty trailers, it also finds use in aerospace ground support equipment. Its robust design ensures stability in both high-impact and precision environments.

Essential Roles of EE470078X-470130 Bearing
EE470078X-470130 Bearing plays a key role in agricultural machinery, such as tractors and harvesters, where its ability to handle combined loads keeps operations smooth. The standard radial clearance offers flexibility for various installation needs.
