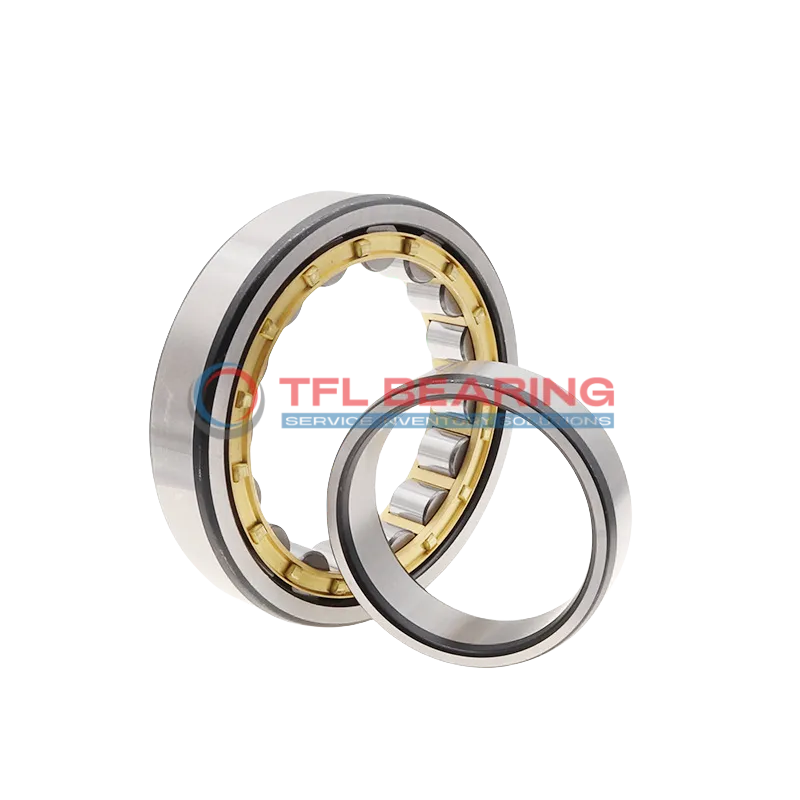

Single Row Cylindrical Roller Bearings With Inner Ring NU 1032 ML

Brand: TFL Bearing Interchangeable: SKF NU 1032 ML 160 mm × 240 mm × 38 mm Metric Open
Part number: NU 1032 ML
Single Row Cylindrical Roller Bearings With Inner Ring NU 1032 ML
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia160 mm
Bore Dia Tolerance-0.025mm to 0
Outer Dia240 mm
Outer Dia Tolerance-0.03mm to 0
Width38 mm
Width Tolerance-0.25mm to 0
Chamfer Dimension r1,2(min.)2.1 mm
Chamfer Dimension r3,4(min.)1.5 mm
Shoulder Dia Of Outer Ring210.8 mm
Raceway Diameter Of Inner Ring180 mm
Performance
Dynamic Radial Load59,625 lbf
Static Radial Load73,125 lbf
Temperature Range-30° to 110 °C
Max Speed5,000 rpm
Characteristics
Permissible Axial Displacement(max.)5.2 mm
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined
ConstructionSingle Row
Inner Ring TypeWith Inner Ring
Seal TypeOpen
LubricationGrease, Oil
Weight5.98 kg
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialBrass cage, inner or outer ring centred
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The NU 1032 ML is a single row cylindrical roller bearing with a 160mm bore and 240mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 59625 lbf and spins smoothly at speeds up to 5000 RPM.

Its brass cage design ensures durability, while the open structure allows for easy lubrication with grease or oil. The bearing operates well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where radial and axial loads are present.

Weighing 5.98kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Features

How Does NU 1032 ML Bearing Handle Combined Loads?

NU 1032 ML Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 59,625 lbf, ensuring reliable performance in demanding conditions.
The brass cage keeps the rollers aligned, reducing friction and extending service life.
With a maximum speed of 5,000 rpm, it balances durability and efficiency for various applications.

Application

Industrial Uses of NU 1032 ML Bearing
NU 1032 ML Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its cylindrical roller design handles combined loads efficiently. The brass cage ensures smooth operation even at high speeds, making it reliable for continuous use.

Where Is NU 1032 ML Bearing Used?
You’ll often find NU 1032 ML Bearing in wind turbines and mining equipment, thanks to its robust chrome steel construction. Its open design allows for easy lubrication, extending service life in demanding environments.

Built for Heavy-Duty Use: NU 1032 ML Bearing
NU 1032 ML Bearing excels in steel mills and paper processing machines, where its high dynamic radial load capacity is essential. The metric dimensions make it a versatile choice for global industrial applications.

Automotive vs Aerospace: Applications of NU 1032 ML Bearing
In automotive applications, NU 1032 ML Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems requiring precision. Its temperature range suits both environments well.

Perfect Fit for Automation: NU 1032 ML Bearing
NU 1032 ML Bearing is ideal for robotic arms and automated assembly lines, where its low friction and high-speed capability enhance performance. The brass cage reduces wear, ensuring long-term reliability.
