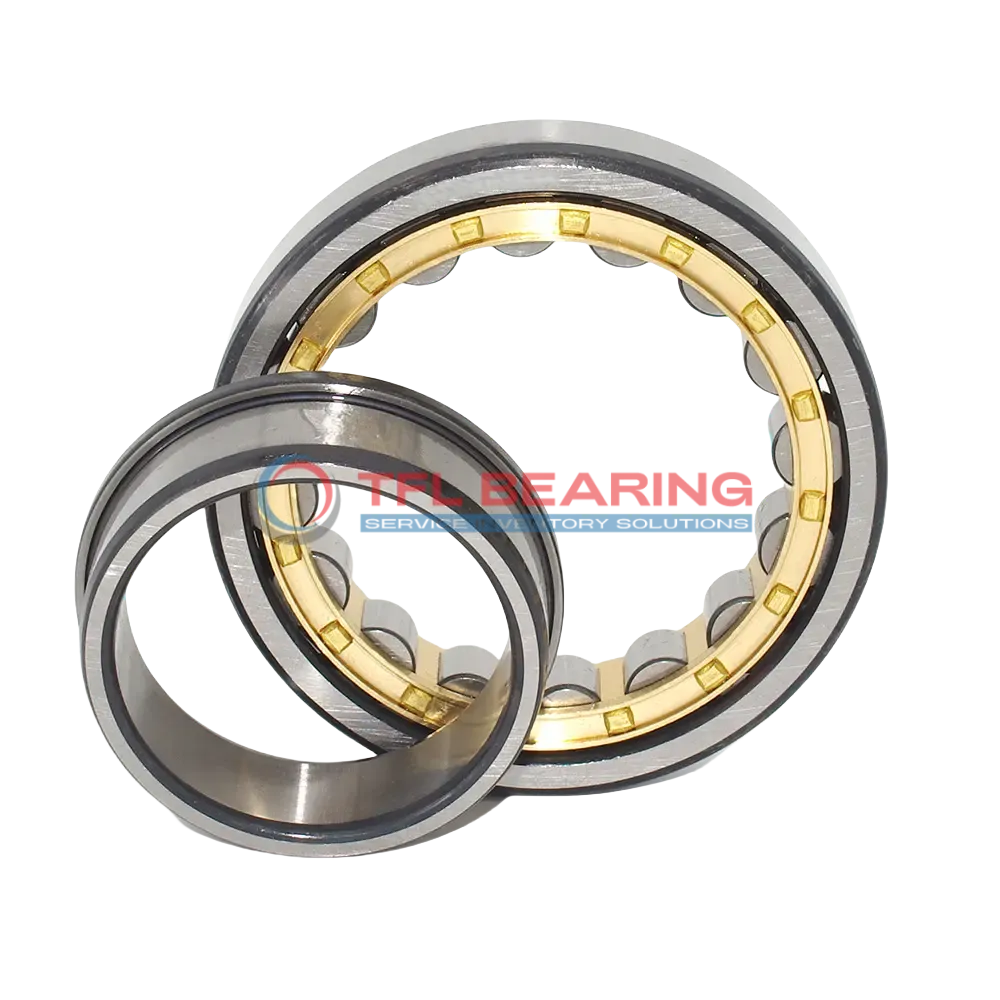

Single Row Cylindrical Roller Bearings With Inner Ring NJ 336 ECM

Single Row Cylindrical Roller Bearings With Inner Ring NJ 336 ECM

The NJ 336 ECM is a single-row cylindrical roller bearing with a 180mm bore and 380mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 229500 lbf and runs smoothly at speeds up to 2000 RPM.

Its brass cage keeps rollers centred for even wear, while the open design allows easy lubrication with grease or oil. The bearing operates reliably in temperatures from -30°C to 110°C.

With a 75mm width and precise tolerances, it fits snugly in heavy-duty applications. Ideal for industrial machinery like gearboxes or compressors where high radial loads are common.

Weighing 43.9kg, it’s built for durability. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJ 336 ECM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 380 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 75 mm
  • Width Tolerance -0.25mm to 0
  • Shoulder Dia Of Inner Ring 250 mm
  • Chamfer Dimension r1,2(min.) 4 mm
  • Chamfer Dimension r3,4(min.) 4 mm
  • Permissible Axial Displacement(max.) 4.2 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 229500 lbf
  • Static Radial Load 290250 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2000 rpm
  • Weight 43.9 kg
  • Shoulder Dia Of Outer Ring 318.85 mm
  • Raceway Diameter Of Inner Ring 231 mm
Single Row Cylindrical Roller Bearings With Inner Ring NJ 336 ECM dimension drawing
Download DWG Download PDF

Features

Performance Features of NJ 336 ECM Bearing

NJ 336 ECM Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 229,500 lbf, making it suitable for heavy-duty applications.
The brass cage keeps the rollers centred, ensuring smooth operation and reduced wear.
With a maximum speed of 2,000 rpm, it delivers reliable performance in various industrial settings.

Application

Industrial Uses of NJ 336 ECM Bearing
NJ 336 ECM Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its cylindrical roller design handles combined loads efficiently. The brass cage ensures smooth operation even at high speeds up to 2000 rpm.

Where Is NJ 336 ECM Bearing Used?
You’ll often find NJ 336 ECM Bearing in wind turbine gearboxes, where its robust chrome steel construction withstands harsh conditions. Its metric sizing makes it a reliable choice for European and Asian equipment manufacturers.

Built for Heavy-Duty Use: NJ 336 ECM Bearing
NJ 336 ECM Bearing excels in steel mill applications, supporting rolling mills with its high dynamic radial load capacity of 229500 lbf. The open design allows for easy lubrication, extending its service life in demanding environments.

Automotive vs Aerospace: Applications of NJ 336 ECM Bearing
In automotive systems, NJ 336 ECM Bearing is used in large truck transmissions, while in aerospace, it supports auxiliary power units. Its temperature range of -30° to 110°C ensures performance in varied climates.

Perfect Fit for Automation: NJ 336 ECM Bearing
NJ 336 ECM Bearing is ideal for robotic assembly lines, where its precise axial displacement control enhances accuracy. The chrome steel rollers provide durability in continuous operation, reducing downtime.
