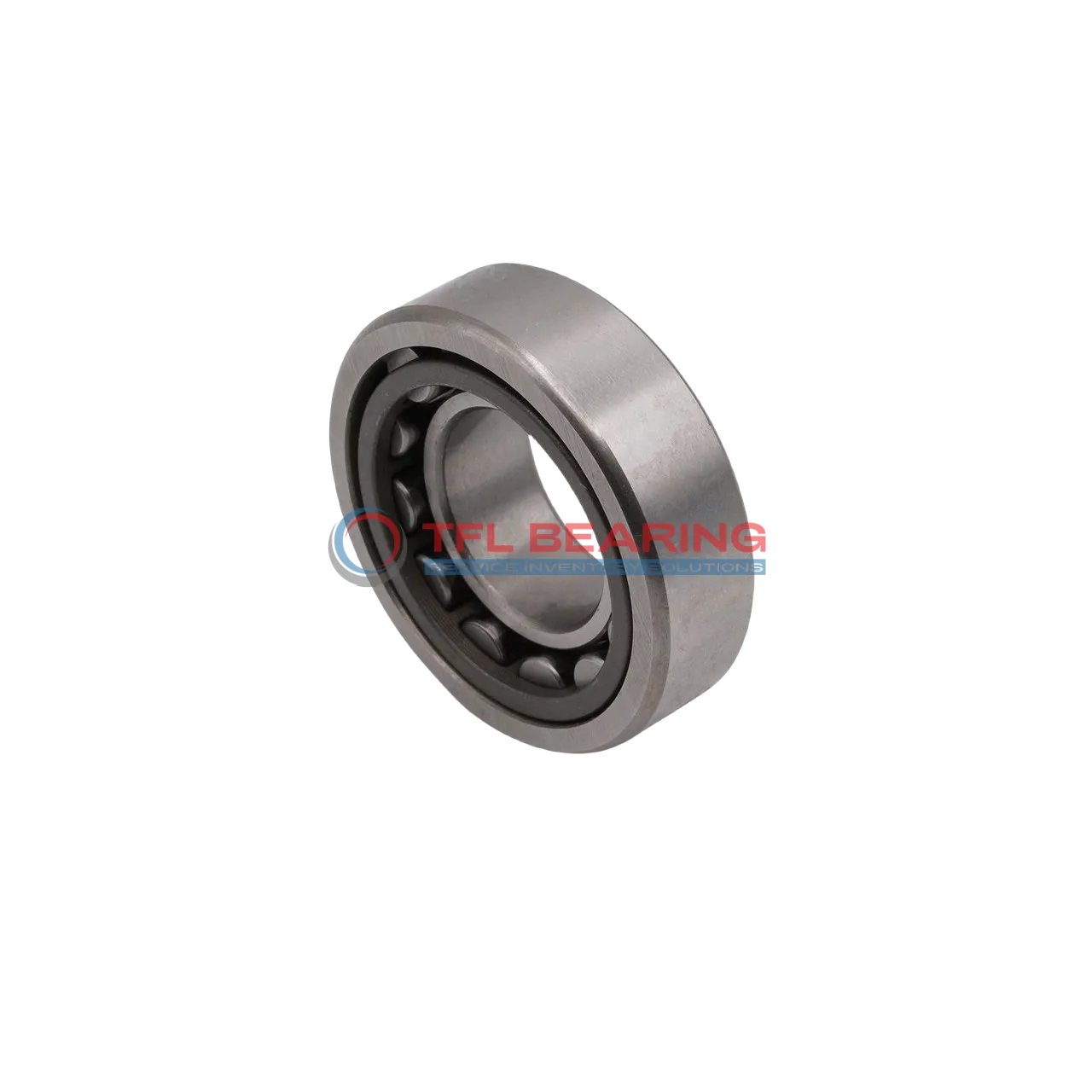

Single Row Cylindrical Roller Bearings With Inner Ring NJ 210 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NJ 210 ECP

The NJ 210 ECP is a single-row cylindrical roller bearing with a 50mm bore and 90mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 16538 lbf and reaches speeds of 9000 RPM.

Its open design allows easy lubrication with grease or oil, while the PA66 cage ensures smooth operation. The bearing works reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or pumps where combined loads are common.

Weighing 0.49kg, it offers a balance of strength and lightweight design. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJ 210 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 64 mm
  • Chamfer Dimension r1,2(min.) 1.1 mm
  • Chamfer Dimension r3,4(min.) 1.1 mm
  • Permissible Axial Displacement(max.) 1.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 16538 lbf
  • Static Radial Load 15638 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9000 rpm
  • Weight 0.49 kg
  • Shoulder Dia Of Outer Ring 77.4 mm
  • Raceway Diameter Of Inner Ring 59.5 mm
Single Row Cylindrical Roller Bearings With Inner Ring NJ 210 ECP dimension drawing
Download DWG Download PDF

Features

How Does NJ 210 ECP Bearing Handle Combined Loads?

NJ 210 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 16538 lbf, ensuring reliable performance in demanding conditions.
The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 9000 rpm, it balances durability and efficiency for various applications.

Application

Industrial Uses of NJ 210 ECP Bearing
NJ 210 ECP Bearing is commonly used in heavy machinery like gearboxes and pumps, where its cylindrical roller design handles combined loads efficiently. The chrome steel construction ensures durability in demanding industrial environments.

Where Is NJ 210 ECP Bearing Used?
You’ll often find NJ 210 ECP Bearing in automotive transmissions, providing smooth operation under high radial loads. Its PA66 cage also reduces friction, making it ideal for high-speed applications.

Built for Heavy-Duty Use: NJ 210 ECP Bearing
NJ 210 ECP Bearing excels in conveyor systems, thanks to its robust design and ability to handle axial displacement. The open seal type allows for easy lubrication, extending its service life.

Automotive vs Industrial: Applications of NJ 210 ECP Bearing
In automotive settings, NJ 210 ECP Bearing supports wheel hubs and drivetrains, while in industrial gearboxes, it manages heavy radial loads. Its metric sizing ensures compatibility across various equipment types.

Perfect Fit for Automation: NJ 210 ECP Bearing
NJ 210 ECP Bearing is a reliable choice for robotic arms and automated assembly lines, where precision and load capacity are key. The temperature range of -30° to 110°C ensures performance in diverse conditions.
