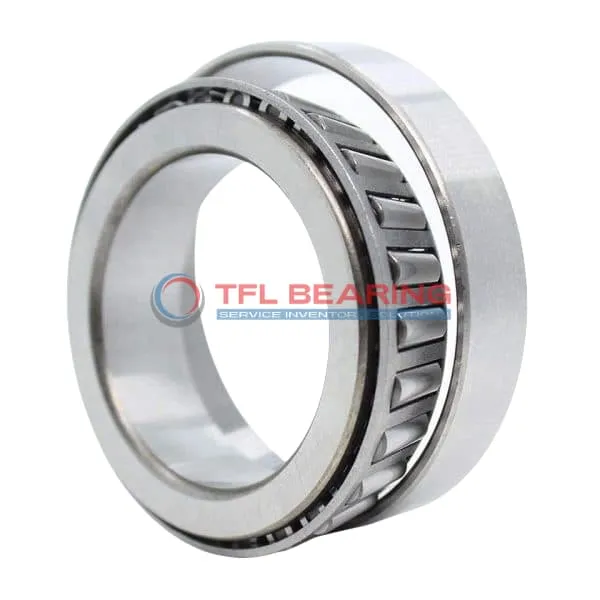

TS (Single Row Tapered Roller Bearings) (Imperial) 1775-1738X

TS (Single Row Tapered Roller Bearings) (Imperial) 1775-1738X

The 1775-1738X is a single-row tapered roller bearing with a 0.75″ bore and 2.25″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 10200 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing is interchangeable with Timken models, making it a practical choice for replacements.

Ideal for applications like vehicle axles or industrial gearboxes where combined radial and thrust loads are common. Weighing just 0.600 lb, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

The standard radial clearance and ABEC-1 rating make it a reliable option for general-purpose machinery. Its tapered roller design ensures even load distribution for longer service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1775-1738X
  • Brand TFL
  • Interchangeable Timken
  • Size 0.75" x 2.25" x 0.7961"
  • Bore Dia 0.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.781"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.691"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7961"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.090"
  • Cone Frontface Backing Diameter 0.98"
  • Cone Backface Backing Diameter 1.06"
  • Cup Frontface Backing Diameter 2.05"
  • Cup Backface Backing Diameter 1.91"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.27"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 1775
  • Cup Part Number 1738X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 1700
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 10200 lbf
  • Static Radial Load 10200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 2650 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1390 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.600 lb

Features

Performance Features of 1775-1738X Bearing

1775-1738X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 10,200 lbf, ensuring reliable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

How Is 1775-1738X Bearing Engineered for Reliability?

1775-1738X Bearing features a single-row tapered roller design, ideal for handling both radial and thrust loads.
The chrome steel construction enhances durability, while the standard radial clearance ensures smooth operation.
Its effective centre location of -0.27″ provides stability under heavy loads.
Lubrication is required to maintain optimal performance over time.

Built for Durability: 1775-1738X Bearing

1775-1738X Bearing’s chrome steel components resist wear, making it suitable for demanding applications.
The tapered roller design distributes loads evenly, reducing stress on individual components.
With a static radial load capacity of 10,200 lbf, it offers reliable support.
Its ABEC-1 rating ensures consistent precision in operation.

Steel vs Ceramic Bearings: Strengths of 1775-1738X Bearing

1775-1738X Bearing uses chrome steel for both rollers and rings, providing excellent strength and durability.
The steel cage ensures proper roller alignment, enhancing performance under combined loads.
Its dynamic thrust rating of 1,390 lbf makes it versatile for various applications.
The standard radial clearance allows for smooth operation in most conditions.

Application

Industrial Uses of 1775-1738X Bearing
The 1775-1738X Bearing is commonly used in heavy machinery like conveyor systems, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability in demanding industrial environments.

What Makes 1775-1738X Bearing a Preferred Choice?
In automotive applications, 1775-1738X Bearing supports wheel hubs and transmissions, thanks to its robust design and precise load handling. The inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 1775-1738X Bearing
For agricultural equipment, 1775-1738X Bearing excels in tractors and harvesters, where its open design allows for easy lubrication. The steel cage adds extra strength for long-term reliability.

Automotive vs Aerospace: Applications of 1775-1738X Bearing
While 1775-1738X Bearing is popular in car suspensions, it also fits aerospace landing gear components due to its high load capacity. The temperature range ensures performance in varied conditions.
