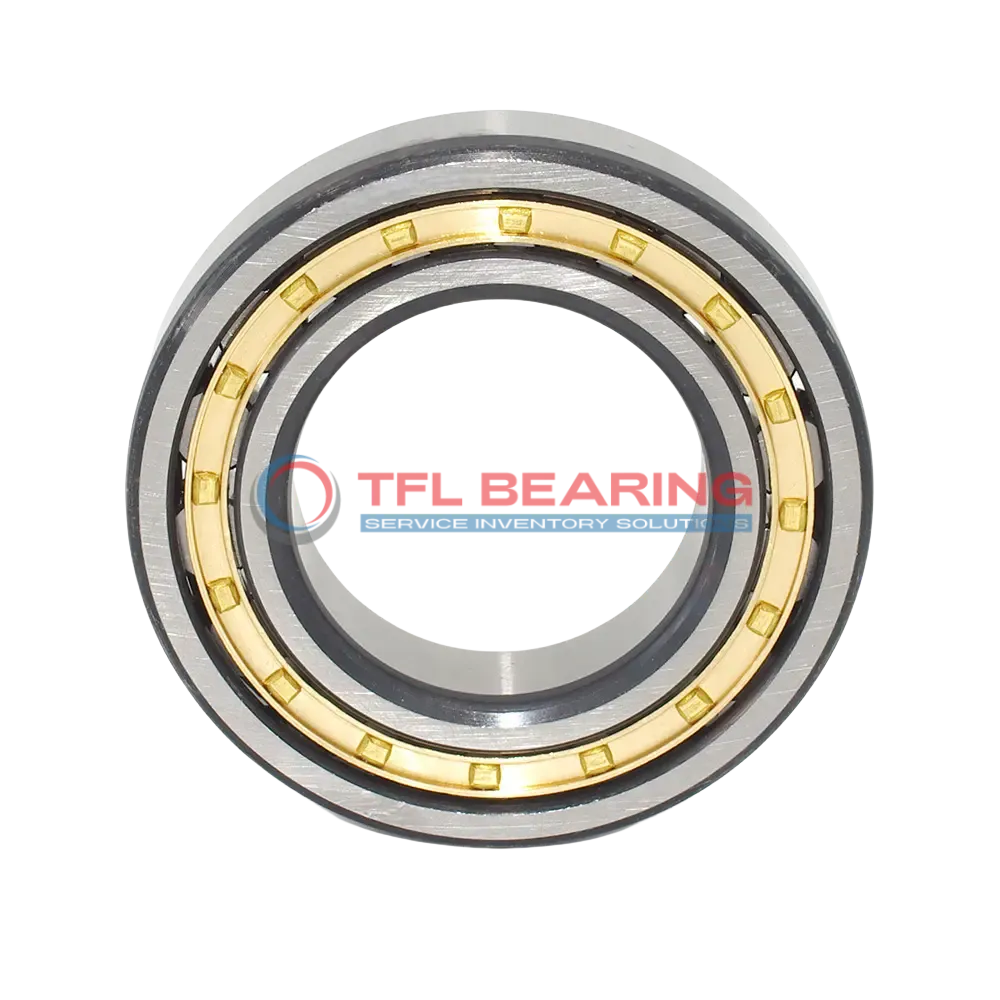

Single Row Cylindrical Roller Bearings With Inner Ring NJ 19/530 ECM/HB1

Single Row Cylindrical Roller Bearings With Inner Ring NJ 19/530 ECM/HB1

The NJ 19/530 ECM/HB1 is a single row cylindrical roller bearing with a 530mm bore and 710mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 362250 lbf and runs smoothly at speeds up to 1000 RPM.

Its brass cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where high radial and axial loads are present.

Weighing 97kg, it’s a robust solution for demanding applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJ 19/530 ECM/HB1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 530 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 710 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 82 mm
  • Width Tolerance -0.50mm to 0
  • Shoulder Dia Of Inner Ring 593 mm
  • Chamfer Dimension r1,2(min.) 5 mm
  • Permissible Axial Displacement(max.) 2 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 362250 lbf
  • Static Radial Load 686250 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1000 rpm
  • Weight 97 kg
  • Shoulder Dia Of Outer Ring 653 mm
  • Raceway Diameter Of Inner Ring 573 mm
Single Row Cylindrical Roller Bearings With Inner Ring NJ 19/530 ECM/HB1 dimension drawing
Download DWG Download PDF

Features

Performance Features of NJ 19/530 ECM/HB1 Bearing

NJ 19/530 ECM/HB1 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 362250 lbf, ensuring dependable performance in heavy-duty applications.

The brass cage keeps the rollers centred, reducing friction and extending operational life.
With a maximum speed of 1000 rpm, it maintains efficiency under demanding conditions.

NJ 19/530 ECM/HB1 Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise tolerances of NJ 19/530 ECM/HB1 Bearing ensure reliable performance in industrial settings.
Its single-row cylindrical design is ideal for applications requiring high radial load capacity.

Application

Industrial Uses of NJ 19/530 ECM/HB1 Bearing
NJ 19/530 ECM/HB1 Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even under demanding conditions.

Where Is NJ 19/530 ECM/HB1 Bearing Used?
In wind turbines, NJ 19/530 ECM/HB1 Bearing supports the main shaft, providing reliable performance in variable weather conditions. Its chrome steel construction offers durability against wear and fatigue.

Perfect Fit for Automation: NJ 19/530 ECM/HB1 Bearing
NJ 19/530 ECM/HB1 Bearing works well in automated production lines, particularly in large conveyor systems. The open design allows for easy lubrication, reducing downtime for maintenance.

Automotive vs Aerospace: Applications of NJ 19/530 ECM/HB1 Bearing
In automotive applications, NJ 19/530 ECM/HB1 Bearing is found in heavy-duty truck transmissions, while in aerospace, it supports landing gear mechanisms. Its combined load capacity makes it versatile for both industries.
