RE Crossed Roller Bearings RE10020

RE Crossed Roller Bearings RE10020

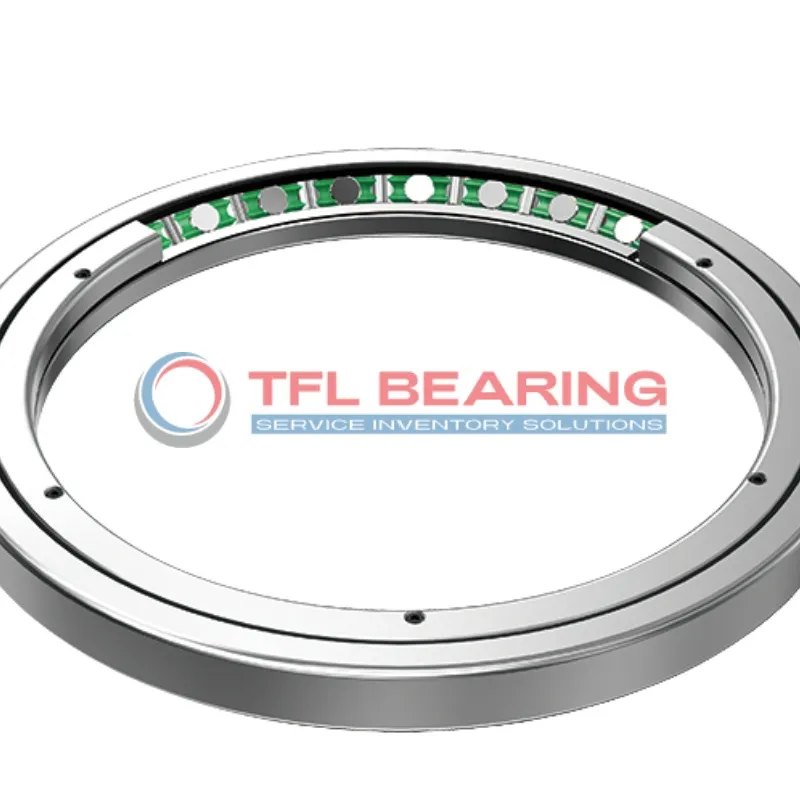

The RE10020 is a crossed roller bearing with a 100mm bore and 150mm outer diameter, crafted from sturdy steel for reliable performance. It handles combined loads up to 33.1 kN and operates smoothly in temperatures from 0°C to 110°C.

Its open design and press-fit shaft mount make installation straightforward, while the steel rollers ensure durability. The bearing includes greasing holes (3.5mm and 1.6mm) for easy maintenance.

With an ABEC5 rating (upgradable to ABEC7/9), it offers precision for demanding applications. Ideal for use in robotics, medical equipment, or industrial machinery where accuracy and load capacity are key.

Compliant with RoHS and REACH standards, this 1.45kg bearing balances strength and precision in a compact 20mm width.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RE10020
  • Brand TFL
  • Size 100 mm x 150 mm x 20 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 100 mm
  • Outer Dia 150 mm
  • Width 20 mm
  • Greasing Hole(a) 3.5 mm
  • Greasing Hole(b) 1.6 mm
  • R(min) 1 mm
  • Shoulder Height Ds(max) 115 mm
  • Shoulder Height Dh(min) 137 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 33.1 kN
  • Basic Load Rating Co 50.9 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.45 Kg

Features

How Does RE10020 Bearing Handle Combined Loads?

RE10020 Bearing features a crossed roller design, ideal for managing combined loads with precision.
Its steel rings and rollers provide a basic load rating of 33.1 kN, ensuring reliable performance.

The open construction allows for easy lubrication, enhancing durability in various applications.
With a temperature range of 0-230°F, RE10020 Bearing performs well in diverse operating conditions.

The press-fit shaft mount type simplifies installation, reducing setup time.
Its ABEC5 rating ensures consistent accuracy, with options for higher precision available.

Application

Industrial Uses of RE10020 Bearing
RE10020 Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The press fit mounting ensures stability during high-precision operations.

In robotics, RE10020 Bearing supports articulated arms, offering smooth rotation under combined loads. Its steel construction handles repetitive movements without compromising accuracy.

For medical imaging devices, RE10020 Bearing’s ABEC5 rating ensures minimal vibration, crucial for clear scans. The open design simplifies lubrication, extending service life in demanding environments.

Automotive testing equipment benefits from RE10020 Bearing’s load capacity, particularly in dynamometers. The metric sizing makes it compatible with European and Asian machinery standards.

In packaging machinery, RE10020 Bearing’s compact width saves space while maintaining performance. The steel rollers withstand continuous operation in high-speed production lines.
