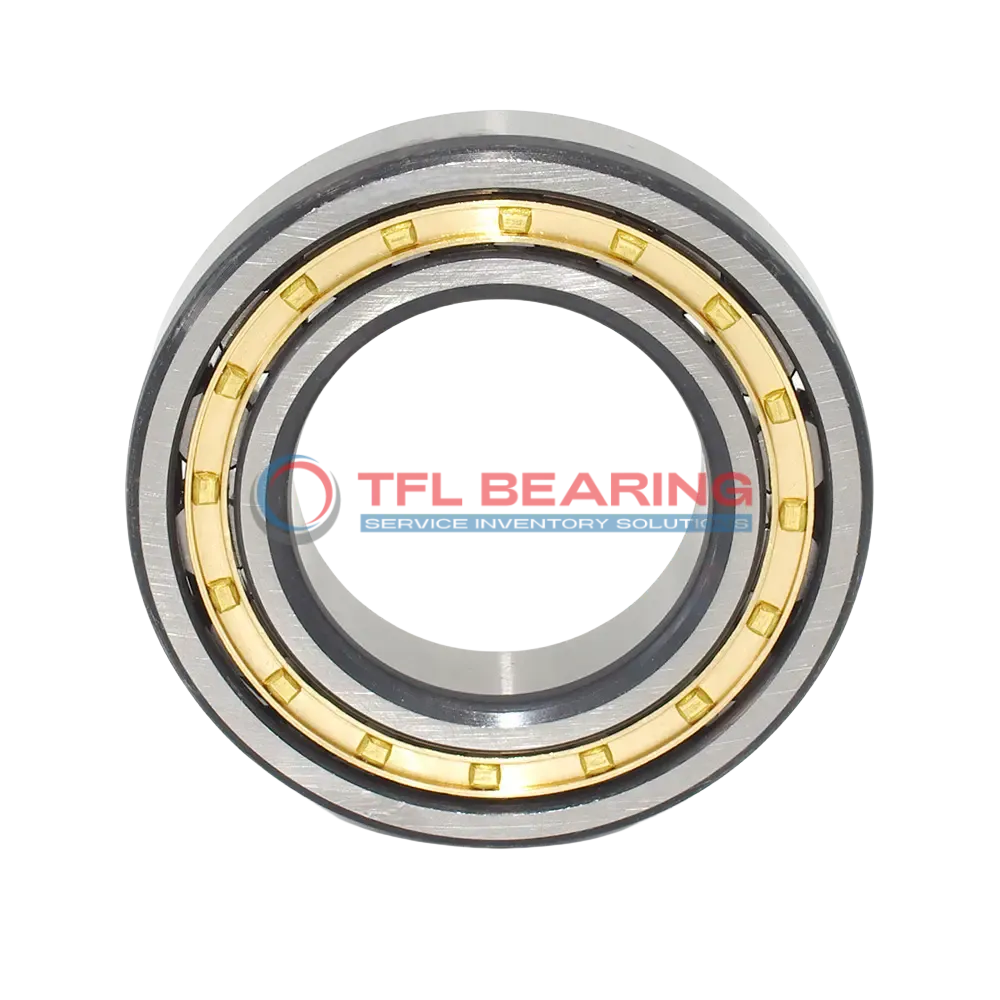

Single Row Cylindrical Roller Bearings With Inner Ring NJ 10/560 MA

Single Row Cylindrical Roller Bearings With Inner Ring NJ 10/560 MA

The NJ 10/560 MA is a single row cylindrical roller bearing with a 560mm bore and 820mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 524,250 lbf and operates smoothly at speeds up to 1000 RPM.

Its brass cage design ensures durability, while the open seal allows for easy lubrication with grease or oil. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large gearboxes where robust performance is needed.

Weighing 210kg, it’s built for strength and longevity. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJ 10/560 MA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 560 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 820 mm
  • Outer Dia Tolerance -0.10mm to 0
  • Width 115 mm
  • Width Tolerance -0.50mm to 0
  • Shoulder Dia Of Inner Ring 648 mm
  • Chamfer Dimension r1,2(min.) 6 mm
  • Permissible Axial Displacement(max.) 12.3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, outer ring centred
  • Dynamic Radial Load 524250 lbf
  • Static Radial Load 956250 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1000 rpm
  • Weight 210 kg
  • Shoulder Dia Of Outer Ring 726 mm
  • Raceway Diameter Of Inner Ring 625 mm
Single Row Cylindrical Roller Bearings With Inner Ring NJ 10/560 MA dimension drawing
Download DWG Download PDF

Features

How Is NJ 10/560 MA Bearing Engineered for Reliability?

NJ 10/560 MA Bearing features chrome steel rings and rollers, ensuring strong resistance to combined loads.
Its dynamic radial load capacity reaches 524,250 lbf, making it suitable for heavy-duty applications.
The brass cage keeps the rollers aligned, reducing friction and extending operational life.
With a maximum speed of 1,000 rpm, it delivers reliable performance in demanding conditions.

Application

Key Fields for NJ 10/560 MA Bearing
NJ 10/560 MA Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even under demanding conditions.

In wind turbine applications, NJ 10/560 MA Bearing provides reliable performance due to its robust construction and ability to withstand combined loads. Its large bore size makes it suitable for connecting main shafts in renewable energy systems.

For mining equipment, NJ 10/560 MA Bearing’s chrome steel rollers offer durability in harsh environments, such as crushers and conveyors. The open seal design allows for easy lubrication, extending service life in dusty conditions.

Automotive manufacturing lines often utilise NJ 10/560 MA Bearing in heavy presses and stamping machines. Its high dynamic load capacity ensures consistent performance during continuous operation.

In paper production machinery, NJ 10/560 MA Bearing supports large rollers that require precise alignment. The metric dimensions make it compatible with European-designed equipment.
