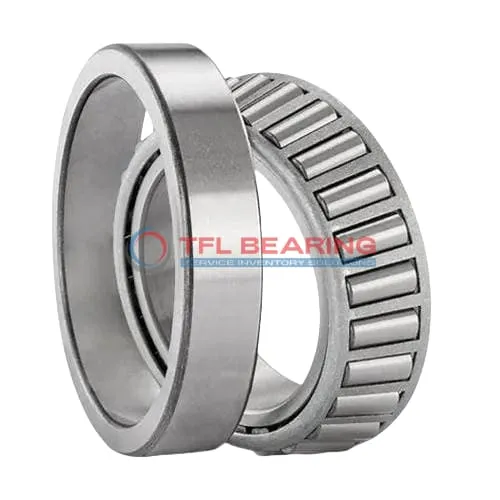

TS (Single Row Tapered Roller Bearings) (Imperial) 367-362

TS (Single Row Tapered Roller Bearings) (Imperial) 367-362

The 367-362 is a single-row tapered roller bearing with a 1.7717″ bore and 3.5433″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22900 lbf radially and 3250 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 1.3 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 367-362
  • Brand TFL
  • Interchangeable Timken
  • Size 1.7717" x 3.5433" x 0.7874"
  • Bore Dia 1.7717"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5433"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7874"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 2.01"
  • Cone Backface Backing Diameter 2.17"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.19"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 367
  • Cup Part Number 362
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.3 lb

Features

Why Choose 367-362 Bearing for Precision Tasks?

367-362 Bearing features a single row tapered roller design, ideal for handling combined loads with precision.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The bearing’s dynamic radial load capacity reaches 22,900 lbf, providing reliable performance under stress.
With a standard radial clearance, it offers flexibility for various operational needs.

367-362 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, enhancing stability and longevity.

Designed for easy lubrication, 367-362 Bearing reduces maintenance requirements.
The open seal type allows for straightforward inspection and servicing.

Application

Industrial Uses of 367-362 Bearing
The 367-362 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.

Where Is 367-362 Bearing Used?
You’ll often find the 367-362 Bearing in automotive applications like wheel hubs and differentials, thanks to its ability to manage both radial and thrust loads. The inch sizing makes it a good fit for American-made vehicles.

Built for Heavy-Duty Use: 367-362 Bearing
In industrial settings, the 367-362 Bearing excels in conveyor systems and gearboxes, where its open design allows for easy lubrication. The steel cage adds extra strength, making it reliable for long-term use.

Automotive vs Aerospace: Applications of 367-362 Bearing
While the 367-362 Bearing is popular in automotive systems, it’s also suited for aerospace applications like landing gear, where precision and load capacity are key. Its temperature range ensures performance in varied conditions.

Key Fields for 367-362 Bearing
The 367-362 Bearing is a go-to choice for mining equipment, where its robust design handles high radial loads. The ABEC-1 rating ensures consistent performance without overcomplicating the design.
