Single Row Cylindrical Roller Bearings With Inner Ring N 326 ECM

Brand: TFL Bearing Interchangeable: SKF N 326 ECM 130 mm × 280 mm × 58 mm Metric Open
Part number: N 326 ECM
Single Row Cylindrical Roller Bearings With Inner Ring N 326 ECM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia130 mm
Bore Dia Tolerance-0.025mm to 0
Outer Dia280 mm
Outer Dia Tolerance-0.035mm to 0
Width58 mm
Width Tolerance-0.25mm to 0
Shoulder Dia Of Inner Ring181 mm
Raceway Diameter Of Outer Ring(E)247 mm
Chamfer Dimension r1,2(min.)4 mm
Chamfer Dimension r3,4(min.)4 mm
Performance
Dynamic Radial Load162,000 lbf
Static Radial Load168,750 lbf
Temperature Range-30° to 110 °C
Max Speed3,000 rpm
Characteristics
Permissible Axial Displacement(max.)3.7 mm
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined
ConstructionSingle Row
Inner Ring TypeWith Inner Ring
Seal TypeOpen
LubricationGrease, Oil
Weight17.9 kg
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialBrass cage, roller centred
Compliance
RoHSCompliant
REACHCompliant

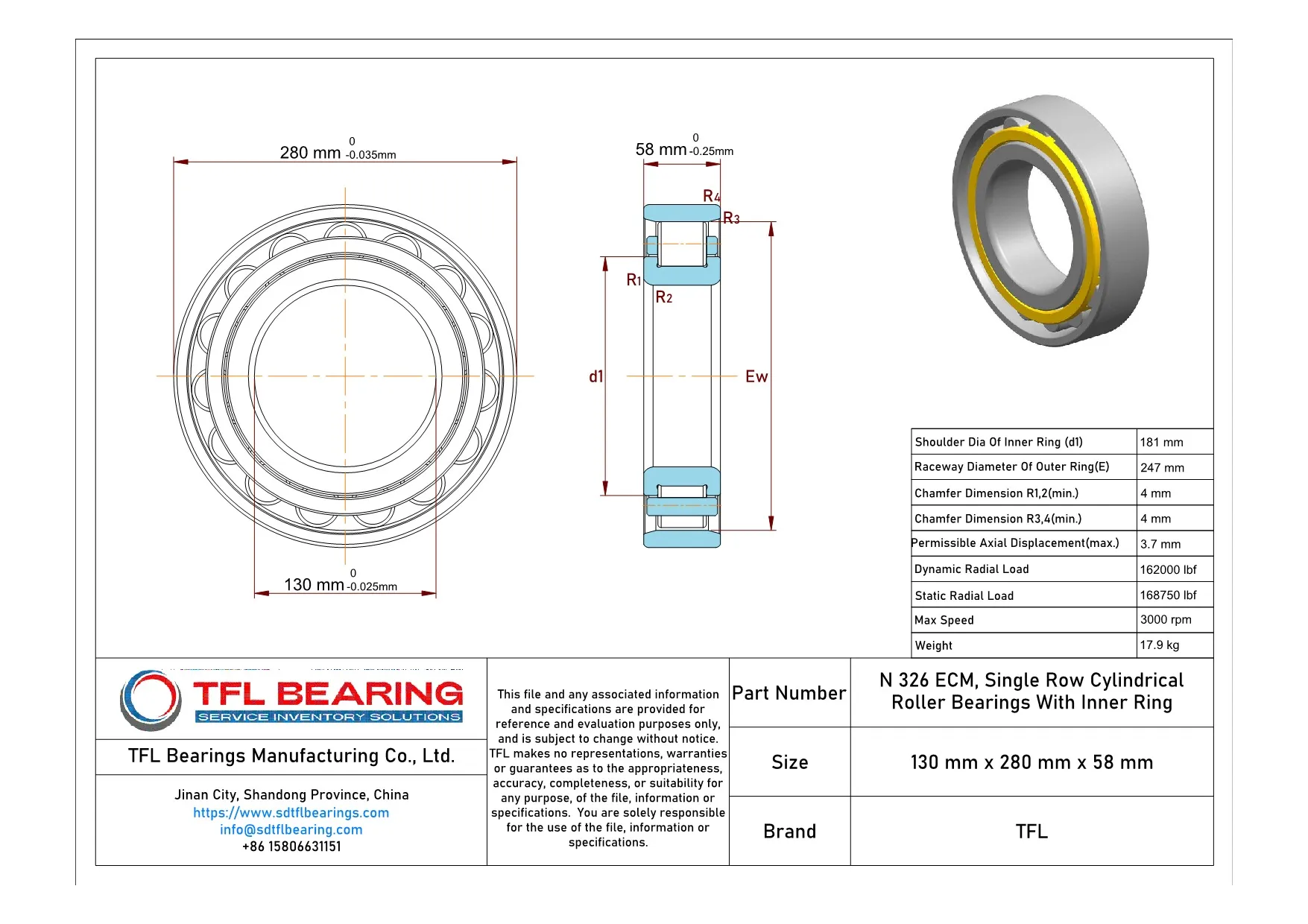

Dimension drawing · click to enlarge

Description

The N 326 ECM is a single row cylindrical roller bearing with a 130mm bore and 280mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 162000 lbf and runs smoothly at speeds up to 3000 RPM.

Its brass cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where radial and axial loads are present.

Weighing 17.9kg, it’s built for durability in demanding environments. Compliant with RoHS and REACH standards for safe and reliable use.

Features

Performance Features of N 326 ECM Bearing

N 326 ECM Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 162,000 lbf, ensuring robust performance in heavy-duty applications.

The brass cage keeps the rollers centred, enhancing stability and reducing wear.
With a maximum speed of 3,000 rpm, it delivers both durability and efficiency.

N 326 ECM Bearing operates smoothly in temperatures from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise chamfer dimensions of 4 mm ensure easy installation and alignment.
This bearing is ideal for applications requiring high radial load capacity and reliable operation.

Application

Industrial Uses of N 326 ECM Bearing
N 326 ECM Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at speeds up to 3000 rpm.

What Makes N 326 ECM Bearing a Preferred Choice?
In automotive applications, N 326 ECM Bearing fits well in truck transmissions and axle systems, thanks to its robust chrome steel construction. Its combined load capacity makes it versatile for both radial and axial forces.

Perfect Fit for Automation: N 326 ECM Bearing
For automated production lines, N 326 ECM Bearing provides reliable performance in robotic arms and conveyor systems. The open seal design allows for easy lubrication, extending service life in continuous operations.

Medical vs Industrial: Where N 326 ECM Bearing Excels
While N 326 ECM Bearing isn’t typically used in medical devices, it shines in industrial settings like paper mills and mining equipment. Its high dynamic load rating ensures durability in demanding environments.

Essential Roles of N 326 ECM Bearing
In wind turbines, N 326 ECM Bearing supports the main shaft, handling extreme loads and variable speeds. The grease or oil lubrication options adapt to different operational conditions.
