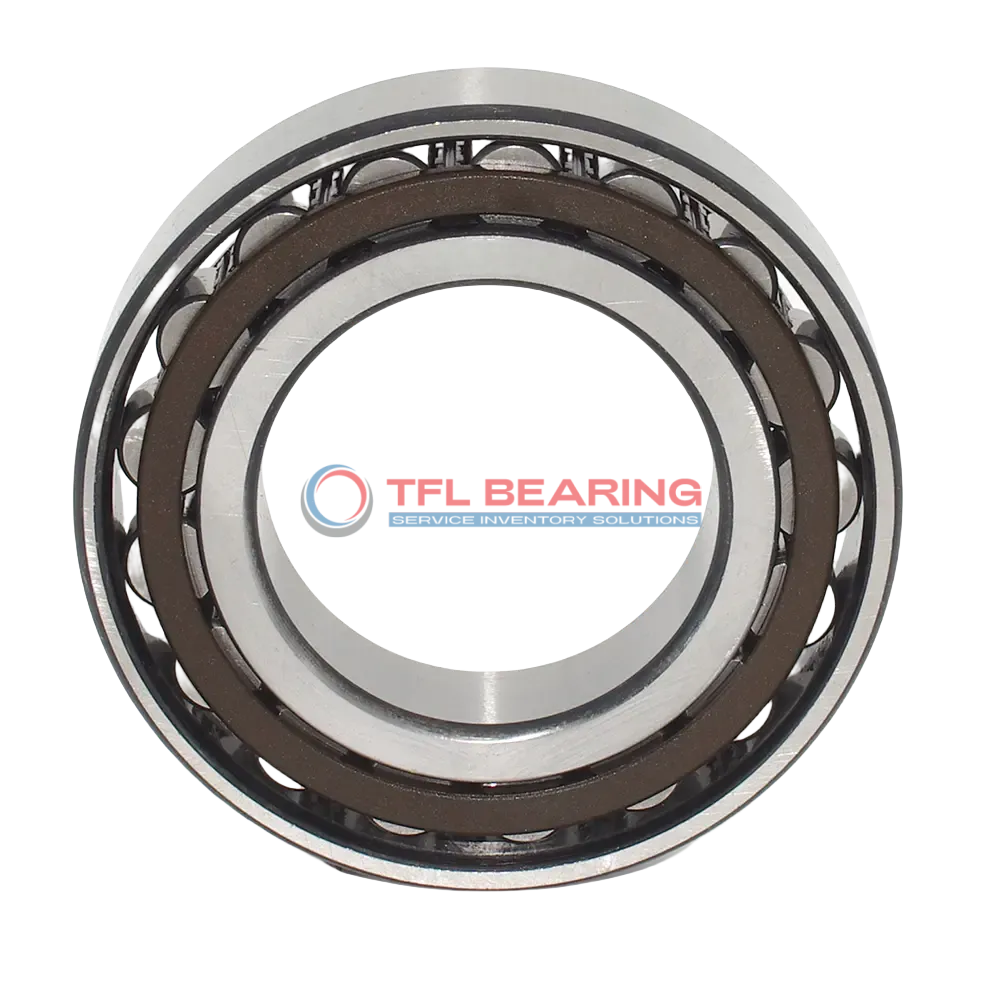

Single Row Cylindrical Roller Bearings With Inner Ring N 314 ECP

Single Row Cylindrical Roller Bearings With Inner Ring N 314 ECP

The N 314 ECP is a single row cylindrical roller bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 53100 lbf and runs smoothly at speeds up to 6000 RPM.

Its open design allows easy lubrication with grease or oil, while the PA66 cage ensures durability and smooth operation. The bearing performs well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for industrial machinery or heavy equipment where combined loads are common.

Weighing 2.67kg, it offers a robust solution for demanding applications. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number N 314 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 35 mm
  • Width Tolerance -0.15mm to 0
  • Shoulder Dia Of Inner Ring 97.3 mm
  • Raceway Diameter Of Outer Ring(E) 133 mm
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • Chamfer Dimension r3,4(min.) 2.1 mm
  • Permissible Axial Displacement(max.) 1.8 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 53100 lbf
  • Static Radial Load 51300 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 2.67 kg

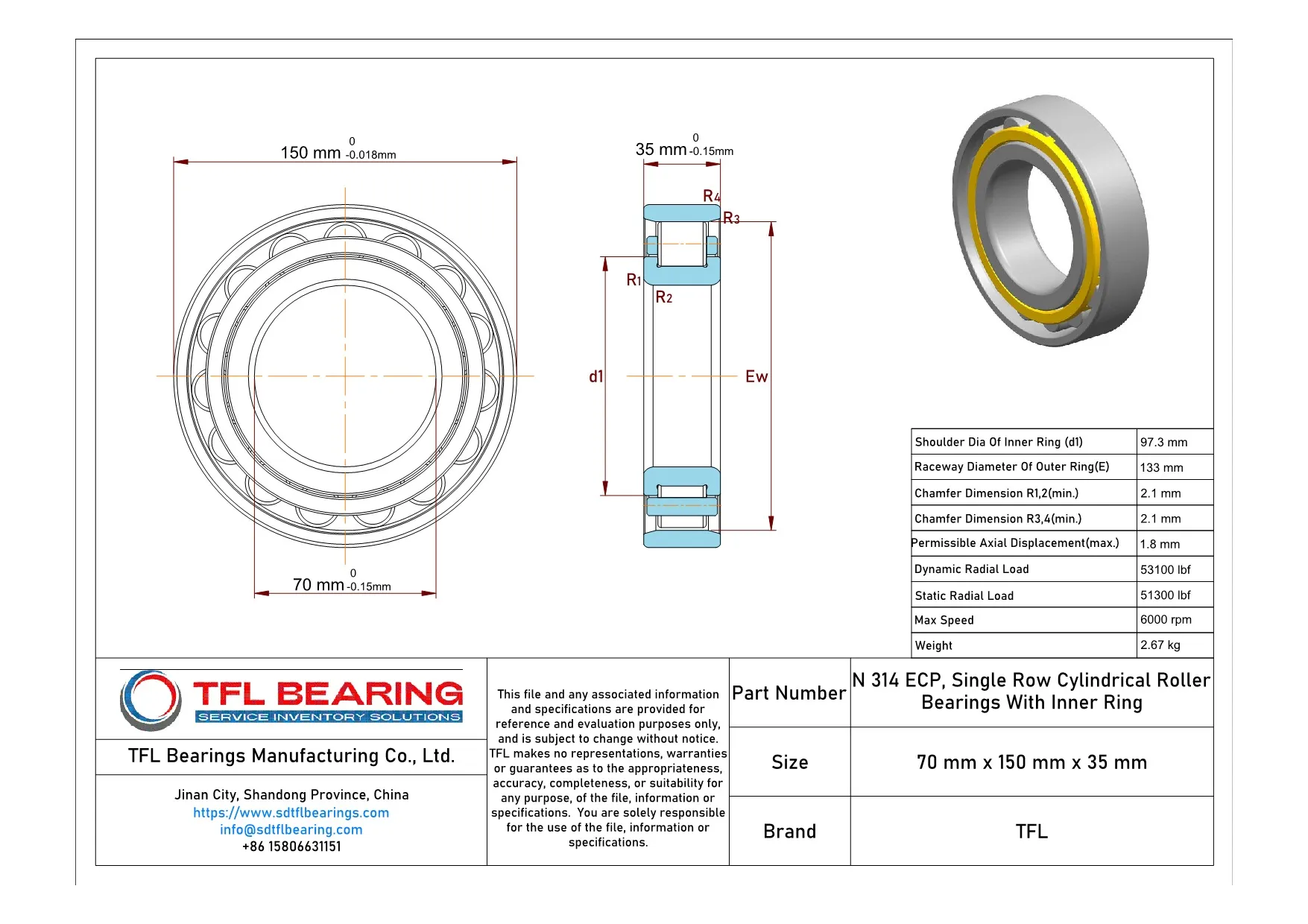

Single Row Cylindrical Roller Bearings With Inner Ring N 314 ECP dimension drawing
Download DWG Download PDF

Features

Performance Features of N 314 ECP Bearing

N 314 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 53,100 lbf, ensuring reliable performance in demanding applications.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 6,000 rpm, it balances durability and efficiency in various conditions.

N 314 ECP Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

Application

Industrial Uses of N 314 ECP Bearing
N 314 ECP Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its high radial load capacity ensures reliable performance. The open design and PA66 cage make it suitable for applications requiring frequent lubrication.

In automotive applications, N 314 ECP Bearing can be found in truck transmissions and differential systems, handling combined loads with ease. Its chrome steel construction provides durability under demanding conditions.

For automation equipment, N 314 ECP Bearing supports precise motion control in robotic arms and conveyor systems. The metric sizing and high-speed capability make it a versatile choice for various industrial settings.

In wind turbines, N 314 ECP Bearing plays a key role in generator systems, where its ability to handle both radial and axial loads is essential. The wide temperature range ensures performance in diverse environmental conditions.
