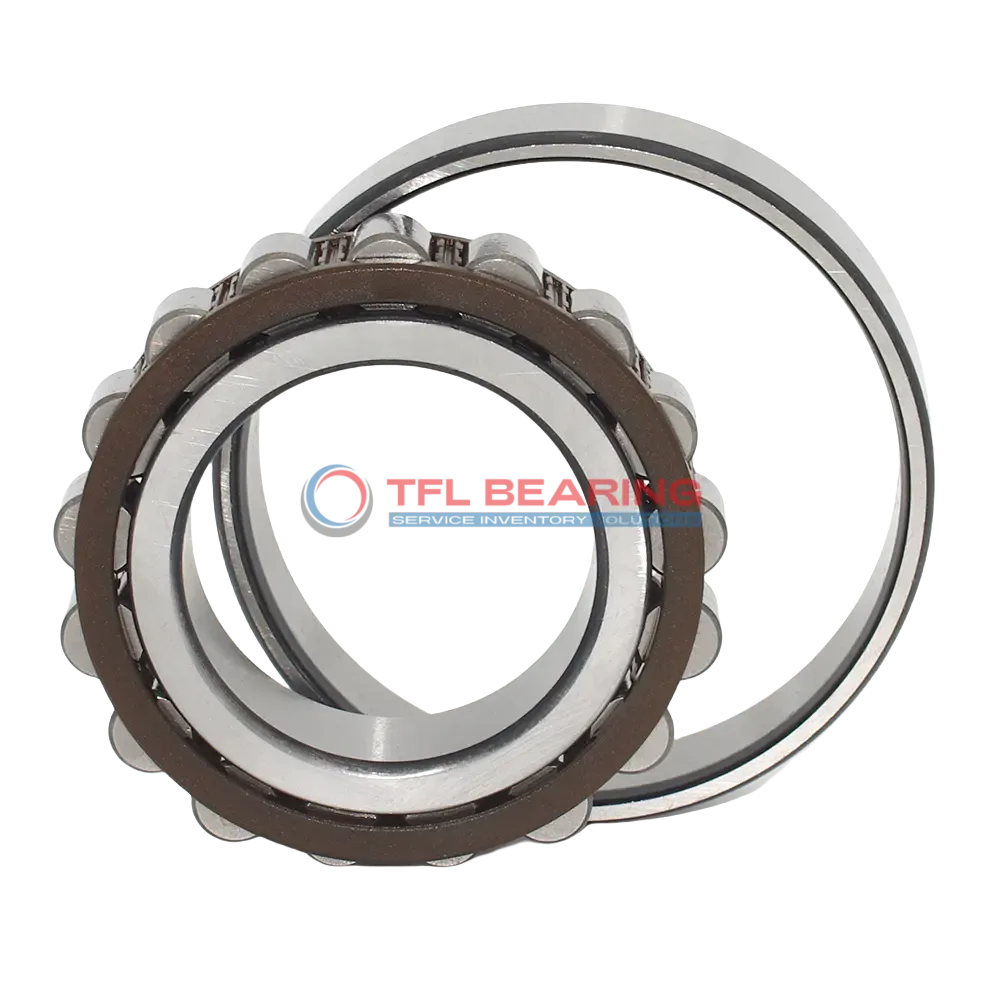

Single Row Cylindrical Roller Bearings With Inner Ring N 208 ECP

Single Row Cylindrical Roller Bearings With Inner Ring N 208 ECP

The N 208 ECP is a single-row cylindrical roller bearing with a 40mm bore and 80mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 13950 lbf and spins smoothly at speeds up to 11000 RPM.

Its open design allows easy lubrication with grease or oil, while the PA66 cage ensures smooth operation. The bearing performs well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a reliable replacement option. Ideal for applications like electric motors or gearboxes where radial and axial loads are present.

Weighing just 0.37kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number N 208 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 54 mm
  • Raceway Diameter Of Outer Ring(E) 71.5 mm
  • Chamfer Dimension r1,2(min.) 1.1 mm
  • Chamfer Dimension r3,4(min.) 1.1 mm
  • Permissible Axial Displacement(max.) 1.4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 13950 lbf
  • Static Radial Load 11925 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 0.37 kg
Single Row Cylindrical Roller Bearings With Inner Ring N 208 ECP dimension drawing
Download DWG Download PDF

Features

Core Advantages of N 208 ECP Bearing

N 208 ECP Bearing features chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 13950 lbf, ensuring reliable performance in various applications.
The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 11000 rpm, it balances durability and efficiency.

Application

Industrial Uses of N 208 ECP Bearing
N 208 ECP Bearing is commonly used in machine tools, where its cylindrical roller design handles both radial and axial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

Where Is N 208 ECP Bearing Used?
You’ll find N 208 ECP Bearing in automotive transmissions, where its high-speed capability and durability keep gear shifts smooth. The chrome steel construction also resists wear, even under heavy loads.

Perfect Fit for Automation: N 208 ECP Bearing
N 208 ECP Bearing works well in robotic arms, providing precise movement thanks to its single-row design. The PA66 cage reduces friction, making it ideal for repetitive tasks.

Medical vs Industrial: Where N 208 ECP Bearing Excels
In medical devices like centrifuges, N 208 ECP Bearing offers reliable performance with minimal maintenance. Its grease or oil lubrication options make it versatile for different environments.

Key Fields for N 208 ECP Bearing
N 208 ECP Bearing is a solid choice for conveyor systems, where its combined load capacity keeps operations running smoothly. The metric sizing ensures compatibility with a wide range of machinery.
