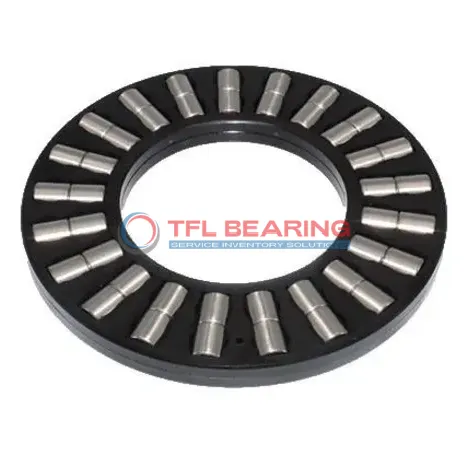

Double Row Cylindrical Roller Thrust Bearings assembly K 89306 TN

Double Row Cylindrical Roller Thrust Bearings assembly K 89306 TN

The K 89306 TN is a double-row cylindrical roller thrust bearing with a 30mm bore and 60mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 11700 lbf and operates smoothly at speeds up to 5300 RPM.

Its reinforced PA66 cage ensures stability, while the double-row design provides extra load capacity. The bearing performs well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or machinery with high thrust loads.

Weighing just 0.04kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 89306 TN
  • Size 30 mm x 60 mm x 5.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 30 mm
  • Bore Dia Tolerance +0.04mm to +0.17mm
  • Outer Dia 60 mm
  • Outer Dia Tolerance -0.34mm to -0.80mm
  • Diameter Roller 5.5 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 33 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 59 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 11700 lbf
  • Static Radial Load 41175 lbf
  • Max Speed 5300 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.04 kg
  • Shaft Washer WS 89306
  • Housing Washer GS 89306

Features

How Does K 89306 TN Bearing Handle Heavy Loads?

K 89306 TN Bearing features double-row cylindrical rollers, offering high thrust load capacity with a dynamic radial load of 11700 lbf.
Its chrome steel rollers and glass fibre reinforced PA66 cage ensure durability and smooth operation under stress.
The bearing maintains performance in temperatures ranging from -30° to 110°C, suitable for various industrial applications.
With a maximum speed of 5300 rpm, it combines strength and efficiency for demanding tasks.

Application

Industrial Uses of K 89306 TN Bearing
K 89306 TN Bearing is commonly used in heavy machinery, such as presses and gearboxes, where its double-row design handles significant thrust loads efficiently. The glass fibre reinforced PA66 cage ensures smooth operation even at high speeds.

Where Is K 89306 TN Bearing Used?
In automotive applications, K 89306 TN Bearing supports components like clutch assemblies and transmissions, thanks to its durable chrome steel rollers. Its metric sizing makes it a reliable choice for various vehicle models.

Optimized for Performance: K 89306 TN Bearing
For automation systems, K 89306 TN Bearing excels in robotic arms and conveyor belts, where precision and load capacity are key. The reinforced cage material adds longevity in continuous operation scenarios.

Medical vs Industrial: Where K 89306 TN Bearing Excels
While K 89306 TN Bearing is robust enough for industrial presses, its precision also suits medical imaging devices. The temperature range ensures reliability in both sterile and high-heat environments.

Essential Roles of K 89306 TN Bearing
In consumer electronics, K 89306 TN Bearing can be found in high-performance printers, where its compact size and load capacity are advantageous. The lightweight design doesn’t compromise on durability.
