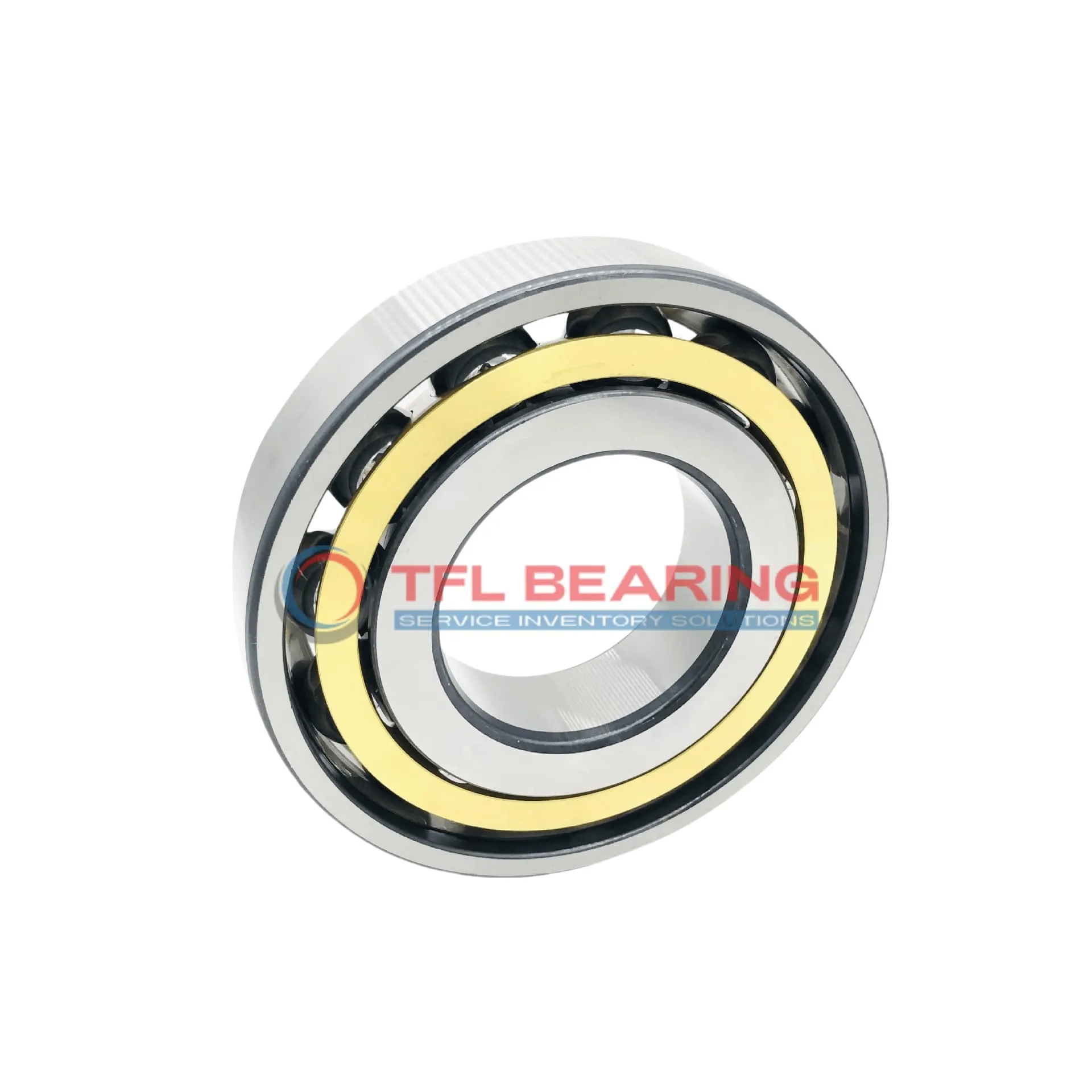

Single Row Angular Contact Ball Bearings (General) 7410 BCBM

Single Row Angular Contact Ball Bearings (General) 7410 BCBM

The 7410 BCBM is a single-row angular contact ball bearing with a 50mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 21510 lbf and operates smoothly at speeds up to 9000 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The brass cage ensures durability, while the open design allows for easy lubrication and maintenance.

This bearing fits well in applications like pumps or gearboxes where angular contact is needed. Its P6 tolerance class (ABEC-3) ensures reliable precision.

Weighing 2.25kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a safe choice for various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7410 BCBM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 81.4 mm
  • External Diameter On Inner Ring (Small Side Face) 66.8 mm
  • Internal Diameter On Outer Ring 99.85 mm
  • Chamfer Dimension 2.1 mm
  • Distance Pressure Point (a) 53 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 21510 lbf
  • Static Radial Load 14400 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 9000 rpm
  • Weight 2.25 kg
  • Price（$） 68.96
Single Row Angular Contact Ball Bearings (General) 7410 BCBM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7410 BCBM Bearing

7410 BCBM Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads efficiently.
The chrome steel rings and balls enhance durability, while the brass cage ensures smooth operation.

With a dynamic radial load capacity of 21510 lbf, it performs reliably in demanding conditions.
Its maximum speed of 9,000 rpm makes it suitable for high-speed applications.

The open design allows easy lubrication, extending the bearing’s service life.
7410 BCBM Bearing operates smoothly within a temperature range of -30° to 110°C.

Application

Industrial Uses of 7410 BCBM Bearing
The 7410 BCBM Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its brass cage ensures smooth operation even at high speeds up to 9000 rpm.

Where Is 7410 BCBM Bearing Used?
In automotive applications, 7410 BCBM Bearing supports gearbox shafts and wheel hubs due to its durable chrome steel construction. The P6 tolerance class provides the precision needed for reliable performance in demanding conditions.

Built for Heavy-Duty Use: 7410 BCBM Bearing
This bearing excels in conveyor systems, where its 21510 lbf dynamic radial load capacity ensures long service life. The open design allows for easy relubrication, making maintenance straightforward.

Automotive vs Aerospace: Applications of 7410 BCBM Bearing
While 7410 BCBM Bearing is popular in car transmissions, its precision also suits aerospace actuators. The 2.25 kg weight balances strength and portability for diverse industrial needs.

Perfect Fit for Automation: 7410 BCBM Bearing
In robotic arms, 7410 BCBM Bearing’s angular contact design enables precise movement control. The lubricated build reduces friction, ensuring consistent performance in automated production lines.
