Single Row Angular Contact Ball Bearings (General) 7320 BEGBY

Single Row Angular Contact Ball Bearings (General) 7320 BEGBY

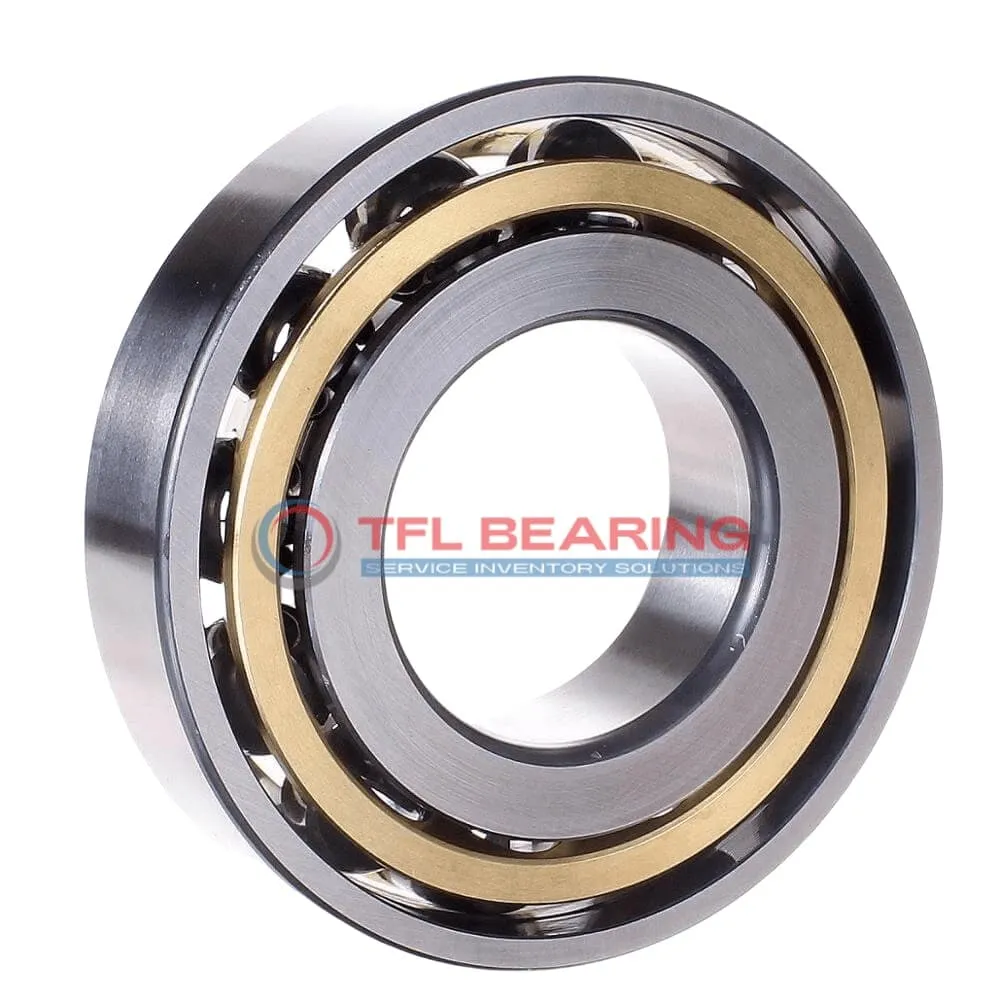

The 7320 BEGBY is a single-row angular contact ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 48600 lbf and operates smoothly at speeds up to 4000 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The brass cage enhances durability, while the open design simplifies lubrication and maintenance.

This bearing suits applications like pumps or gearboxes where precise angular contact is needed. Its P6 tolerance class ensures reliable performance in demanding conditions.

Weighing 7.5kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a safe choice for various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7320 BEGBY
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Width 47 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 144.5 mm
  • External Diameter On Inner Ring (Small Side Face) 120.46 mm
  • Internal Diameter On Outer Ring 173.75 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 90 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 46800 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 7.5 kg
Single Row Angular Contact Ball Bearings (General) 7320 BEGBY dimension drawing
Download DWG Download PDF

Features

How Does 7320 BEGBY Bearing Support Angular Contact Loads?

7320 BEGBY Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel construction ensures strength and durability under dynamic radial loads up to 48,600 lbf.

The brass cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 4,000 rpm, it delivers reliable performance in various industrial applications.

Designed for precision, 7320 BEGBY Bearing operates smoothly within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 7320 BEGBY Bearing
7320 BEGBY Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even at moderate speeds, making it suitable for spindle applications.

Where Is 7320 BEGBY Bearing Used?
In automotive systems, 7320 BEGBY Bearing supports components like wheel hubs and transmissions, thanks to its high dynamic radial load capacity. The P6 tolerance class also ensures precision in demanding conditions.

Built for Heavy-Duty Use: 7320 BEGBY Bearing
For heavy machinery, 7320 BEGBY Bearing’s chrome steel construction provides durability in applications like gearboxes and pumps. Its open design allows for easy lubrication, extending service life in harsh environments.

Automotive vs Aerospace: Applications of 7320 BEGBY Bearing
In automotive settings, 7320 BEGBY Bearing excels in wheel and transmission systems, while its precision makes it useful in aerospace actuators. The metric sizing ensures compatibility across various equipment types.

Practical Applications of 7320 BEGBY Bearing
7320 BEGBY Bearing is a reliable choice for industrial fans, where its balanced load handling and brass cage reduce vibration. The temperature range also makes it adaptable to different operating conditions.
