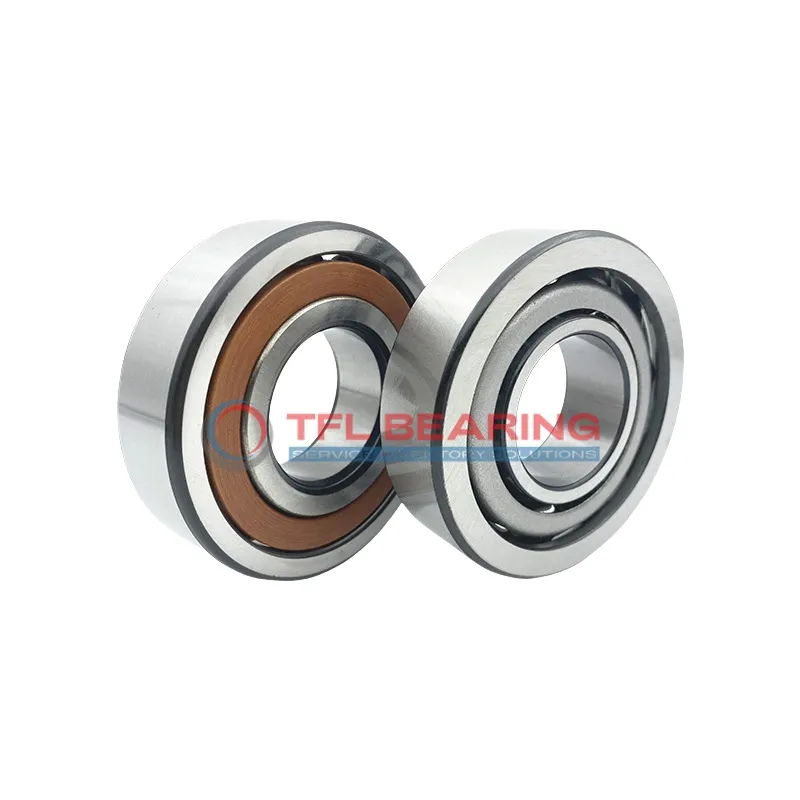

Single Row Angular Contact Ball Bearings (General) 7317 BEGAF

Brand: TFL Bearing Interchangeable: SKF 7317 BEGAF 85 mm × 180 mm × 41 mm Metric Open
Part number: 7317 BEGAF
Single Row Angular Contact Ball Bearings (General) 7317 BEGAF
In Stock
US$109.75 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia85 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia180 mm
Outer Dia Tolerance-0.018mm to 0
Width41 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)122.3 mm
External Diameter On Inner Ring (Small Side Face)103.03 mm
Internal Diameter On Outer Ring144.95 mm
Chamfer Dimension3 mm
Performance
Dynamic Radial Load32,850 lbf
Static Radial Load27,450 lbf
Temperature Range-30° to 110 °C
Max Speed4,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)76 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight4.61 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7317 BEGAF is a single-row angular contact ball bearing with an 85mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 32850 lbf and operates smoothly at speeds up to 4300 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The open design allows easy lubrication, while the stainless steel cage ensures durability.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for machinery like pumps or gearboxes where angular contact is needed.

Weighing 4.61kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 110°C.

Features

Performance Features of 7317 BEGAF Bearing

7317 BEGAF Bearing is designed with a 40° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls enhance durability, supporting dynamic radial loads up to 32,850 lbf.

The stainless steel cage ensures smooth operation, even at speeds reaching 4,300 rpm.
With a P6 tolerance class, 7317 BEGAF Bearing delivers reliable precision in various industrial settings.

Its open design simplifies lubrication, maintaining performance within a temperature range of -30° to 110°C.
The 3 mm chamfer dimension further aids in easy installation and alignment.

Application

Industrial Uses of 7317 BEGAF Bearing
The 7317 BEGAF Bearing is commonly used in heavy machinery, such as industrial gearboxes and pumps, where its angular contact design efficiently handles combined radial and axial loads.
Its chrome steel construction ensures durability in demanding environments, while the open seal allows for easy lubrication and maintenance.

Why Is 7317 BEGAF Bearing Essential in Machinery?
In automotive applications, 7317 BEGAF Bearing supports high-performance components like wheel hubs and transmissions, thanks to its 40° contact angle for precise load distribution.
The P6 tolerance class ensures reliable operation, making it a trusted choice for manufacturers.

Built for Heavy-Duty Use: 7317 BEGAF Bearing
For automation systems, 7317 BEGAF Bearing is ideal for robotic arms and CNC machines, where smooth rotation and load capacity are critical.
The stainless steel cage reduces friction, extending the bearing’s lifespan even in continuous operation.

Automotive vs Aerospace: Applications of 7317 BEGAF Bearing
In automotive systems, 7317 BEGAF Bearing excels in handling high-speed loads, such as in differential assemblies.
For aerospace applications, its precision and reliability make it suitable for auxiliary equipment like hydraulic pumps.

Key Fields for 7317 BEGAF Bearing
Medical imaging devices benefit from 7317 BEGAF Bearing’s smooth operation and low noise, ensuring accurate diagnostics.
The lubricated design also minimises wear, making it a practical choice for long-term use in sensitive equipment.
