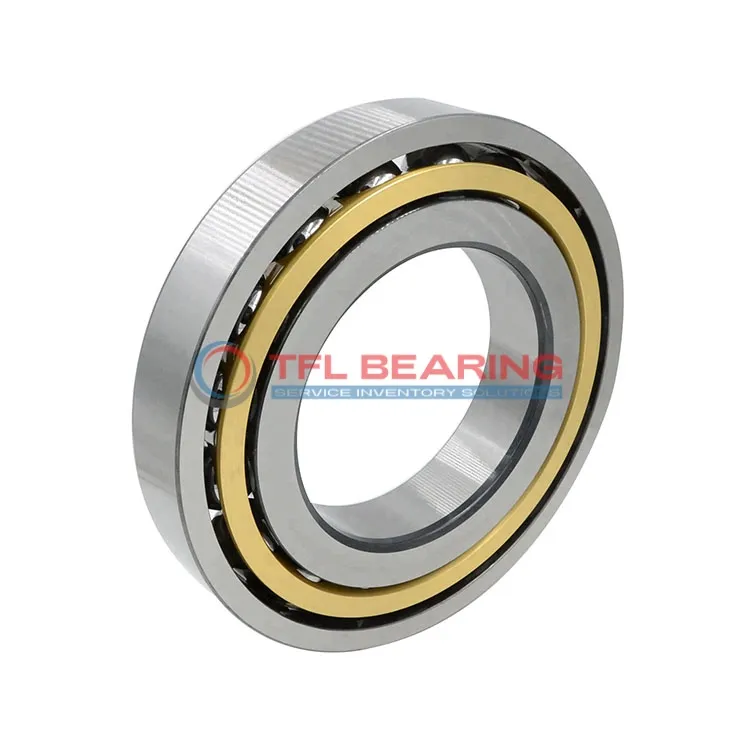

Single Row Angular Contact Ball Bearings (General) 7315 BECBY

Single Row Angular Contact Ball Bearings (General) 7315 BECBY

The 7315 BECBY is a single-row angular contact ball bearing with a 75mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 29700 lbf and operates smoothly at speeds up to 5300 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The brass cage enhances durability, while the open design simplifies lubrication and maintenance.

This bearing fits well in applications like pumps or gearboxes where precise angular contact is needed. It works in temperatures from -30°C to 110°C and meets P6 tolerance standards.

Weighing 3.2kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH, it’s a reliable choice for replacements, especially as it’s interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7315 BECBY
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 37 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 108.25 mm
  • External Diameter On Inner Ring (Small Side Face) 91.13 mm
  • Internal Diameter On Outer Ring 128.9 mm
  • Chamfer Dimension 2.1 mm
  • Distance Pressure Point (a) 68 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 29700 lbf
  • Static Radial Load 23400 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5300 rpm
  • Weight 3.2 kg
  • Price（$） 72.09
Single Row Angular Contact Ball Bearings (General) 7315 BECBY dimension drawing
Download DWG Download PDF

Features

Performance Features of 7315 BECBY Bearing

7315 BECBY Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.

Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.

With a dynamic radial load capacity of 29,700 lbf, it performs reliably in demanding conditions.

The P6 tolerance class (ABEC-3) ensures precision, making it suitable for high-accuracy applications.

Application

Industrial Uses of 7315 BECBY Bearing
The 7315 BECBY Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its brass cage ensures smooth operation even at moderate speeds.

In automotive applications, 7315 BECBY Bearing is ideal for wheel hubs and transmissions, providing reliable performance under heavy loads. The chrome steel construction offers durability in demanding conditions.

For automation systems, 7315 BECBY Bearing supports robotic arms and conveyor belts with precision. Its P6 tolerance class ensures consistent performance in high-accuracy environments.

Medical imaging devices benefit from 7315 BECBY Bearing’s stable operation and low maintenance needs. The lubricated design reduces friction, enhancing longevity in critical applications.

Household appliances like washing machines use 7315 BECBY Bearing for its quiet and efficient performance. The metric sizing makes it compatible with various European and Asian models.
