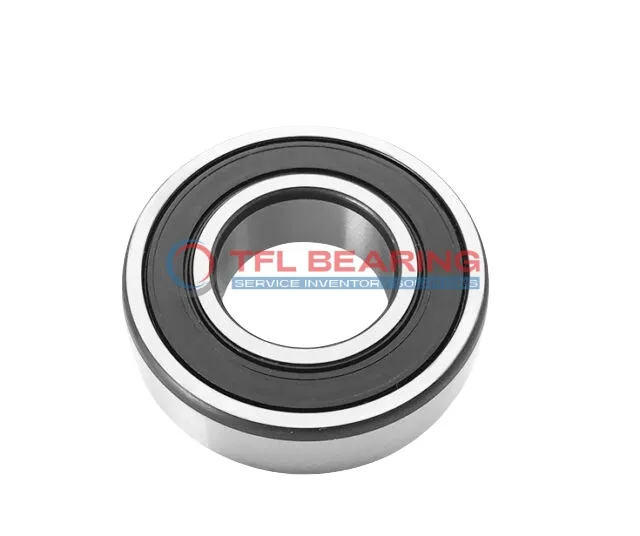

Single Row Deep Groove Ball Bearings 63010-2RS1/W64

Single Row Deep Groove Ball Bearings 63010-2RS1/W64

The 63010-2RS1/W64 is a single-row deep groove ball bearing with a 50mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4856 lbf and operates smoothly at speeds up to 5000 RPM.

Sealed on both sides, it keeps dirt out and solid oil lubrication in, reducing maintenance needs. The chrome steel cage adds durability, making it a reliable choice for long-term use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering flexibility for replacements.

Ideal for applications like electric motors or pumps where radial loads are common. Weighing 0.38kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 63010-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4856 lbf
  • Static Radial Load 3507 lbf
  • Max Speed 5000 rpm
  • Weight 0.38 kg
Single Row Deep Groove Ball Bearings 63010-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

How Does 63010-2RS1/W64 Bearing Reduce Friction?

63010-2RS1/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
Its chrome steel construction provides durability, making it suitable for radial load applications.
The bearing can handle dynamic radial loads up to 4856 lbf, offering reliable performance in various conditions.
With a maximum speed of 5,000 rpm, it balances efficiency and longevity.

Application

Common Applications of 63010-2RS1/W64 Bearing
In industrial settings, 63010-2RS1/W64 Bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep contaminants out. The solid oil lubrication ensures smooth operation even in dusty environments.

Where Is 63010-2RS1/W64 Bearing Used?
You’ll often find 63010-2RS1/W64 Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. The chrome steel construction adds durability for long-lasting performance.

Ideal for Precision: 63010-2RS1/W64 Bearing
For medical devices like lab centrifuges, 63010-2RS1/W64 Bearing offers consistent performance with minimal maintenance. Its sealed design and solid oil lubrication make it a hygienic choice for sensitive environments.

Automotive vs Industrial: Applications of 63010-2RS1/W64 Bearing
In cars, 63010-2RS1/W64 Bearing supports components like fans and pulleys, while in factories, it’s used in machinery requiring steady radial load support. The metric sizing ensures compatibility across various equipment types.

Practical Applications of 63010-2RS1/W64 Bearing
Household appliances like washing machines benefit from 63010-2RS1/W64 Bearing’s quiet and efficient operation. The sealed design also helps protect against moisture and detergent exposure.
