Single Row Angular Contact Ball Bearings (General) 7314 BEGAF

Single Row Angular Contact Ball Bearings (General) 7314 BEGAF

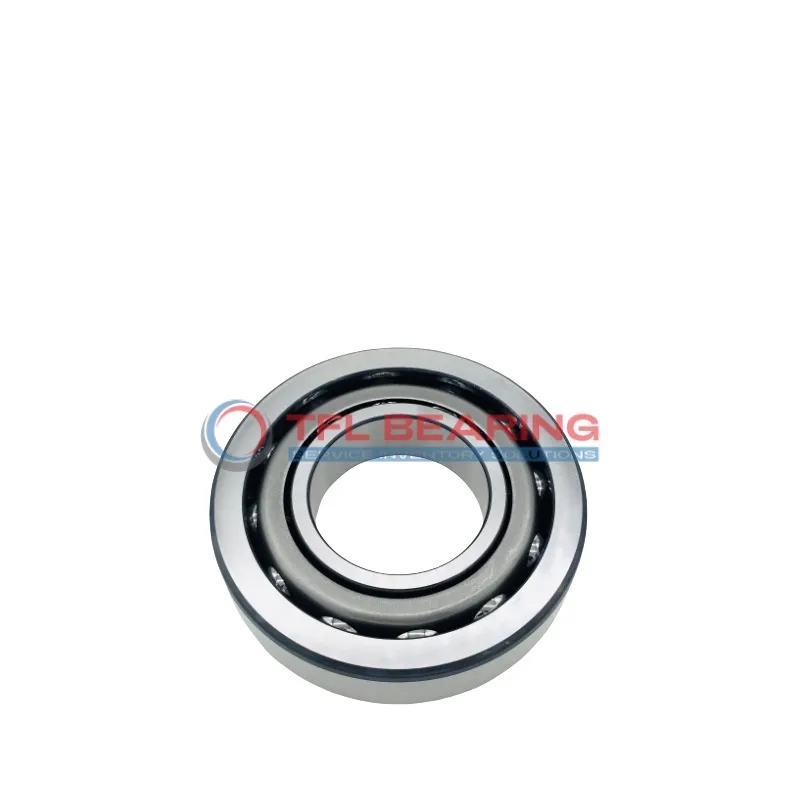

The 7314 BEGAF is a single-row angular contact ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently manages combined radial and axial loads, supporting up to 26775 lbf dynamically.

Designed for smooth operation at speeds up to 5300 RPM, it features an open construction for easy lubrication. The stainless steel cage enhances durability, while the P6 tolerance class ensures precise performance.

With a compact width of 35mm, it fits well in tight spaces. Ideal for machinery like pumps or gearboxes where angular loads are common, it operates reliably between -30°C and 110°C.

Weighing 2.65kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for convenient replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7314 BEGAF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 35 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 101.1 mm
  • External Diameter On Inner Ring (Small Side Face) 84.4 mm
  • Internal Diameter On Outer Ring 121.5 mm
  • Chamfer Dimension 2.1 mm
  • Distance Pressure Point (a) 64 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 26775 lbf
  • Static Radial Load 20250 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5300 rpm
  • Weight 2.65 kg
Single Row Angular Contact Ball Bearings (General) 7314 BEGAF dimension drawing
Download DWG Download PDF

Features

How Does 7314 BEGAF Bearing Handle Angular Contact Loads?

7314 BEGAF Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel construction ensures strength and durability under dynamic radial loads up to 26775 lbf.

The stainless steel cage maintains ball alignment, reducing friction and wear during high-speed operation.
With a maximum speed of 5,300 rpm, it delivers reliable performance in various industrial applications.

7314 BEGAF Bearing operates efficiently within a temperature range of -30° to 110°C.
Its P6 tolerance class (ABEC-3) ensures precision and consistency in demanding environments.

Application

Industrial Uses of 7314 BEGAF Bearing
The 7314 BEGAF Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its open design and P6 tolerance ensure smooth operation in precision machining environments.

In automotive applications, 7314 BEGAF Bearing supports high-performance gearboxes and wheel hubs, thanks to its robust chrome steel construction. The metric sizing makes it a reliable choice for European and Asian vehicle models.

For automation systems, 7314 BEGAF Bearing is ideal for robotic arms and conveyor belts, where its stainless steel cage reduces wear. The lubricated design further enhances its longevity in continuous operation.

Medical imaging devices benefit from 7314 BEGAF Bearing’s consistent performance under moderate speeds. Its temperature range of -30° to 110°C ensures reliability in various clinical settings.

In household appliances like washing machines, 7314 BEGAF Bearing provides quiet and efficient operation. The 35 mm width fits compact spaces while maintaining load capacity.
