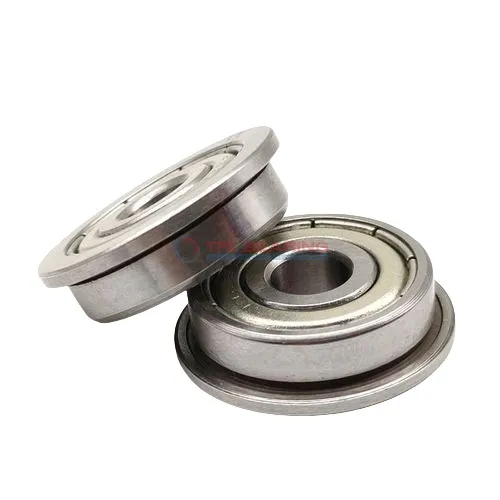

Metric Size Miniature Flanged Ball Bearings MF95zz

Metric Size Miniature Flanged Ball Bearings MF95zz

The MF95zz is a small, shielded ball bearing with a 5mm bore and 9mm outer diameter, crafted from durable chrome steel. It supports radial loads up to 82 lbf and spins smoothly at speeds up to 50,000 RPM.

Its stainless steel shields keep dust out while the stainless steel cage ensures reliable performance. The bearing requires lubrication and operates well in temperatures from -30°C to 110°C.

With a compact width of just 3mm and a lightweight design at 0.66g, it’s ideal for small devices like miniature motors or precision instruments. Compliant with RoHS and REACH standards, it’s a safe and practical choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MF95zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 9 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 10.2 mm
  • Flange Thickness 0.6 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 8
  • Ball Dia 1.2000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 82 lbf
  • Static Radial Load 30 lbf
  • Max Speed 50000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.66 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 1.35
Metric Size Miniature Flanged Ball Bearings MF95zz dimension drawing
Download DWG Download PDF

Features

How Does MF95zz Bearing Reduce Friction?

MF95zz Bearing features a shielded design with chrome steel rings and balls, ensuring smooth radial operation.
Its dynamic radial load capacity of 82 lbf makes it suitable for high-speed applications up to 50,000 rpm.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a compact width of 3 mm, it fits seamlessly into precision instruments.

Application

Common Applications of MF95zz Bearing
MF95zz Bearing is widely used in small electric motors, such as those found in cooling fans and power tools, thanks to its compact size and shielded design. The high-speed capability makes it suitable for applications requiring rapid rotation.

In consumer electronics, MF95zz Bearing ensures smooth operation in devices like printers and handheld gadgets. Its chrome steel construction provides durability while maintaining quiet performance.

For automation systems, MF95zz Bearing is a reliable choice for precision movements in robotic arms and small conveyors. The stainless steel cage adds longevity even in continuous-use scenarios.

Medical devices like dental tools benefit from MF95zz Bearing’s consistent performance and low maintenance needs. The shielded design helps keep contaminants out, ensuring hygiene in sensitive environments.
