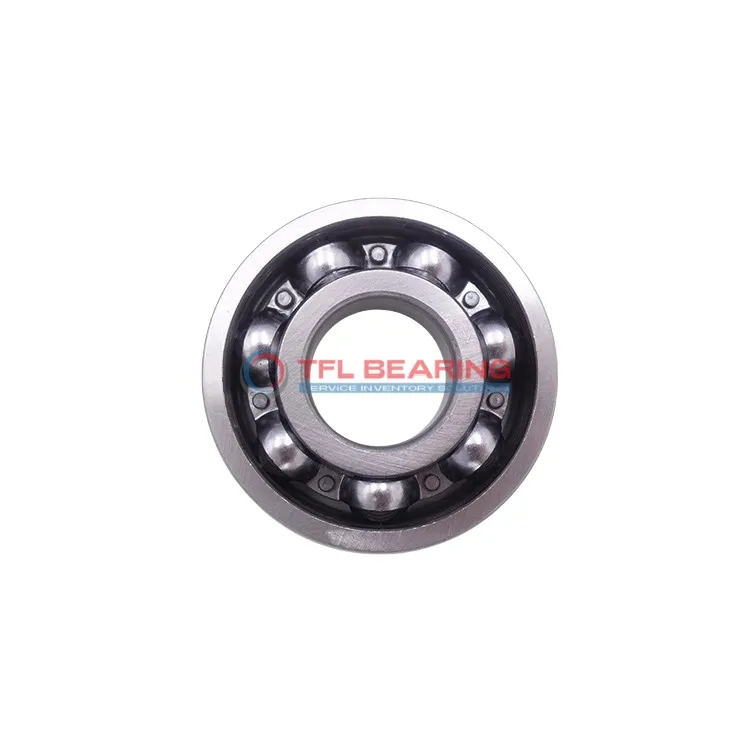

Single Row Deep Groove Ball Bearings 6216 M/HC5P64HS0VR602

Single Row Deep Groove Ball Bearings 6216 M/HC5P64HS0VR602

The 6216 M/HC5P64HS0VR602 is a single-row deep groove ball bearing with an 80mm bore and 140mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 16366 lbf and operates smoothly at speeds up to 8500 RPM.

Its silicon nitride balls reduce friction and wear, while the machined metal cage ensures stability under heavy loads. The open design allows for easy lubrication and maintenance.

This bearing is compatible with SKF models, making it a practical choice for replacements. It performs well in temperatures ranging from -30°C to 150°C.

Ideal for industrial machinery or automotive applications where reliability and high-speed performance are key. Weighing 1.63kg, it offers a sturdy build for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6216 M/HC5P64HS0VR602
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 3 | ISO P6
  • Radial Clearance Trade No CN
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 26 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Silicon Nitride(Si3N4)
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 150 °C
  • Dynamic Radial Load 16366 lbf
  • Static Radial Load 12364 lbf
  • Max Speed 8500 rpm
  • Weight 1.63 kg
  • price（$） 170.334
Single Row Deep Groove Ball Bearings 6216 M/HC5P64HS0VR602 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6216 M/HC5P64HS0VR602 Bearing

6216 M/HC5P64HS0VR602 Bearing is built with chrome steel rings and silicon nitride balls, offering excellent radial load capacity.
Its dynamic radial load reaches 16366 lbf, making it suitable for demanding industrial applications.

The machined metal cage ensures precise ball alignment, reducing friction and enhancing durability.
With a maximum speed of 8,500 rpm, it delivers reliable performance in high-speed operations.

6216 M/HC5P64HS0VR602 Bearing operates efficiently in temperatures ranging from -30°C to 150°C.
Its open design allows for easy lubrication, ensuring smooth and long-lasting performance.

Application

Industrial Uses of 6216 M/HC5P64HS0VR602 Bearing
This bearing is commonly used in industrial machinery like pumps and compressors, where its deep groove design handles radial loads efficiently. The chrome steel rings and silicon nitride balls offer a good balance of strength and durability.

In automotive applications, 6216 M/HC5P64HS0VR602 Bearing fits well in wheel hubs and electric motors, thanks to its precise ABEC 3 tolerance. The open seal design allows for easy lubrication, extending its service life in demanding conditions.

For automation systems, this bearing works smoothly in robotic arms and conveyor belts, where consistent performance is key. The machined metal cage ensures stability even at higher speeds, making it a reliable choice for repetitive motion tasks.

Medical equipment like centrifuges also benefit from 6216 M/HC5P64HS0VR602 Bearing’s low-friction operation. Its temperature range up to 150°C makes it suitable for sterilisation processes without compromising performance.

Around the home, you might find this bearing in heavy-duty appliances like washing machines. Its robust construction handles vibrations well, ensuring quiet and long-lasting operation.
