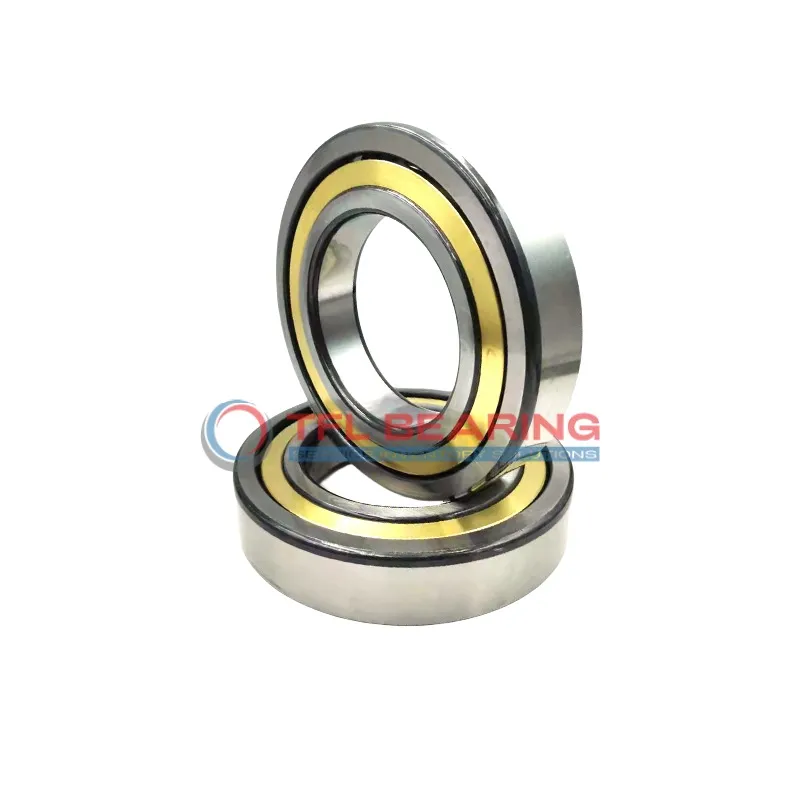

Single Row Angular Contact Ball Bearings (General) 7312 BEGBY

Brand: TFL Bearing Interchangeable: SKF 7312 BEGBY 60 mm × 130 mm × 31 mm Metric Open
Part number: 7312 BEGBY
Single Row Angular Contact Ball Bearings (General) 7312 BEGBY
In Stock
US$43.40 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia60 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia130 mm
Outer Dia Tolerance-0.015mm to 0
Width31 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)87.25 mm
External Diameter On Inner Ring (Small Side Face)72.6 mm
Internal Diameter On Outer Ring104.8 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load23,400 lbf
Static Radial Load17,212 lbf
Temperature Range-30° to 110 °C
Max Speed6,700 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)55 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight1.75 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7312 BEGBY is a single-row angular contact ball bearing with a 60mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 23400 lbf and operates smoothly at speeds up to 6700 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The open design and brass cage ensure durability and easy maintenance.

This bearing is lubricated for long service life and works in temperatures from -30°C to 110°C. It meets P6 tolerance standards for precise performance.

Ideal for machinery like pumps or gearboxes where angular contact is needed. Weighing 1.75kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH regulations.

Features

How Does 7312 BEGBY Bearing Handle Angular Contact Loads?

7312 BEGBY Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.

With a dynamic radial load capacity of 23400 lbf, it performs reliably in demanding applications.
The P6 tolerance class ensures precision, making it suitable for high-speed operations up to 6,700 rpm.

Designed for a temperature range of -30° to 110°C, 7312 BEGBY Bearing adapts to various working conditions.
Its open design simplifies lubrication, reducing maintenance needs over time.

Application

Key Fields for 7312 BEGBY Bearing
7312 BEGBY Bearing is commonly used in industrial machinery, especially in spindle assemblies and gearboxes where high radial and axial loads are present. Its 40° contact angle provides excellent load distribution, making it suitable for demanding applications.

In automotive systems, 7312 BEGBY Bearing can be found in wheel hubs and transmissions, where its brass cage enhances durability under varying speeds. The P6 tolerance ensures precise alignment, crucial for vehicle performance.

For automation equipment, 7312 BEGBY Bearing supports robotic arms and CNC machines, offering reliable operation with minimal maintenance. The chrome steel construction ensures long service life even in continuous use.

Medical imaging devices benefit from 7312 BEGBY Bearing’s smooth operation and low noise levels. The lubricated design reduces friction, which is essential for sensitive diagnostic equipment.

In household appliances like washing machines, 7312 BEGBY Bearing provides quiet and efficient performance. Its metric sizing makes it compatible with a variety of European and Asian appliance models.
