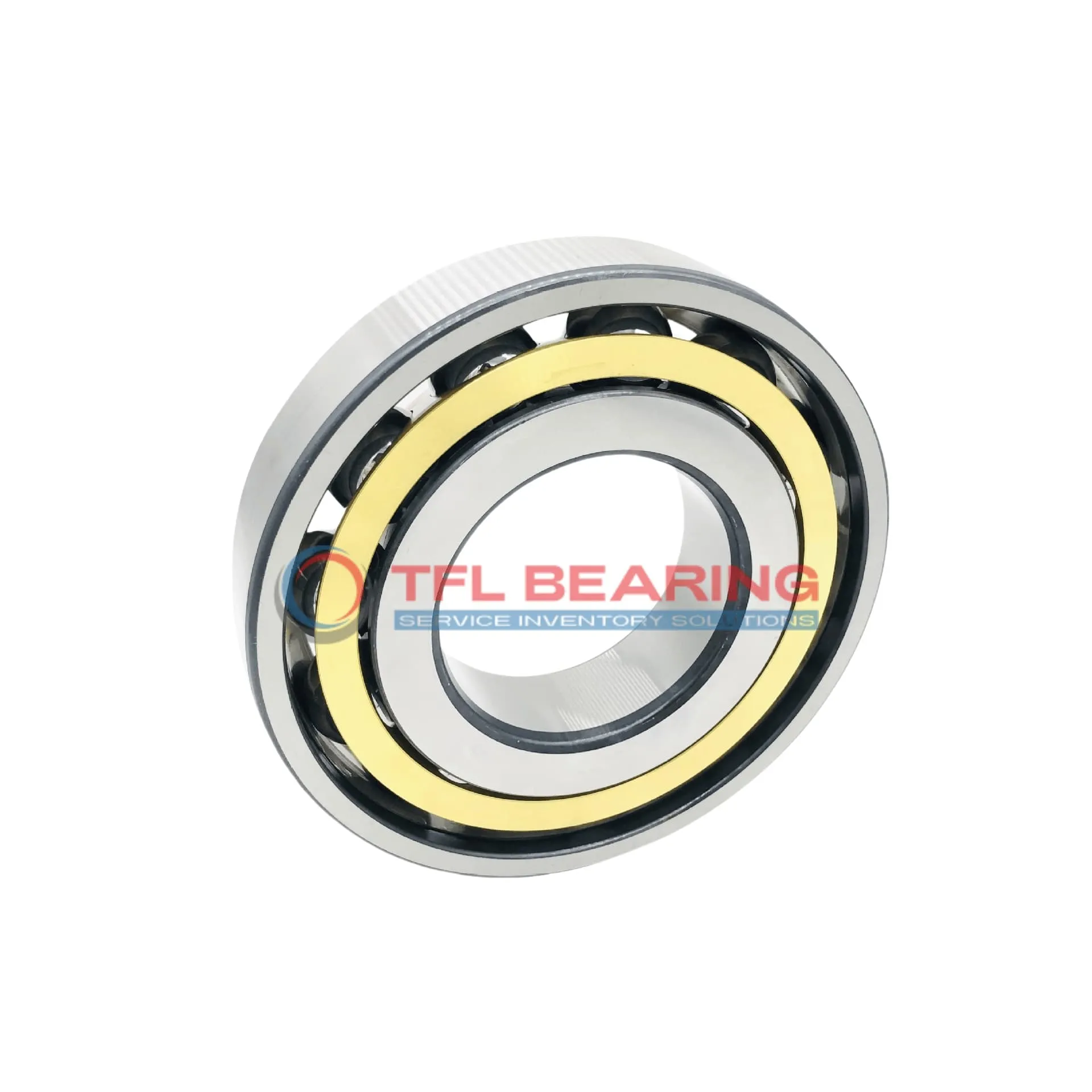

Single Row Angular Contact Ball Bearings (General) 7310 BEGAY

Single Row Angular Contact Ball Bearings (General) 7310 BEGAY

The 7310 BEGAY is a single-row angular contact ball bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It features a 40° contact angle, handling radial loads up to 16875 lbf and speeds of 8000 RPM.

Its open design allows for easy lubrication, while the brass cage ensures smooth operation and durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

With a P6 tolerance class, it offers precise performance for demanding applications. Ideal for machinery like pumps or gearboxes where angular contact and radial loads are key.

Weighing 1.1kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and versatile choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7310 BEGAY
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 27 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 73.8 mm
  • External Diameter On Inner Ring (Small Side Face) 61.13 mm
  • Internal Diameter On Outer Ring 88.8 mm
  • Chamfer Dimension 2 mm
  • Distance Pressure Point (a) 47 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 16875 lbf
  • Static Radial Load 11475 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 1.1 kg
  • Price（$） 34.16
Single Row Angular Contact Ball Bearings (General) 7310 BEGAY dimension drawing
Download DWG Download PDF

Features

Why Choose 7310 BEGAY Bearing for Precision Tasks?

7310 BEGAY Bearing features a 40° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel rings and balls ensure durability, while the brass cage maintains smooth operation.

With a dynamic radial load capacity of 16875 lbf, it performs reliably in demanding applications.
The P6 tolerance class guarantees consistent accuracy, making it suitable for high-precision machinery.

Operating at speeds up to 8,000 rpm, 7310 BEGAY Bearing balances speed and stability.
Its open design allows for easy lubrication, extending service life and reducing maintenance needs.

Application

Industrial Uses of 7310 BEGAY Bearing
7310 BEGAY Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even at high speeds, making it suitable for precision machining.

In automotive applications, 7310 BEGAY Bearing supports gearbox shafts and wheel hubs, thanks to its robust chrome steel construction. The P6 tolerance class provides the accuracy needed for reliable performance in demanding conditions.

For automation systems, 7310 BEGAY Bearing is a solid choice for robotic arms and conveyor drives, where its angular contact design maintains stability under varying loads. The open seal type allows for easy lubrication, extending service life in continuous operation.

Medical imaging devices benefit from 7310 BEGAY Bearing’s consistent performance and low noise levels. Its temperature range of -30° to 110°C ensures reliability in both diagnostic and surgical equipment.

In household appliances like washing machines, 7310 BEGAY Bearing’s durability and load capacity make it ideal for rotating drums. The metric sizing ensures compatibility with a wide range of European and Asian models.
