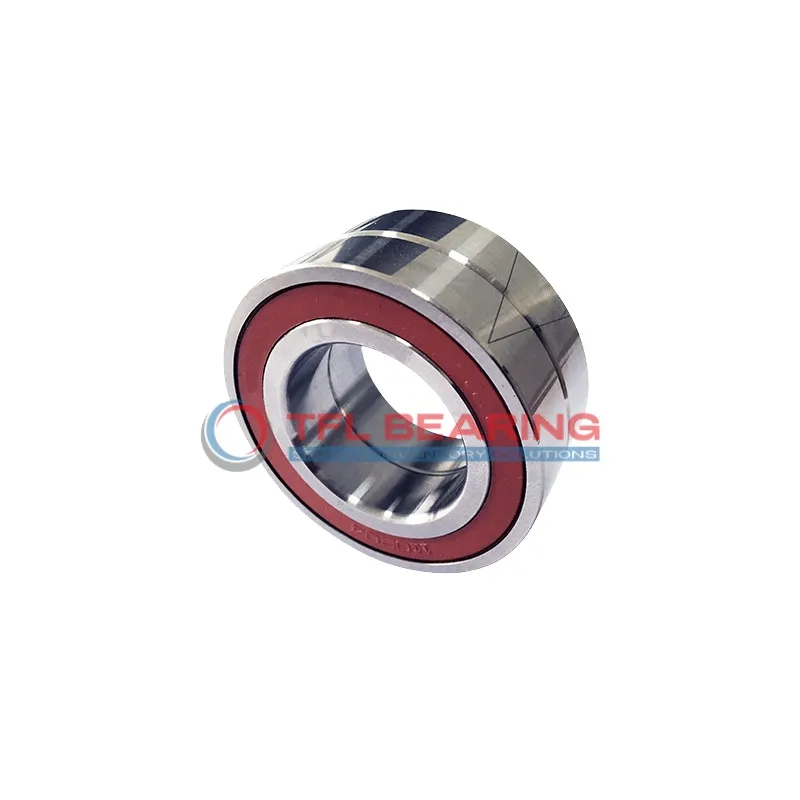

Single Row Angular Contact Ball Bearings (General) 7219 BECBP

Single Row Angular Contact Ball Bearings (General) 7219 BECBP

The 7219 BECBP is a single row angular contact ball bearing with a 95mm bore and 170mm outer diameter, designed for combined radial and thrust loads. Its 40° contact angle helps manage angular forces effectively, while the chrome steel construction ensures durability.

With a dynamic radial load capacity of 29025 lbf, it handles heavy-duty applications smoothly. The bearing operates at speeds up to 4800 RPM and works in temperatures from -30°C to 110°C, making it versatile for various conditions.

The open design allows easy lubrication, and the nylon cage reduces friction for quieter operation. Its P6 tolerance class (ABEC-3) ensures reliable precision in demanding setups.

Ideal for industrial machinery, pumps, or gearboxes where angular loads are present. Weighing 2.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7219 BECBP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 32 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 124.3 mm
  • External Diameter On Inner Ring (Small Side Face) 109.09 mm
  • Internal Diameter On Outer Ring 142.45 mm
  • Chamfer Dimension 2.1 mm
  • Distance Pressure Point (a) 72 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 29025 lbf
  • Static Radial Load 26550 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 2.7 kg
  • Price（$） 89.71
Single Row Angular Contact Ball Bearings (General) 7219 BECBP dimension drawing
Download DWG Download PDF

Features

Why Choose 7219 BECBP Bearing for Precision Tasks?

7219 BECBP Bearing features a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability, while the nylon cage reduces friction and noise.

With a dynamic radial load capacity of 29025 lbf, it performs reliably in demanding applications.
The P6 tolerance class (ABEC-3) guarantees precision, making it suitable for high-accuracy machinery.

Operating within -30° to 110 °C, 7219 BECBP Bearing maintains performance in varied temperatures.
Its open design allows easy lubrication, ensuring smooth operation and extended service life.

Application

Industrial Uses of 7219 BECBP Bearing
The 7219 BECBP Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The open design and nylon cage make it suitable for high-speed operations in industrial settings.

In automotive applications, 7219 BECBP Bearing is found in gearboxes and wheel hubs, providing reliable performance under angular loads. Its chrome steel construction ensures durability in demanding driving conditions.

For automation systems, 7219 BECBP Bearing supports robotic arms and precision machinery, thanks to its P6 tolerance class. The lubricated design reduces friction, enhancing operational smoothness.

In consumer electronics, 7219 BECBP Bearing can be used in high-end printers, where its stability and low noise are beneficial. The metric sizing ensures compatibility with various European and Asian equipment standards.
