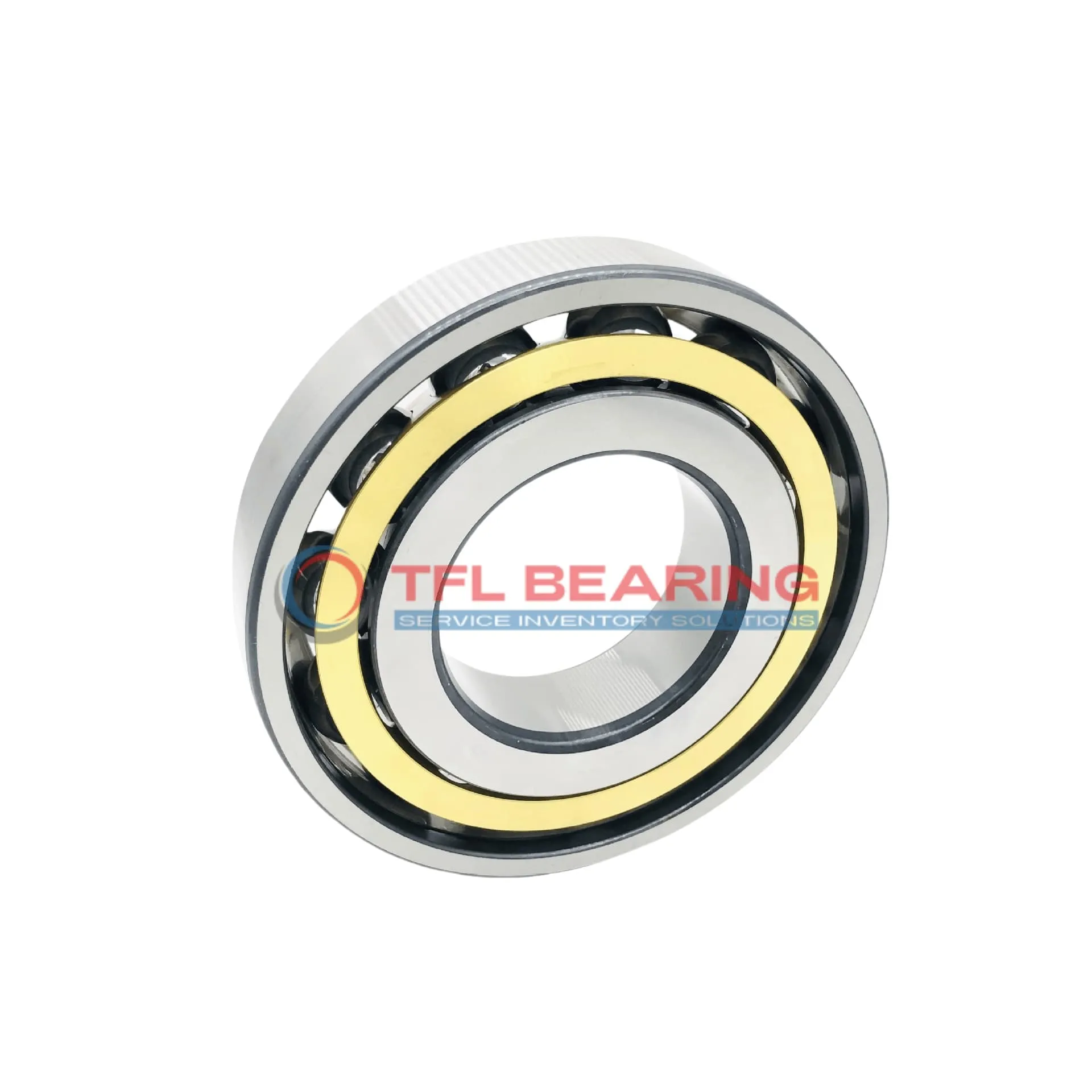

Single Row Angular Contact Ball Bearings (General) 7211 ACCBM

Brand: TFL Bearing Interchangeable: SKF 7211 ACCBM 55 mm × 100 mm × 21 mm Metric Open
Part number: 7211 ACCBM
Single Row Angular Contact Ball Bearings (General) 7211 ACCBM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia55 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia100 mm
Outer Dia Tolerance-0.013mm to 0
Width21 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)72.63 mm
External Diameter On Inner Ring (Small Side Face)63.6 mm
Internal Diameter On Outer Ring83.19 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load12,825 lbf
Static Radial Load10,125 lbf
Temperature Range-30° to 110 °C
Max Speed12,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle25°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)28 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.62 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7211 ACCBM is a single-row angular contact ball bearing with a 55mm bore and 100mm outer diameter, designed for combined radial and thrust loads. Its 25° contact angle helps manage angular forces smoothly, while the chrome steel construction ensures durability.

This bearing handles dynamic radial loads up to 12825 lbf and spins at speeds up to 12000 RPM. The brass cage reduces friction and wear, making it reliable for high-speed applications.

Its open design allows easy lubrication, and it operates well in temperatures from -30°C to 110°C. The P6 tolerance class ensures precise performance for demanding setups.

Ideal for machinery like pumps or gearboxes where angular loads are common. Weighing 0.62kg, it’s a sturdy yet manageable choice. Compliant with RoHS and REACH standards for safe industrial use.

Features

Why Choose 7211 ACCBM Bearing for Precision Tasks?

7211 ACCBM Bearing features a 25° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel rings and balls ensure durability, while the brass cage maintains smooth operation.

With a dynamic radial load capacity of 12825 lbf, it performs reliably in demanding applications.
The P6 tolerance class guarantees consistent accuracy, making it suitable for high-precision tasks.

Operating at speeds up to 12,000 rpm, 7211 ACCBM Bearing balances efficiency and performance.
Its open design allows for easy lubrication, extending service life and reducing maintenance needs.

Application

Industrial Uses of 7211 ACCBM Bearing
The 7211 ACCBM Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation even at higher speeds.

In automotive applications, 7211 ACCBM Bearing fits well in wheel hubs and transmissions, thanks to its 25° contact angle. Its P6 tolerance class provides the precision needed for reliable performance.

For robotics, 7211 ACCBM Bearing offers excellent stability in robotic arms and joints. The chrome steel construction ensures durability in repetitive motion scenarios.

Where Is 7211 ACCBM Bearing Used?
You’ll often find 7211 ACCBM Bearing in conveyor systems, where its ability to handle angular loads keeps operations running smoothly. The open design allows for easy lubrication.

In household appliances like washing machines, 7211 ACCBM Bearing reduces vibration and noise. Its metric sizing makes it a versatile choice for various brands.

Built for Heavy-Duty Use: 7211 ACCBM Bearing
The 7211 ACCBM Bearing is ideal for industrial fans, where its dynamic load capacity ensures long service life. The lubricated design minimises maintenance needs.

In agricultural machinery, 7211 ACCBM Bearing withstands harsh conditions while maintaining performance. The chrome steel rings resist wear from dust and moisture.

Automotive vs Aerospace: Applications of 7211 ACCBM Bearing
In cars, 7211 ACCBM Bearing supports drivetrain components with its balanced load capacity. The 12,000 rpm limit suits most automotive needs.

For aircraft auxiliary systems, 7211 ACCBM Bearing’s P6 precision ensures reliability. Its temperature range handles both ground and flight conditions.
