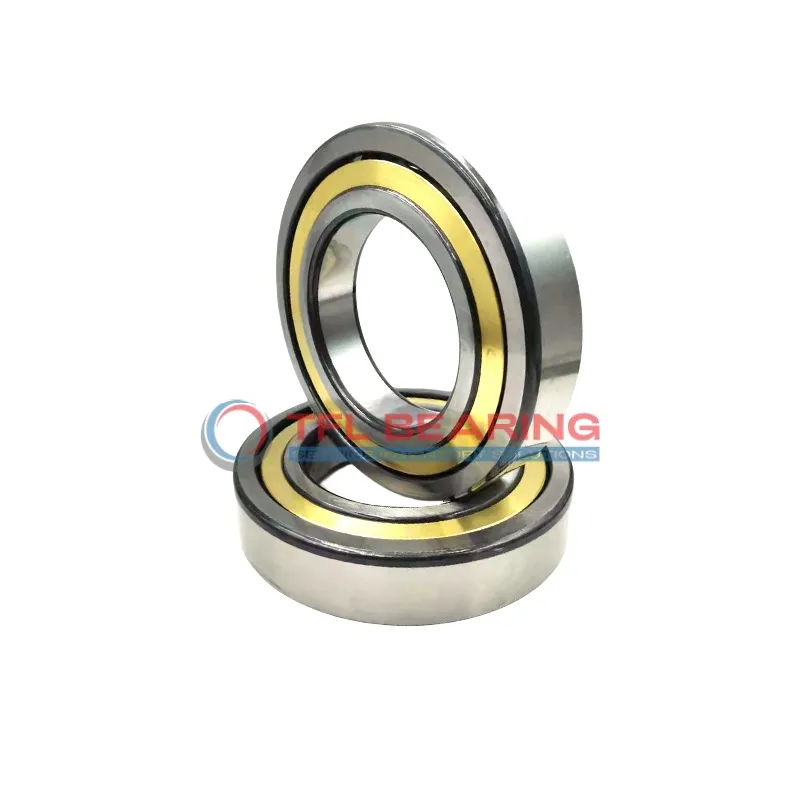

Single Row Angular Contact Ball Bearings (General) 7208 BEGBY

Single Row Angular Contact Ball Bearings (General) 7208 BEGBY

The 7208 BEGBY is a single-row angular contact ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 8212 lbf and operates smoothly at speeds up to 11000 RPM.

Its 40° contact angle efficiently manages combined loads, while the brass cage enhances durability. The open design allows easy lubrication, and it performs reliably between -30°C and 110°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact is needed.

Weighing 0.37kg, it balances strength and lightness. Compliant with RoHS and REACH standards for safety and environmental care.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7208 BEGBY
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 18 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 56.25 mm
  • External Diameter On Inner Ring (Small Side Face) 48.08 mm
  • Internal Diameter On Outer Ring 65.55 mm
  • Chamfer Dimension 1.1 mm
  • Distance Pressure Point (a) 34 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 8212 lbf
  • Static Radial Load 5850 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 0.37 kg
  • Price（$） 18.29
Single Row Angular Contact Ball Bearings (General) 7208 BEGBY dimension drawing
Download DWG Download PDF

Features

Performance Features of 7208 BEGBY Bearing

7208 BEGBY Bearing features a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability, while the brass cage maintains ball alignment for smooth operation.

With a dynamic radial load capacity of 8212 lbf, 7208 BEGBY Bearing performs reliably under heavy loads.
The P6 tolerance class ensures precision, making it suitable for high-speed applications up to 11,000 rpm.

7208 BEGBY Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, reducing maintenance needs and extending service life.

Application

Industrial Uses of 7208 BEGBY Bearing
7208 BEGBY Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even at high speeds up to 11,000 rpm.

Where Is 7208 BEGBY Bearing Used?
In automotive applications, 7208 BEGBY Bearing works well in gearboxes and wheel hubs due to its durable chrome steel construction. Its P6 tolerance class provides the precision needed for reliable performance.

Built for Heavy-Duty Use: 7208 BEGBY Bearing
7208 BEGBY Bearing excels in conveyor systems, supporting heavy loads with its dynamic radial load capacity of 8212 lbf. The open design allows for easy lubrication, extending service life in demanding environments.

Automotive vs Aerospace: Applications of 7208 BEGBY Bearing
In automotive systems, 7208 BEGBY Bearing handles angular loads in transmissions, while its aerospace applications include auxiliary equipment due to its lightweight brass cage. The temperature range of -30° to 110°C ensures versatility.

Perfect Fit for Automation: 7208 BEGBY Bearing
7208 BEGBY Bearing is ideal for robotic arms, where its precise P6 tolerance ensures accurate movement. The lubricated design reduces friction, making it suitable for continuous operation in automated lines.
