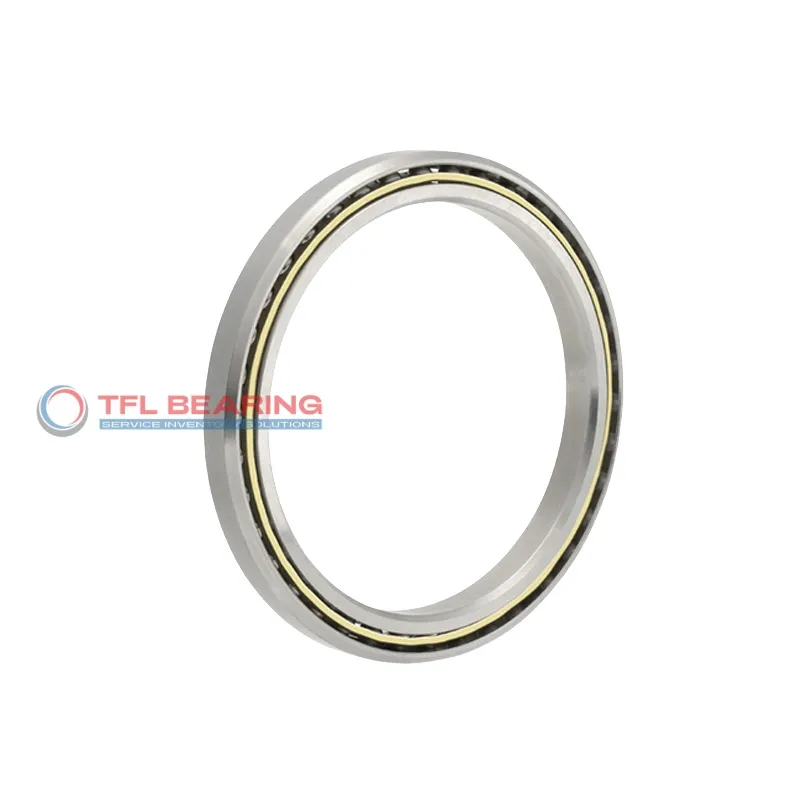

Constant Section (CS) Bearings S14003CS0

Constant Section (CS) Bearings S14003CS0

The S14003CS0 is an ultra-slim radial ball bearing with a 140mm bore and 146mm outer diameter, crafted entirely from stainless steel for durability. Its slim 2.5mm width makes it ideal for space-constrained applications while handling radial loads up to 236 lbf.

Designed as a single-row open bearing, it offers easy maintenance and smooth operation within a temperature range of -30°C to 110°C. The ABEC-1 tolerance ensures reliable performance for general precision needs.

This model is interchangeable with KAYDON bearings, providing a versatile replacement option. Perfect for lightweight machinery or instruments where a thin profile is essential.

Weighing just 21g, it combines strength with minimal weight. Compliant with RoHS standards, it’s a practical choice for eco-conscious applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S14003CS0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.013mm to 0
  • Outer Dia 146 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 2.5 mm
  • Width Tolerance +.000 –.127mm
  • Thin Section Bearings Type UltraSlim Bearings
  • Series 2.5 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 142.2 mm
  • Internal Diameter On Outer Ring (Small Side Face) 143.8 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 236 lbf
  • Static Radial Load 373 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 21.0 g
  • price（$） 442.67
Constant Section (CS) Bearings S14003CS0 dimension drawing
Download DWG Download PDF

Features

Performance Features of S14003CS0 Bearing

S14003CS0 Bearing is crafted with stainless steel rings and balls, offering reliable performance in radial load applications.
Its ultra-slim design at just 2.5 mm width makes it ideal for space-constrained installations.
The ABEC-1 tolerance ensures consistent precision, while the open seal type allows for easy lubrication.
With a dynamic radial load capacity of 236 lbf, it handles moderate loads efficiently.

How Does S14003CS0 Bearing Resist Wear?

S14003CS0 Bearing’s stainless steel construction provides excellent resistance to wear and corrosion.
The single-row ball design ensures smooth operation, even in demanding environments.
Its thin section reduces material usage without compromising strength or durability.
The bearing operates reliably within a temperature range of -30°C to 110°C.

Engineered for Precision: S14003CS0 Bearing

S14003CS0 Bearing features a precise bore diameter of 140 mm with tight tolerance control.
The stainless steel cage maintains ball alignment, enhancing performance and longevity.
Its lightweight design at just 21.0 g makes it suitable for applications where weight matters.
The bearing’s radial clearance is finely tuned for smooth and quiet operation.

Steel vs Ceramic Bearings: Strengths of S14003CS0 Bearing

S14003CS0 Bearing uses high-quality stainless steel for both rings and balls, ensuring durability.
This material choice provides a good balance between cost and performance for radial loads.
The bearing’s thin section design is optimised for applications requiring minimal space.
It meets RoHS compliance standards, making it an environmentally friendly choice.

Why Choose S14003CS0 Bearing for Precision Tasks?

S14003CS0 Bearing offers precise ABEC-1 tolerance for applications requiring accurate rotation.
Its ultra-thin 2.5 mm width profile fits perfectly in compact machinery designs.
The stainless steel construction resists corrosion while maintaining dimensional stability.
With a static radial load capacity of 373 lbf, it provides reliable performance.

Application

Essential Roles of S14003CS0 Bearing
S14003CS0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its slim profile and radial load capacity are beneficial. The stainless steel construction ensures durability in demanding environments.

Where Is S14003CS0 Bearing Used?
You’ll find S14003CS0 Bearing in medical imaging devices, where its thin section design allows for compact and lightweight equipment. Its ABEC-1 tolerance ensures smooth operation in sensitive applications.

Built for Heavy-Duty Use: S14003CS0 Bearing
S14003CS0 Bearing handles radial loads effectively in conveyor systems, making it a reliable choice for material handling. The open seal design simplifies maintenance, reducing downtime in busy facilities.

Automotive vs Aerospace: Applications of S14003CS0 Bearing
In automotive applications, S14003CS0 Bearing fits well in steering systems due to its precise radial load handling. For aerospace, its lightweight design is ideal for instrumentation where space and weight are critical.

Perfect Fit for Automation: S14003CS0 Bearing
S14003CS0 Bearing works seamlessly in 3D printers, providing smooth motion control with its ultra-slim profile. The stainless steel materials resist wear, ensuring long-term performance in continuous operation.
