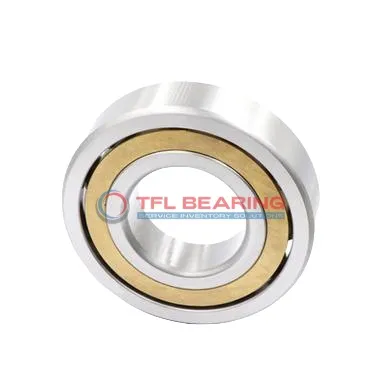

Single Row Angular Contact Ball Bearings (General) 719/600 ACM

Brand: TFL Bearing Interchangeable: SKF 719/600 ACM 600 mm × 800 mm × 90 mm Metric Open
Part number: 719/600 ACM
Single Row Angular Contact Ball Bearings (General) 719/600 ACM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia600 mm
Bore Dia Tolerance-0.04mm to 0
Outer Dia800 mm
Outer Dia Tolerance-0.045mm to 0
Width90 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)666 mm
Internal Diameter On Outer Ring737 mm
Chamfer Dimension5 mm
Performance
Dynamic Radial Load160,875 lbf
Static Radial Load389,250 lbf
Temperature Range-30° to 110 °C
Max Speed800 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)208 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight125 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 719/600 ACM is a single-row angular contact ball bearing with a 600mm bore and 800mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 160,875 lbf and operates at speeds up to 800 RPM.

Its 40° contact angle efficiently manages combined loads, while the brass cage ensures smooth rotation and durability. The open design allows for easy lubrication and maintenance.

This bearing is suitable for heavy-duty applications like industrial gearboxes or large machinery where angular contact is needed. It works well in temperatures from -30°C to 110°C.

Weighing 125kg, it’s built for robust performance. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for convenient replacements.

Features

Performance Features of 719/600 ACM Bearing

719/600 ACM Bearing is built with a 40° contact angle, optimising its ability to handle combined radial and axial loads.
The chrome steel rings and balls enhance durability, while the brass cage ensures smooth operation.

With a dynamic radial load capacity of 160,875 lbf, it performs reliably in heavy-duty applications.
Its P6 tolerance class (ABEC-3) guarantees precision, making it suitable for high-accuracy machinery.

The open design allows for easy lubrication, maintaining performance across a temperature range of -30° to 110°C.
Weighing 125 kg, it’s designed for robust industrial use while maintaining efficiency.

Application

Industrial Uses of 719/600 ACM Bearing
719/600 ACM Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its angular contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

What Makes 719/600 ACM Bearing a Preferred Choice?
In wind turbine applications, 719/600 ACM Bearing’s robust construction and P6 tolerance class provide reliable performance in demanding conditions. Its chrome steel rings and balls offer excellent durability for long-term use.

Built for Heavy-Duty Use: 719/600 ACM Bearing
719/600 ACM Bearing excels in mining equipment, where its large size and high load capacity are essential. The lubricated design helps maintain performance in harsh environments with minimal maintenance.

Automotive vs Aerospace: Applications of 719/600 ACM Bearing
While 719/600 ACM Bearing is too large for most automotive uses, it’s ideal for aerospace applications like helicopter rotor systems, where precision and load handling are critical. The 40° contact angle ensures optimal force distribution.

Practical Applications of 719/600 ACM Bearing
719/600 ACM Bearing is often found in paper mill machinery, where its ability to handle high radial loads keeps production lines running smoothly. The open seal type allows for easy inspection and relubrication.
