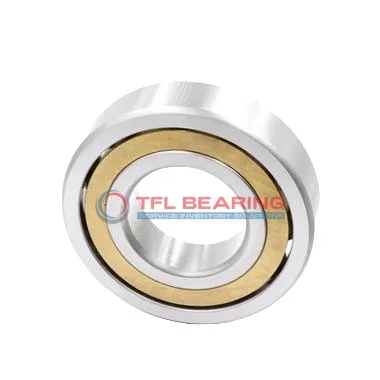

Single Row Angular Contact Ball Bearings (General) 708/600 AGMB

Single Row Angular Contact Ball Bearings (General) 708/600 AGMB

The 708/600 AGMB is a single-row angular contact ball bearing with a 600mm bore and 730mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 76050 lbf and operates smoothly at speeds up to 850 RPM.

With a 40° contact angle, it efficiently manages combined radial and axial loads. The brass cage enhances durability, while the open design allows for easy lubrication.

This bearing is suitable for heavy-duty applications like industrial gearboxes or large machinery. Its P6 tolerance class ensures reliable performance under demanding conditions.

Weighing 38.5kg, it’s built for robust use in temperatures ranging from -30°C to 110°C. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 708/600 AGMB
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 600 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 730 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 42 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 643.55 mm
  • Internal Diameter On Outer Ring 676.9 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 212 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 76050 lbf
  • Static Radial Load 165375 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 850 rpm
  • Weight 38.5 kg
Single Row Angular Contact Ball Bearings (General) 708/600 AGMB dimension drawing
Download DWG Download PDF

Features

Performance Features of 708/600 AGMB Bearing

708/600 AGMB Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.

With a dynamic radial load capacity of 76,050 lbf, it performs reliably in heavy-duty applications.
The P6 tolerance class (ABEC-3) ensures precision, making it suitable for demanding industrial uses.

Designed for a temperature range of -30° to 110°C, 708/600 AGMB Bearing maintains performance in varied conditions.
Its open design allows for easy lubrication, enhancing longevity and reducing maintenance needs.

Application

Industrial Uses of 708/600 AGMB Bearing
The 708/600 AGMB Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its angular contact design handles combined radial and axial loads effectively. Its brass cage ensures smooth operation even under high stress.

Where Is 708/600 AGMB Bearing Used?
You’ll often find 708/600 AGMB Bearing in wind turbine gearboxes, where its 40° contact angle provides stability against varying loads. The chrome steel construction offers durability in harsh outdoor conditions.

Built for Heavy-Duty Use: 708/600 AGMB Bearing
This bearing excels in mining equipment, supporting massive loads in crushers and conveyors. Its P6 tolerance class ensures reliable performance in precision-demanding applications.

Automotive vs Aerospace: Applications of 708/600 AGMB Bearing
In automotive testing rigs, 708/600 AGMB Bearing handles high-speed angular loads, while in aerospace, it’s used in landing gear mechanisms for its load capacity. The lubricated design extends service life in both fields.

Practical Applications of 708/600 AGMB Bearing
For robotics, 708/600 AGMB Bearing provides precise motion control in robotic arms due to its angular contact design. The 600mm bore size makes it suitable for large-scale automation systems.
