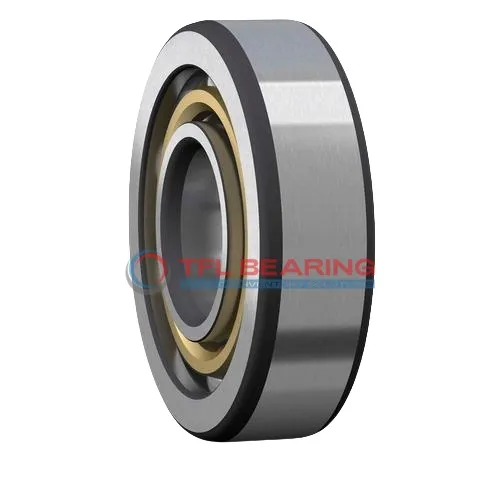

Single Row Angular Contact Ball Bearings (General) 71892 AGMB

Single Row Angular Contact Ball Bearings (General) 71892 AGMB

The 71892 AGMB is a single-row angular contact ball bearing with a 460mm bore and 580mm outer diameter, designed for angular loads. Its 30° contact angle efficiently handles combined radial and thrust loads, supporting up to 83475 lbf dynamically.

Made from chrome steel with a brass cage, it offers durability and smooth operation at speeds up to 1100 RPM. The open design allows easy lubrication, and it performs reliably in temperatures from -30°C to 110°C.

With a P6 tolerance class, this bearing ensures precision in demanding applications. It’s interchangeable with SKF models, making replacements straightforward. Ideal for heavy machinery or industrial equipment where high radial loads are common.

Weighing 35kg, it’s built for robust performance in challenging environments. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 71892 AGMB
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 30°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 460 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 580 mm
  • Outer Dia Tolerance -0.038mm to 0
  • Width 56 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 498 mm
  • Internal Diameter On Outer Ring 540.27 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 178 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 83475 lbf
  • Static Radial Load 172125 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 1100 rpm
  • Weight 35 kg
Single Row Angular Contact Ball Bearings (General) 71892 AGMB dimension drawing
Download DWG Download PDF

Features

Performance Features of 71892 AGMB Bearing

71892 AGMB Bearing is built with a 30° contact angle, optimising its ability to handle angular contact loads.
The chrome steel rings and balls provide strong resistance to both dynamic and static radial loads.

Its brass cage ensures smooth operation, even at speeds up to 1,100 rpm.
The P6 tolerance class guarantees precision, making it suitable for high-accuracy applications.

With a wide temperature range of -30° to 110°C, 71892 AGMB Bearing performs reliably in various conditions.
Its open design simplifies lubrication, reducing maintenance needs.

The large bore diameter of 460 mm accommodates substantial shaft sizes.
This design, combined with its robust construction, ensures durability in heavy-duty operations.

Application

Industrial Uses of 71892 AGMB Bearing
71892 AGMB Bearing is commonly used in large industrial machinery, such as heavy-duty gearboxes and large pumps, where its angular contact design handles combined radial and axial loads effectively. The brass cage ensures smooth operation even under high stress.

Where Is 71892 AGMB Bearing Used?
You’ll find 71892 AGMB Bearing in wind turbine systems, where its high load capacity and precision tolerances support reliable performance. The chrome steel construction also makes it suitable for harsh outdoor conditions.

Built for Heavy-Duty Use: 71892 AGMB Bearing
71892 AGMB Bearing excels in applications like mining equipment, where durability and load-bearing capacity are critical. Its P6 tolerance class ensures consistent performance in demanding environments.

Automotive vs Aerospace: Applications of 71892 AGMB Bearing
In automotive settings, 71892 AGMB Bearing is used in large drivetrain components, while in aerospace, it supports auxiliary systems requiring high precision. The metric sizing makes it versatile for various industries.

Practical Applications of 71892 AGMB Bearing
For automation systems, 71892 AGMB Bearing is ideal for robotic arms and large-scale conveyor belts, thanks to its angular contact design. The lubricated construction reduces maintenance needs over time.
