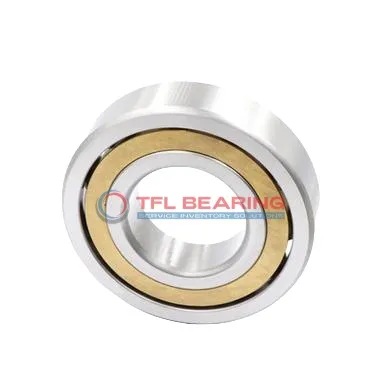

Single Row Angular Contact Ball Bearings (General) 718/500 AGMB

Brand: TFL Bearing Interchangeable: SKF 718/500 AGMB 500 mm × 620 mm × 56 mm Metric Open
Part number: 718/500 AGMB
Single Row Angular Contact Ball Bearings (General) 718/500 AGMB
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia500 mm
Bore Dia Tolerance-0.035mm to 0
Outer Dia620 mm
Outer Dia Tolerance-0.038mm to 0
Width56 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)539.9 mm
Internal Diameter On Outer Ring580.2 mm
Chamfer Dimension3 mm
Performance
Dynamic Radial Load87,750 lbf
Static Radial Load191,250 lbf
Temperature Range-30° to 110 °C
Max Speed1,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle30°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)190 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight38 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 718/500 AGMB is a single-row angular contact ball bearing with a 500mm bore and 620mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 87750 lbf and operates smoothly at speeds up to 1000 RPM.

With a 30° contact angle, it efficiently manages combined radial and axial loads. The brass cage enhances durability, while the open design simplifies lubrication and maintenance.

This bearing is suitable for temperatures ranging from -30°C to 110°C and meets P6 (ABEC-3) tolerance standards. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing 38kg, it’s designed for heavy-duty applications like industrial gearboxes or large machinery. Compliant with RoHS and REACH regulations for safe use.

Features

Performance Features of 718/500 AGMB Bearing

718/500 AGMB Bearing is built with a 30° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.

With a dynamic radial load capacity of 87,750 lbf, it performs reliably in heavy-duty applications.
The P6 tolerance class guarantees precision, making it suitable for high-accuracy machinery.

Designed for temperatures from -30° to 110°C, 718/500 AGMB Bearing adapts to various working conditions.
Its open design allows easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 718/500 AGMB Bearing
718/500 AGMB Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its angular contact design efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even under high stress.

Where Is 718/500 AGMB Bearing Used?
You’ll often find 718/500 AGMB Bearing in wind turbine gearboxes, where its 30° contact angle provides stability under varying loads. Its P6 tolerance class makes it suitable for precision applications requiring consistent performance.

Built for Heavy-Duty Use: 718/500 AGMB Bearing
718/500 AGMB Bearing excels in applications like rolling mills, where its chrome steel construction withstands extreme pressures. The lubricated design helps maintain performance over long operational periods.

Automotive vs Aerospace: Applications of 718/500 AGMB Bearing
In automotive systems, 718/500 AGMB Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary equipment due to its high load capacity. The metric sizing ensures compatibility across industries.

Practical Applications of 718/500 AGMB Bearing
For automation systems, 718/500 AGMB Bearing is ideal for rotary tables and large robotic arms, offering precise movement. Its open seal type allows for easy lubrication and maintenance.
