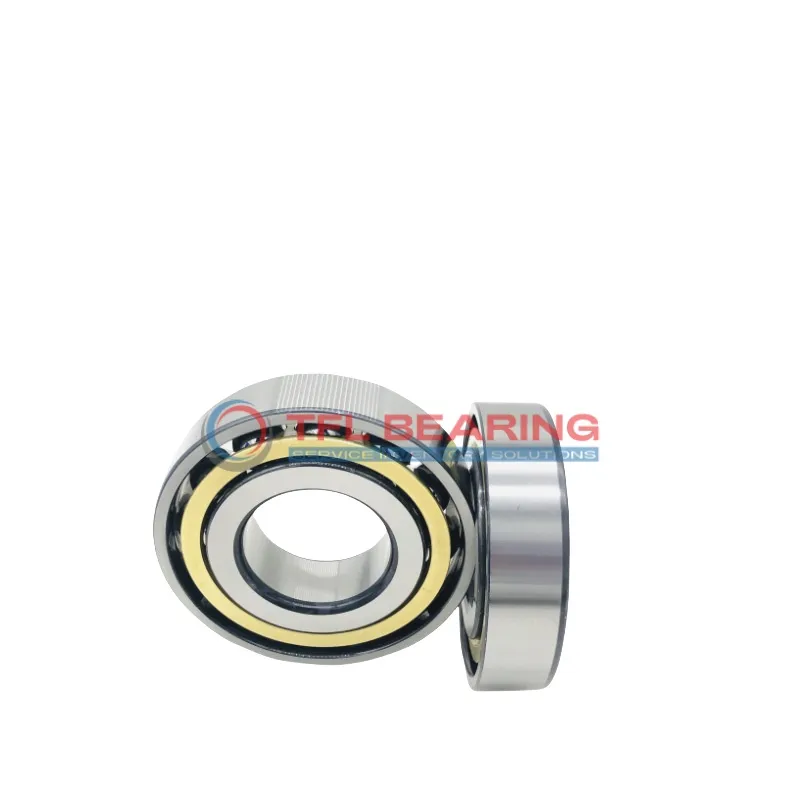

Single Row Angular Contact Ball Bearings (General) 708/1250 AMB

Brand: TFL Bearing Interchangeable: SKF 708/1250 AMB 1250 mm × 1500 mm × 80 mm Metric Open
Part number: 708/1250 AMB
Single Row Angular Contact Ball Bearings (General) 708/1250 AMB
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia1,250 mm
Bore Dia Tolerance-0.075mm to 0
Outer Dia1,500 mm
Outer Dia Tolerance-0.09mm to 0
Width80 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)1,341 mm
Internal Diameter On Outer Ring1,412 mm
Chamfer Dimension6 mm
Performance
Dynamic Radial Load181,350 lbf
Static Radial Load607,500 lbf
Temperature Range-30° to 110 °C
Max Speed300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)437 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight295 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 708/1250 AMB is a single-row angular contact ball bearing with a large 1250mm bore and 1500mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 181350 lbf and operates at speeds up to 300 RPM.

With a 40° contact angle, it efficiently manages combined radial and axial loads. The brass cage ensures smooth rotation and durability, while the open design allows for easy lubrication.

This bearing is suitable for heavy-duty applications like large industrial machinery or wind turbines, where high load capacity is essential. It works reliably in temperatures from -30°C to 110°C.

Weighing 295kg, it’s built for robust performance. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for convenient replacements.

Features

Performance Features of 708/1250 AMB Bearing

708/1250 AMB Bearing is built with a 40° contact angle, ideal for handling both radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.

With a dynamic radial load capacity of 181350 lbf, it performs reliably in heavy-duty applications.
The bearing’s P6 tolerance class guarantees precision, making it suitable for demanding tasks.

Designed for low-speed operations, 708/1250 AMB Bearing supports a maximum speed of 300 rpm.
Its open seal type allows for easy lubrication, ensuring consistent performance.

The bearing operates efficiently within a temperature range of -30° to 110°C.
Its robust construction and materials ensure durability in various industrial environments.

Application

Industrial Uses of 708/1250 AMB Bearing
The 708/1250 AMB Bearing is commonly used in large industrial machinery, such as heavy-duty presses and rolling mills, where its high load capacity and angular contact design are essential. Its brass cage ensures smooth operation even under significant radial loads.

Where Is 708/1250 AMB Bearing Used?
You’ll often find the 708/1250 AMB Bearing in wind turbine gearboxes, where its ability to handle both radial and axial loads is crucial. The chrome steel construction provides long-lasting performance in demanding environments.

Built for Heavy-Duty Use: 708/1250 AMB Bearing
The 708/1250 AMB Bearing excels in applications like mining equipment, where its large size and robust design can withstand extreme conditions. The P6 tolerance class ensures precision even in high-stress scenarios.

Automotive vs Aerospace: Applications of 708/1250 AMB Bearing
In automotive testing rigs, the 708/1250 AMB Bearing supports heavy rotating components, while in aerospace, it’s used for large-scale simulation equipment. Its lubricated design helps maintain performance over long periods.

Practical Applications of 708/1250 AMB Bearing
For large-scale automation systems, the 708/1250 AMB Bearing provides reliable angular contact support, ensuring smooth movement in robotic arms. Its metric sizing makes it compatible with a wide range of industrial equipment.
