Single Row Angular Contact Ball Bearings (General) 7034 BGM

Single Row Angular Contact Ball Bearings (General) 7034 BGM

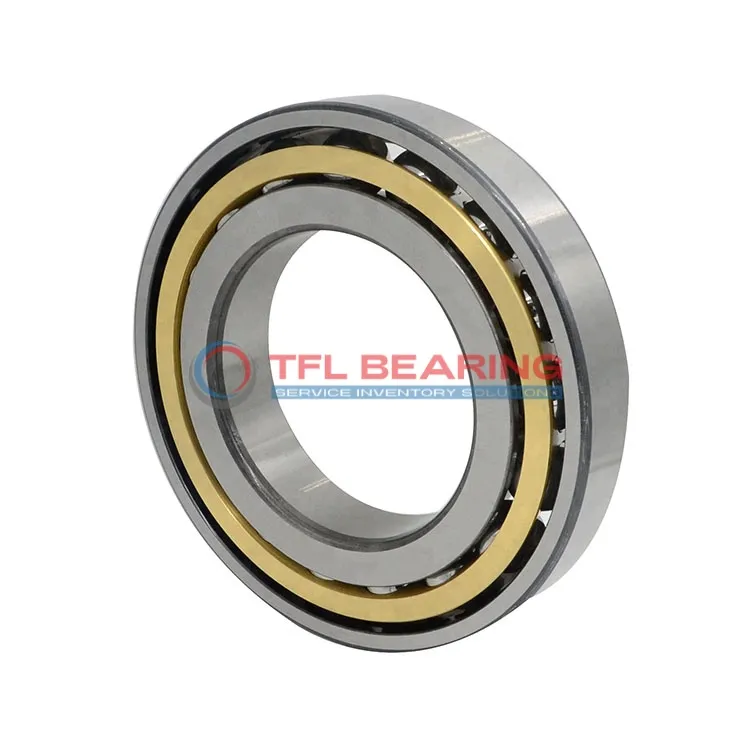

The 7034 BGM is a single-row angular contact ball bearing with a 170mm bore and 260mm outer diameter, measuring 42mm wide. Made from chrome steel with a brass cage, it’s built to handle heavy radial loads up to 38700 lbf.

With a 40° contact angle, it manages combined loads efficiently and spins smoothly at speeds up to 2800 RPM. Its open design allows for easy lubrication, extending its service life.

The bearing operates well in temperatures from -30°C to 110°C and meets P6 tolerance standards for precision. Ideal for industrial machinery like pumps or gearboxes where angular loads are common.

Weighing 7.65kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH regulations, it’s a reliable choice for replacements, interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7034 BGM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 170 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 42 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 205.5 mm
  • External Diameter On Inner Ring (Small Side Face) 189.75 mm
  • Internal Diameter On Outer Ring 226.75 mm
  • Chamfer Dimension 2.1 mm
  • Distance Pressure Point (a) 111 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 38700 lbf
  • Static Radial Load 45900 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 2800 rpm
  • Weight 7.65 kg
Single Row Angular Contact Ball Bearings (General) 7034 BGM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7034 BGM Bearing

7034 BGM Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The brass cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a dynamic radial load capacity of 38,700 lbf, it performs reliably under heavy loads.

7034 BGM Bearing operates efficiently within a temperature range of -30° to 110°C.
Its P6 tolerance class (ABEC-3) ensures precision and consistency in performance.

Application

Key Fields for 7034 BGM Bearing
The 7034 BGM Bearing is commonly used in industrial machinery, especially where high radial and axial loads are present, such as in heavy-duty pumps and compressors. Its brass cage and chrome steel construction ensure durability in demanding environments.

In automotive applications, 7034 BGM Bearing is often found in wheel hubs and gearboxes, where its 40° contact angle helps manage combined loads effectively. The P6 tolerance class ensures reliable performance in precision automotive systems.

For automation equipment, 7034 BGM Bearing supports robotic arms and conveyor systems, providing smooth operation under varying loads. Its open design allows for easy lubrication, extending service life in continuous-use scenarios.

Medical imaging devices benefit from 7034 BGM Bearing’s precise movement and low noise characteristics. The chrome steel rings and brass cage offer a balance of strength and corrosion resistance for sensitive medical environments.
