Self Aligning Ball Bearings 2318 KM/C3

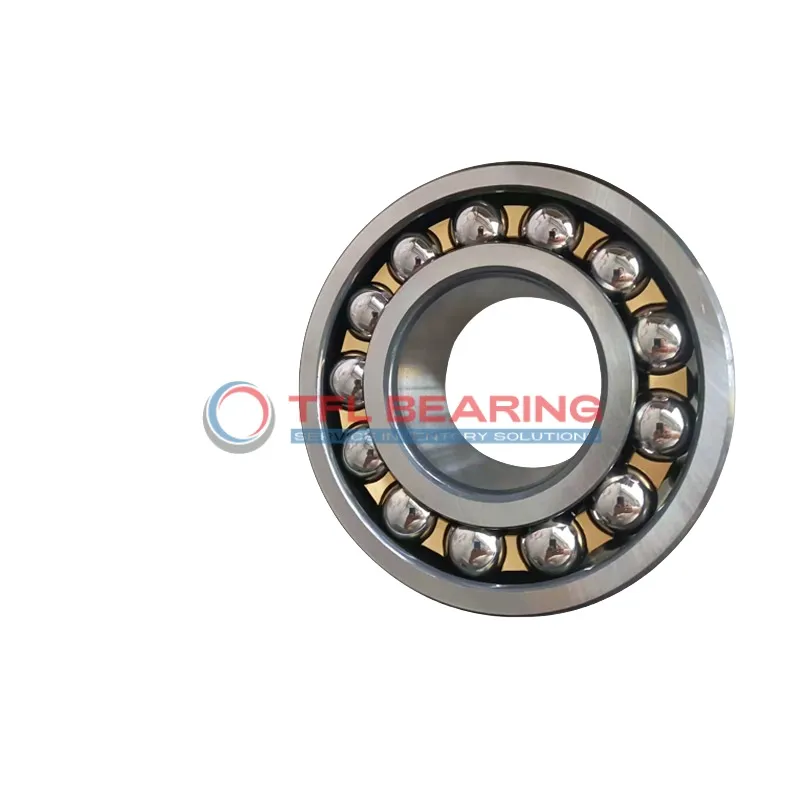

Self Aligning Ball Bearings 2318 KM/C3

The 2318 KM/C3 is a self-aligning ball bearing with a 90mm bore and 190mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 33975 lbf and operates smoothly at speeds up to 4500 RPM.

Its double-row design and brass cage provide reliable performance, while the C3 radial clearance allows for thermal expansion. The open seal type makes lubrication straightforward.

This bearing is interchangeable with SKF models, ideal for applications like conveyor systems or heavy machinery where misalignment might occur. It works in temperatures from -30°C to 110°C.

Weighing 8.2kg, it’s a robust choice for industrial settings. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2318 KM/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 64 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 121 mm
  • Internal Diameter On Outer Ring 162.2 mm
  • Chamfer Dimension 3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 33975 lbf
  • Static Radial Load 12825 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4500 rpm
  • Weight 8.2 kg
Self Aligning Ball Bearings 2318 KM/C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2318 KM/C3 Bearing for Precision Tasks?

2318 KM/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 33975 lbf makes it suitable for heavy-duty applications.

The brass cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 4,500 rpm, it offers reliable performance in various conditions.

2318 KM/C3 Bearing’s C3 radial clearance allows for thermal expansion, ensuring smooth operation.
Its tapered bore design simplifies installation and improves alignment accuracy.

Application

Industrial Uses of 2318 KM/C3 Bearing
2318 KM/C3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable radial load support in demanding environments.

What Makes 2318 KM/C3 Bearing a Preferred Choice?
With its brass cage and chrome steel construction, 2318 KM/C3 Bearing offers durability in applications like gearboxes and electric motors. The C3 radial clearance allows for thermal expansion, making it suitable for high-temperature operations.

Perfect Fit for Automation: 2318 KM/C3 Bearing
In robotic arms and automated production lines, 2318 KM/C3 Bearing provides smooth rotation and reduces maintenance needs. Its tapered bore ensures a secure fit, preventing slippage during high-speed operations.

Automotive vs Aerospace: Applications of 2318 KM/C3 Bearing
In automotive systems, 2318 KM/C3 Bearing handles radial loads in wheel hubs and transmissions. For aerospace, its precision and reliability make it ideal for auxiliary equipment like hydraulic pumps.

Where Is 2318 KM/C3 Bearing Used?
You’ll find 2318 KM/C3 Bearing in wind turbines and mining equipment, where its robust design withstands harsh conditions. The open seal type allows for easy lubrication, extending service life.
