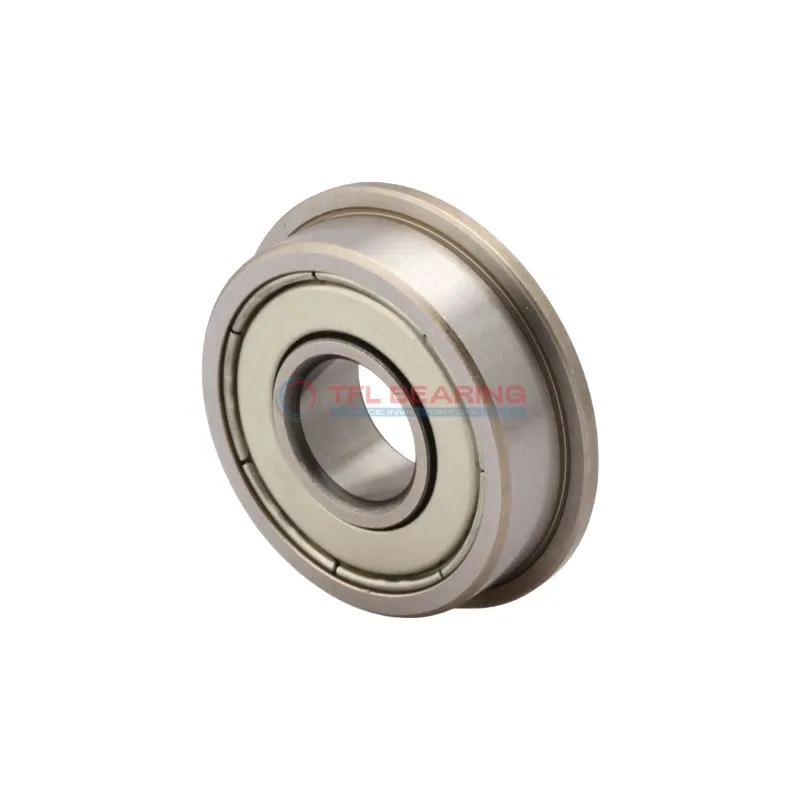

Metric Size Miniature Flanged Ball Bearings F695zz

Metric Size Miniature Flanged Ball Bearings F695zz

The F695zz is a small, shielded ball bearing with a 5mm bore and 13mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 206 lbf and spins smoothly at speeds up to 43,000 RPM.

Its stainless steel shields protect against dust while keeping lubrication in place, making it low-maintenance. The bearing operates well in temperatures from -30°C to 110°C.

With a lightweight design at just 2.65g, it’s ideal for compact applications like small motors or precision instruments. Compliant with RoHS and REACH standards, it’s a reliable choice for everyday use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F695zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 13 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 15 mm
  • Flange Thickness 1 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 8
  • Ball Dia 2.0000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 206 lbf
  • Static Radial Load 78 lbf
  • Max Speed 43000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.65 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 1.35
Metric Size Miniature Flanged Ball Bearings F695zz dimension drawing
Download DWG Download PDF

Features

How Does F695zz Bearing Reduce Friction?

F695zz Bearing features a shielded design with stainless steel shields, protecting against dust and debris.
Its chrome steel construction ensures smooth operation, reducing friction during high-speed rotation.
With a maximum speed of 43,000 rpm, it delivers reliable performance in precision applications.
The ABEC1 tolerance class guarantees consistent quality and minimal vibration.

Application

Common Applications of F695zz Bearing
F695zz Bearing is widely used in small electric motors, such as those found in cooling fans and power tools, due to its compact size and shielded design. The stainless steel cage ensures smooth rotation even at high speeds.

In consumer electronics like printers and disk drives, F695zz Bearing provides reliable performance with minimal maintenance. Its ABEC1 tolerance makes it suitable for applications where precision isn’t critical but consistency is key.

For light-duty automation equipment, such as small robotic arms or 3D printers, F695zz Bearing offers a balance of durability and affordability. The chrome steel construction helps it withstand moderate loads without compromising speed.

Where Is F695zz Bearing Used?
You’ll often find F695zz Bearing in household appliances like blenders or hairdryers, where its small form factor and shielded seals keep dust out. The 43000 rpm max speed ensures it handles fast rotations effortlessly.

Medical devices like dental tools or small pumps benefit from F695zz Bearing’s quiet operation and resistance to wear. The metric sizing makes it easy to integrate into various equipment designs.

Built for Versatility: F695zz Bearing
F695zz Bearing works well in hobbyist projects, such as RC cars or drones, thanks to its lightweight and reliable performance. The stainless steel shields protect against debris without adding friction.

In office equipment like scanners or copiers, F695zz Bearing’s smooth operation reduces noise and extends device lifespan. Its 5mm bore size fits neatly into compact mechanisms.
