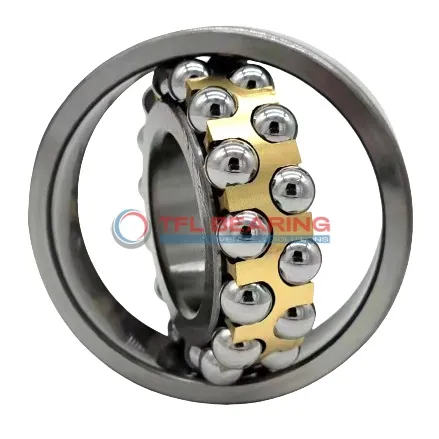

Self Aligning Ball Bearings 2317 M C/3

Brand: TFL Bearing Interchangeable: SKF 2317 M C/3 85 mm × 180 mm × 60 mm Metric Open
Part number: 2317 M C/3
Self Aligning Ball Bearings 2317 M C/3
In Stock
US$683.30 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia85 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia180 mm
Outer Dia Tolerance-0.025mm to 0
Width60 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring115 mm
Internal Diameter On Outer Ring153.5 mm
Chamfer Dimension3 mm
Performance
Dynamic Radial Load31,500 lbf
Static Radial Load11,475 lbf
Temperature Range-30° to 110 °C
Max Speed4,800 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight7.05 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2317 M C/3 is a self-aligning ball bearing with an 85mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 31500 lbf and operates smoothly at speeds up to 4800 RPM.

Its double-row design and open seal allow for easy lubrication and maintenance, while the brass cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like conveyor systems or industrial fans where misalignment might occur.

Weighing 7.05kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

How Is 2317 M C/3 Bearing Engineered for Reliability?

2317 M C/3 Bearing features a double-row design with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 31500 lbf, ensuring dependable performance in various applications.

The brass cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 4,800 rpm, it delivers consistent performance under stress.

2317 M C/3 Bearing operates smoothly in temperatures from -30° to 110°C, adapting to diverse environments.
Its open seal design allows for easy lubrication, extending maintenance intervals.

Application

Industrial Uses of 2317 M C/3 Bearing
2317 M C/3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stability under radial loads, making it suitable for continuous operation.

Where Is 2317 M C/3 Bearing Used?
In automotive applications, 2317 M C/3 Bearing can be found in gearboxes and drivetrains, handling radial loads efficiently. Its brass cage reduces friction, contributing to smoother performance in high-speed scenarios.

Built for Heavy-Duty Use: 2317 M C/3 Bearing
For automation equipment, 2317 M C/3 Bearing supports robotic arms and assembly lines, where precision and durability are key. The chrome steel construction ensures long-lasting performance even in demanding environments.

Light-Duty vs Heavy-Duty: Best Uses for 2317 M C/3 Bearing
In consumer electronics like printers, 2317 M C/3 Bearing provides reliable motion control with minimal maintenance. Its lubricated design keeps it running quietly, ideal for household appliances.
